- RS Stock No.:
- 267-5598
- Mfr. Part No.:
- HD67602-232-A1
- Brand:
- Wachendorff
1 In stock for delivery within 1 working days
Not available for guaranteed pre 9am/10am delivery
Added
Price Each
£357.45
(exc. VAT)
£428.94
(inc. VAT)
Units | Per unit |
1 + | £357.45 |
- RS Stock No.:
- 267-5598
- Mfr. Part No.:
- HD67602-232-A1
- Brand:
- Wachendorff
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- IT
Product Details

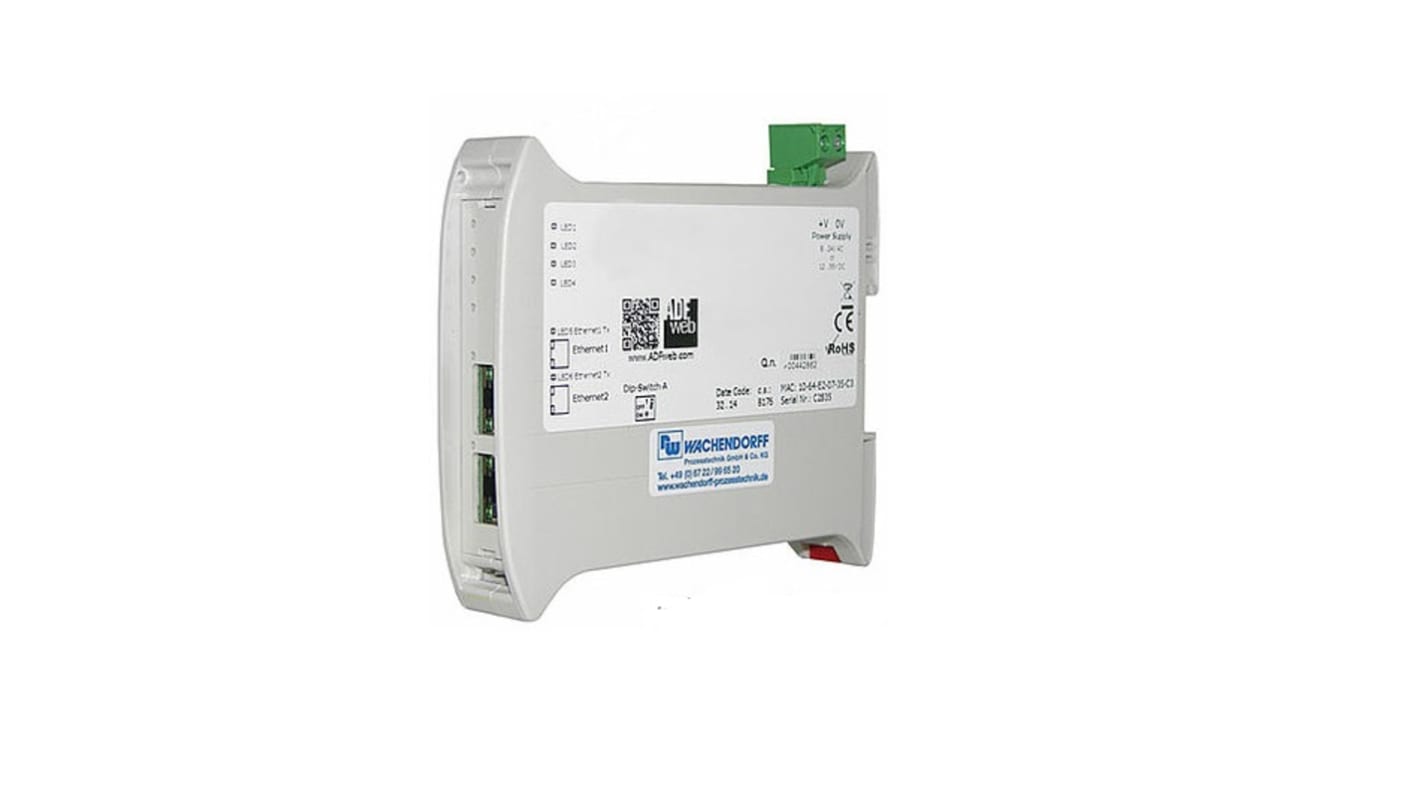

The Wachendorff configurable gateway enables bidirectional communication between a PROFINET network and a Modbus RTU slave. One or more Modbus slaves can provide registers for a PROFINET master. You assign bytes to the Modbus registers in the PROFINET read and write up to 512 bytes. The transfer of the configuration of the gateway via software via the Ethernet port is very easy and quick. The DIN rail mounting and the removable screw terminals ensure quick and safe installation as well as problem-free wiring of the device.
Configurable gateway for free variable management
High temperature range from -40 °C to +85 °C
Two ethernet ports
Galvanic isolation between modbus or supply,
Supply or Ethernet and Ethernet or Modbus
High temperature range from -40 °C to +85 °C
Two ethernet ports
Galvanic isolation between modbus or supply,
Supply or Ethernet and Ethernet or Modbus
Specifications
Attribute | Value |
---|---|
Accessory Type | GateWay Unit |
Range | Gateway |
Series | HD67xxx |
Input Type | Digital |
Output Type | Digital |
For Use With | PROFINET and Modbus RTU |
Dimensions | 23 x 107 x 120 mm |
