Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Colour | Brown | |
| Length | 300mm | |
| Material | PAI | |
| Form | Rod | |
| Rod Diameter | 12.7mm | |
| Density | 1.42g/cm³ | |
| Tensile Strength | 192 MPa | |
| Flammability Rating | UL 94 V-0 | |
| Maximum Operating Temperature | +260°C | |
| Hardness | E 86 Rockwell | |
| Elongation | 15% | |
| Water Absorption | 5.5% | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Colour Brown | ||
Length 300mm | ||
Material PAI | ||
Form Rod | ||
Rod Diameter 12.7mm | ||
Density 1.42g/cm³ | ||
Tensile Strength 192 MPa | ||
Flammability Rating UL 94 V-0 | ||
Maximum Operating Temperature +260°C | ||
Hardness E 86 Rockwell | ||
Elongation 15% | ||
Water Absorption 5.5% | ||
Torlon® 4203 - Electrical Grade
Superior performance in electrical insulation and structural applications. Existing uses include components such as connectors, switches, relays, ball bearings and rollers.

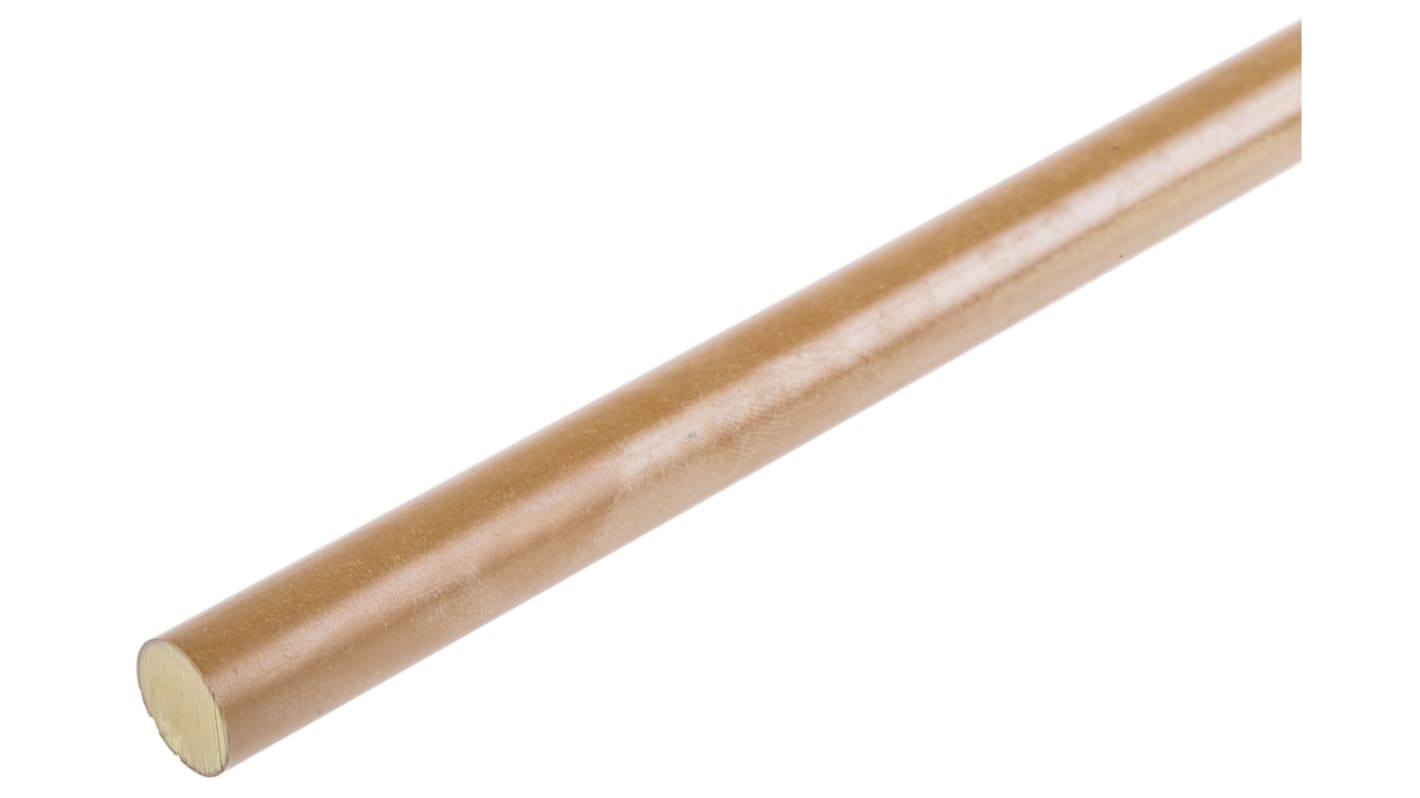

Polyamide-imide (PAI) Rod
Dark brown colour
High UV resistance
Supplied in lengths of 300mm
Dark brown colour
High UV resistance
Supplied in lengths of 300mm
Torlon Rod
Provides better compressive strength and higher impact resistance than most high performance plastics. Extremely low coefficient of thermal expansion and high creep resistance.,Environmental: Torlon is unaffected by strong acids (pH<3), but ultra violet light and strong alkalis will cause dimensional change. Steam at 160° will cause decomposition.
High abrasion resistance
Good chemical and radiation resistance
Impact resistant and easily machineable
Good chemical and radiation resistance
Impact resistant and easily machineable
