- RS Stock No.:
- 184-7074
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Colour | Natural | |
| Length | 500mm | |
| Material | Nylon | |
| Form | Rod | |
| Rod Diameter | 65mm | |
| Density | 1.15g/cm³ | |
| Tensile Strength | 60 (Wet) MPa, 85 (Dry) MPa | |
| Flammability Rating | UL 94 HB | |
| Maximum Operating Temperature | +180°C | |
| Melting Point | +220°C | |
| Elongation | 50% | |
| Thermal Conductivity | 0.24W/mK | |
| Hardness | M 90 Rockwell | |
| Water Absorption | 6 → 7% | |
| Suitability | Castors, Diverse Machine Parts, Gears, Pulleys, Slide Bearing, Slide Rails & Friction Strips, Wiper Blades | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Colour Natural | ||
Length 500mm | ||
Material Nylon | ||
Form Rod | ||
Rod Diameter 65mm | ||
Density 1.15g/cm³ | ||
Tensile Strength 60 (Wet) MPa, 85 (Dry) MPa | ||
Flammability Rating UL 94 HB | ||
Maximum Operating Temperature +180°C | ||
Melting Point +220°C | ||
Elongation 50% | ||
Thermal Conductivity 0.24W/mK | ||
Hardness M 90 Rockwell | ||
Water Absorption 6 → 7% | ||
Suitability Castors, Diverse Machine Parts, Gears, Pulleys, Slide Bearing, Slide Rails & Friction Strips, Wiper Blades | ||
- COO (Country of Origin):
- DE

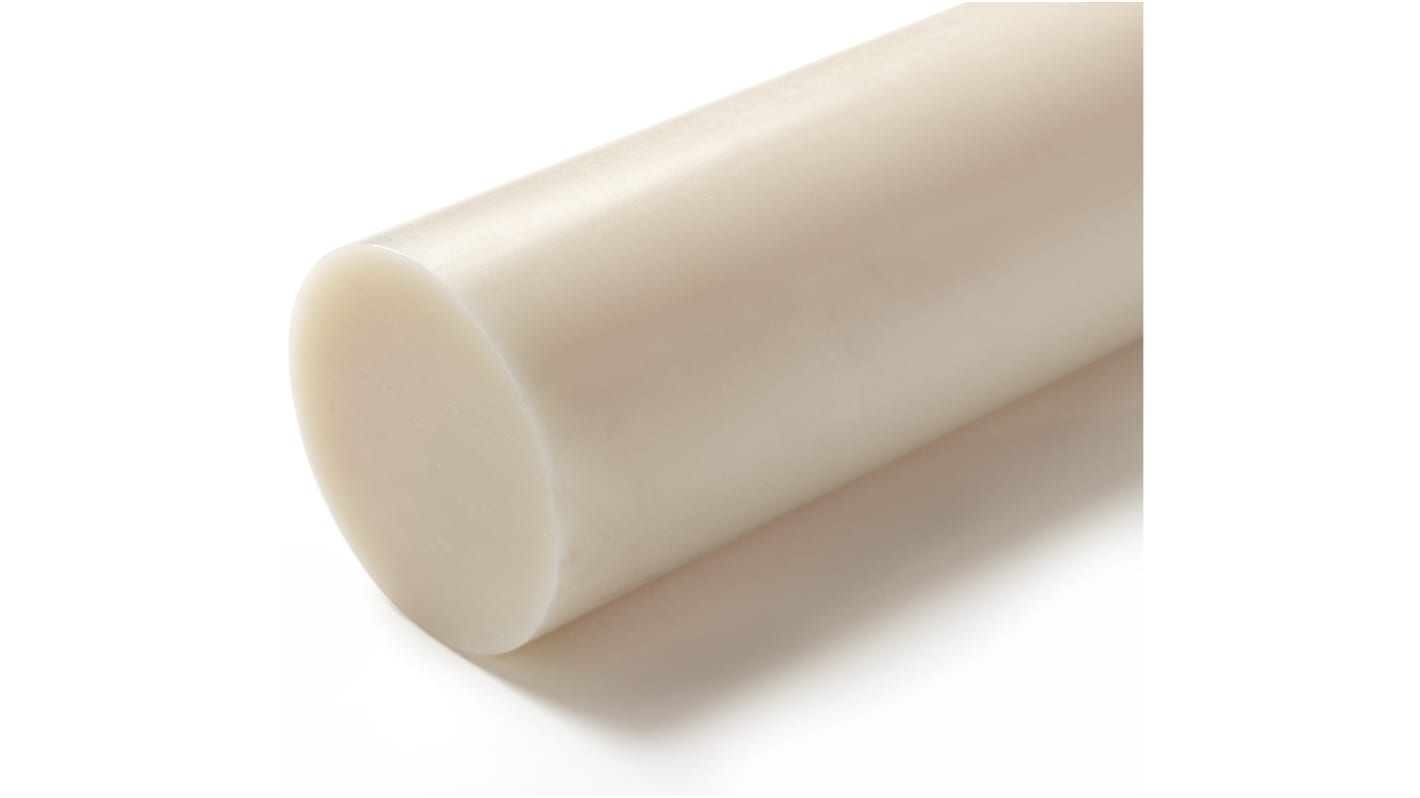

RS PRO Nature Nylon Rod, 500 mm x 65 mm Diameter
Strengthen your structures and connect components with this nature nylon rod from RS PRO. This handy part is used in industrial settings, such as construction sites and fabrication workshops, as well as by DIY enthusiasts.
The rod is manufactured from nylon 6, so it has a high tensile strength and good resistance to impact. This means you can use it in a range of demanding environments. It also has a melting point of +220°C, so you can easily hot plate weld it if required.
The component has an Underwriters Laboratories flammability rating of UL 94 HB, which means it burns slowly when in a horizontal position and reduces the risk of fire. You'll find it used as an electrical insulator in agricultural equipment or as a roller in industrial machinery.
The rod is manufactured from nylon 6, so it has a high tensile strength and good resistance to impact. This means you can use it in a range of demanding environments. It also has a melting point of +220°C, so you can easily hot plate weld it if required.
The component has an Underwriters Laboratories flammability rating of UL 94 HB, which means it burns slowly when in a horizontal position and reduces the risk of fire. You'll find it used as an electrical insulator in agricultural equipment or as a roller in industrial machinery.
Features and Benefits
• Nature colour
• Density of 1.15 g/cm³
• Elongation of 50%
• Flammability rating of UL 94 HB
• Rod form
• Hardness of M 90 Rockwell
• Length of 500 mm
• Rod diameter of 65 mm
• Nylon material
• Maximum operating temperature of +180°C
• Melting point of +220°C
• Suitable for castors, diverse machine parts, gears, pulleys, slide bearings, slide rails, friction strips and wiper blades
• Tensile strength of 60 MPa (wet) and 85 MPa (dry)
• Thermal conductivity of 0.24 W/mK
• Water absorption of 6 to 7%
• Density of 1.15 g/cm³
• Elongation of 50%
• Flammability rating of UL 94 HB
• Rod form
• Hardness of M 90 Rockwell
• Length of 500 mm
• Rod diameter of 65 mm
• Nylon material
• Maximum operating temperature of +180°C
• Melting point of +220°C
• Suitable for castors, diverse machine parts, gears, pulleys, slide bearings, slide rails, friction strips and wiper blades
• Tensile strength of 60 MPa (wet) and 85 MPa (dry)
• Thermal conductivity of 0.24 W/mK
• Water absorption of 6 to 7%
