RS PRO Opaque Fluoroplastics PTFE Rod, 1m x 10mm Diameter

View all Plastic Rods
Bulk discount available

Subtotal (1 lot of 5 units)*

£42.23

(exc. VAT)

£50.68

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 40 unit(s) ready to ship
  • Plus 10 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Lot(s)
Per Lot
Per unit*
1 - 2£42.23£8.446
3 - 9£39.27£7.854
10 - 29£37.16£7.432
30 +£35.30£7.06

*price indicative

RS Stock No.:
680-628
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Colour

Opaque

Length

1m

Material

PTFE

Form

Rod

Rod Diameter

10mm

Density

2.18 → 2.21g/cm³

Tensile Strength

25 MPa

Maximum Operating Temperature

+260°C

Flammability Rating

UL 94 V-0

Hardness

30 Ball Indentation

Elongation

50%

Water Absorption

0.3%

COO (Country of Origin):
IT

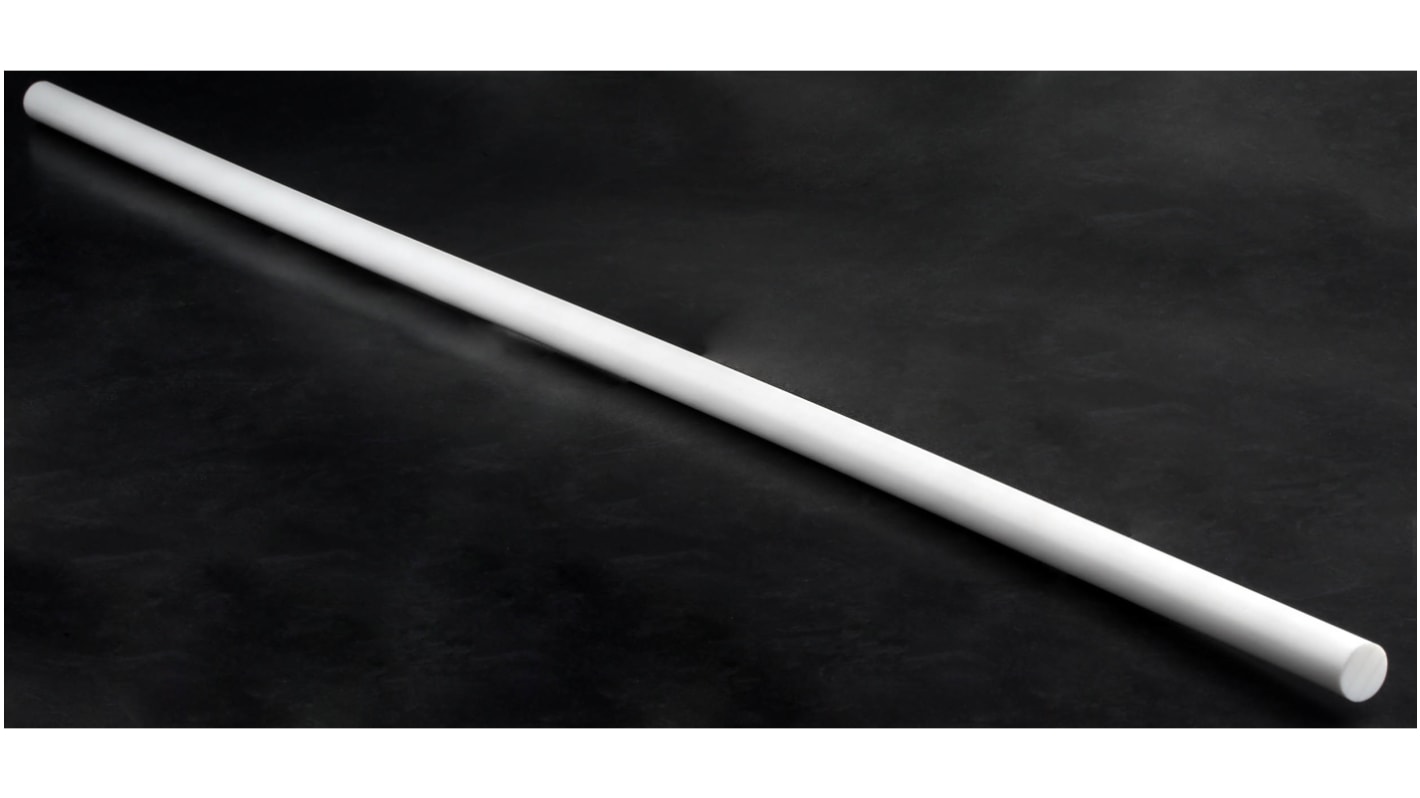

RS PRO PTFE Rod/Bar Fluoroplastic Rod 1000 mm x 10 mm diameter


PTFE (Polytetrafluoroethylene) celebrates over 80 years as high-performing synthetic fluoropolymer finding appreciation in many industries.

From automotive, food, and drink to even medical applications due to their unique properties.
What is so special about PTFE Round Bar and how RS brings you a value?

We are proudly introducing our own branded RS PRO PTFE Rod (known as Round Bar), 1000 mm long with a beige, natural appearance and full material opacity.

Our Rod provides excellent resistance to a wide range of organic and inorganic liquids. No significant degradation in steam or high-pressure water environments makes ideal for applications like valve seats in steam and water mixers or components in a high-temperature diesel engine turbo actuator.

The continues working temperature tolerance is up to + 260°C to suits different project requirements.

Features and Benefits


  • Our Rod offers significantly low and very high working temperature (from -200°C to impressive +260°C)

  • PTFE Round Bar characterising of full resistance to chemicals, acids and solvents

  • Another property lies in low friction and non-stick characteristics with tensile strength

  • You do not worry about electrical aspect as this is high electrical resistance and dielectric strength material

  • The unique plastic Rod is resistance to weather conditions, UV light (long-lasting) and corrosion

  • The material is non-toxic, biocompatible, sterile, inert and provides non-stick quality as standard

Applications


  • DIY building projects

  • Bushings

  • Insulators

  • Rollers

  • Gears

  • Sheaves

  • Medical device parts or implants

  • Structural applications

  • Cable insulation

Why RS PRO?


RS PRO is our own-brand range of great-value products. Each part of every RS PRO product is stringently tested against demanding industry standards. We give it our seal of approval only when we're confident of exceptional quality. That's why RS PRO is trusted by engineers worldwide.

Note

The PTFE sheets supplied have a size tolerance of ±5 mm

Standards

DIN 53479; DIN 53736; ASTM-D 1929
