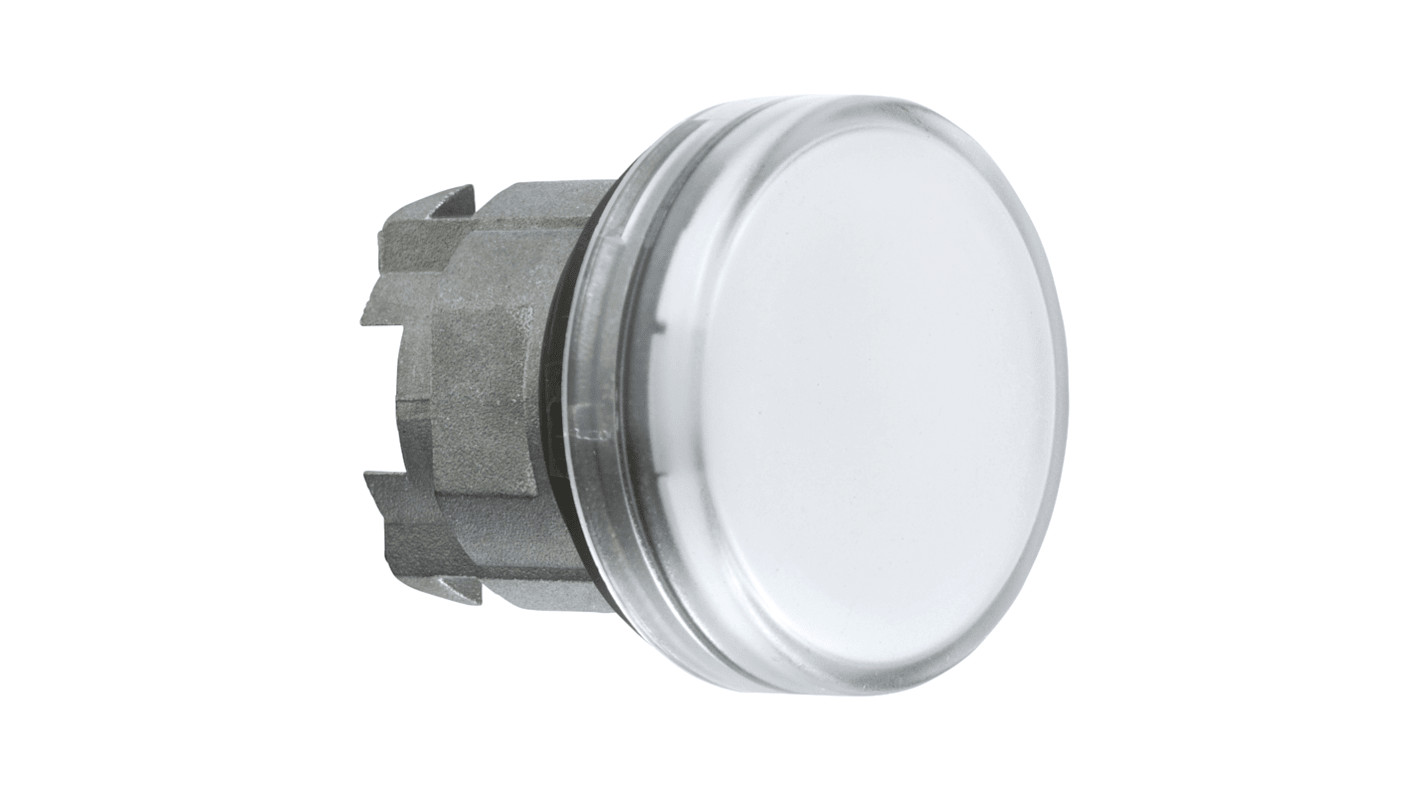

Schneider Electric White Pilot Light Head, 22mm Cutout Harmony XB4 Series

Providing functions to machines and panels, Schneider Electric combines performance with an attractive design in the XB4 pilot light series. Reinforced with flushed mounting kits, this series is quick and simple to install. Modular design means these lights are adaptable and flexible, even in the most demanding environment. Harmony XB4 light series also offers a wide variety of solutions, materials, LED colour, connection and fixings as well as accessories to customise panels. Connection types available include screw clamp, fasten connector, spring terminal and printed circuit board.

The XB4 series can be used for general-purpose, Building and Infrastructure and Industry application, other applications include: Machine and control panel, chemical industry, food and beverage, automotive, paper mill, marine application and carwashes.

• This range of pilot light heads for use with a body consisting of either integral LED, neon, or LED
• The colour of the head should be matched with the same colour as the chosen LED block
• All heads require a body/ fixing collar, see stock no. 331-0142 and contact bodies, see stock no. 331-0158

For straightforward machine control, choose this push button switch from Schneider Electric. It works with a fixing collar (331-0142) and contact body (331-0158) to let you turn equipment on and off or change modes. Thanks to a standard cutout diameter of 22mm, this unit fits into an existing slot in your control panel to simplify installation. A white illuminated head gives you at-a-glance status indication and is easy to spot in a busy setup.

• Works reliably in a wide operating temperature range between -40°C and +70°C
• Compact dimensions of 29 (W) x 29 (H) x 30mm (D) mean it's ideal for tight spaces
• Chromium-plated bezel is resistant to corrosion in humid settings
• 5gn vibration resistance means it's suitable for use in busy industrial environments
• Panel-mounted for speedy installation by hand

• Manufacturing plants
• Paper mills
• Car washes

Yes, it's rated IP69K, which means it's protected against high-temperature, high-pressure jets of water. This rating means the switch is also dust-tight and reliable in contaminated settings where there's a lot of airborne debris.
