RS PRO 86 dB Panel Mount Square Wave External 9.5 mm Piezo Buzzer Component 40 mm 30V ac Max
- RS Stock No.:
- 771-6926
- Brand:
- RS PRO
Subtotal (1 unit)*
£2.30
(exc. VAT)
£2.76
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 201 unit(s) shipping from 08 June 2026
- Plus 22 unit(s) shipping from 08 June 2026
- Plus 1,447 unit(s) shipping from 15 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £2.30 |
*price indicative
- RS Stock No.:
- 771-6926
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Mount Type | Panel Mount | |
| Product Type | Piezo Buzzer Component | |
| Maximum Supply Voltage | 30V ac | |
| Sound Level | 86dB | |
| Drive Type | External | |
| Tone Type | Square Wave | |
| Diameter | 30mm | |
| Minimum Operating Temperature | -30°C | |
| Maximum Operating Temperature | 85°C | |
| Length | 40mm | |
| Standards/Approvals | No | |
| Height | 9.5mm | |
| Maximum Frequency | 2.5kHz | |
| Capacitance | 30nF | |
| Supply Current | 9mA | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Mount Type Panel Mount | ||
Product Type Piezo Buzzer Component | ||
Maximum Supply Voltage 30V ac | ||
Sound Level 86dB | ||
Drive Type External | ||
Tone Type Square Wave | ||
Diameter 30mm | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature 85°C | ||
Length 40mm | ||
Standards/Approvals No | ||
Height 9.5mm | ||
Maximum Frequency 2.5kHz | ||
Capacitance 30nF | ||
Supply Current 9mA | ||
Non Compliant
- COO (Country of Origin):
- CN

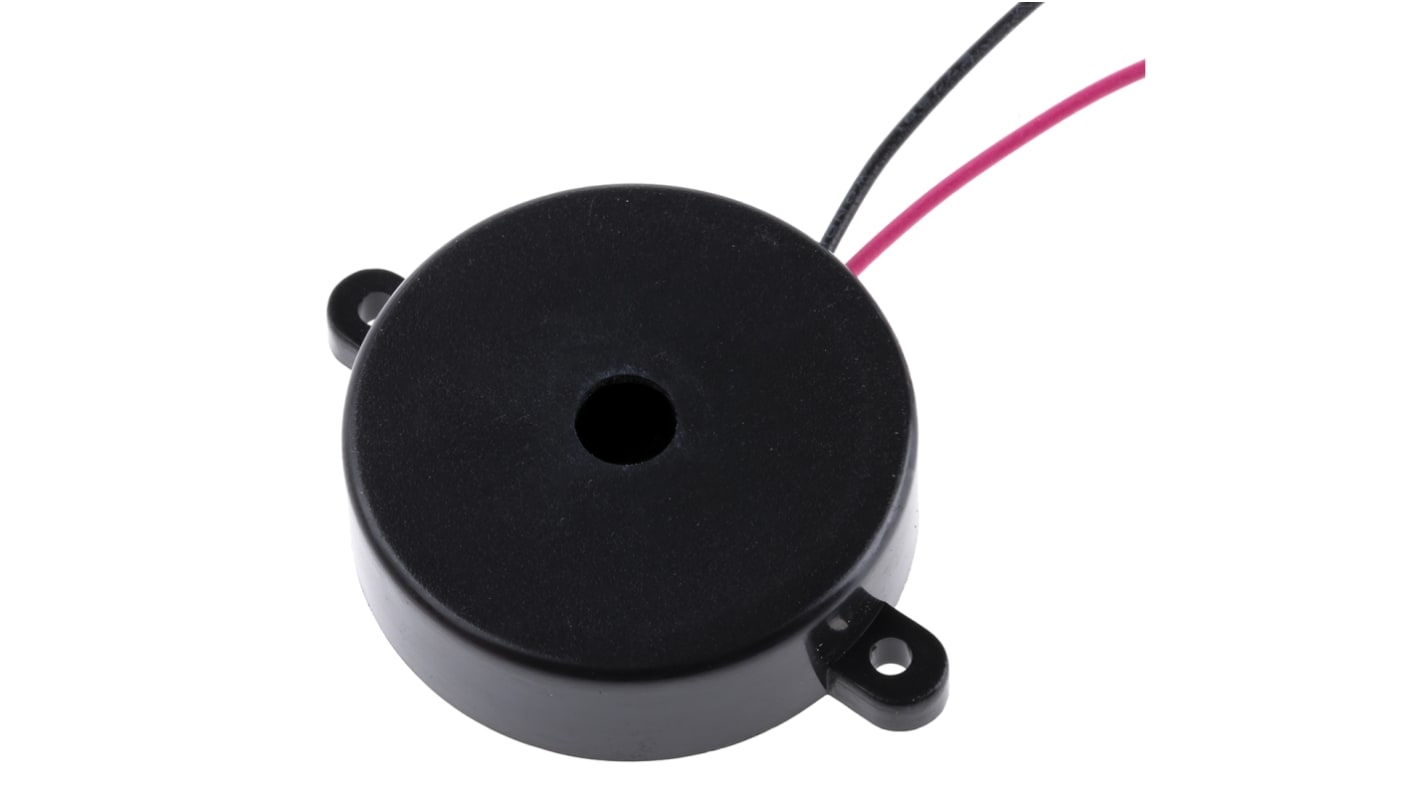

Flanged transducer flying lead
Circular cased Flanged mounting transducer
Flying lead connections
High sound output
External circuitry required for operation
