RS PRO 92 dB Panel Mount Continuous External 5.2 mm Piezo Buzzer Component 40 mm 30 V ac Max
- RS Stock No.:
- 535-8073
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 bag of 5 units)*
£6.45
(exc. VAT)
£7.75
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 50 unit(s) shipping from 30 March 2026
- Plus 5 unit(s) shipping from 30 March 2026
- Plus 1,555 unit(s) shipping from 06 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 5 - 45 | £1.29 | £6.45 |
| 50 - 95 | £1.238 | £6.19 |
| 100 - 245 | £1.148 | £5.74 |
| 250 - 495 | £1.06 | £5.30 |
| 500 + | £0.968 | £4.84 |
*price indicative
- RS Stock No.:
- 535-8073
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Mount Type | Panel Mount | |
| Product Type | Piezo Buzzer Component | |
| Maximum Supply Voltage | 30V ac | |
| Sound Level | 92dB | |
| Drive Type | External | |
| Tone Type | Continuous | |
| Minimum Operating Temperature | -30°C | |
| Maximum Operating Temperature | 80°C | |
| Depth | 29.5mm | |
| Height | 5.2mm | |
| Standards/Approvals | RoHS | |
| Length | 40mm | |
| Termination Style | Wire | |
| Maximum Frequency | 2.8kHz | |
| Supply Current | 10mA | |
| Minimum Frequency | 2.8kHz | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Mount Type Panel Mount | ||
Product Type Piezo Buzzer Component | ||
Maximum Supply Voltage 30V ac | ||
Sound Level 92dB | ||
Drive Type External | ||
Tone Type Continuous | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature 80°C | ||
Depth 29.5mm | ||
Height 5.2mm | ||
Standards/Approvals RoHS | ||
Length 40mm | ||
Termination Style Wire | ||
Maximum Frequency 2.8kHz | ||
Supply Current 10mA | ||
Minimum Frequency 2.8kHz | ||
Non Compliant
- COO (Country of Origin):
- TW

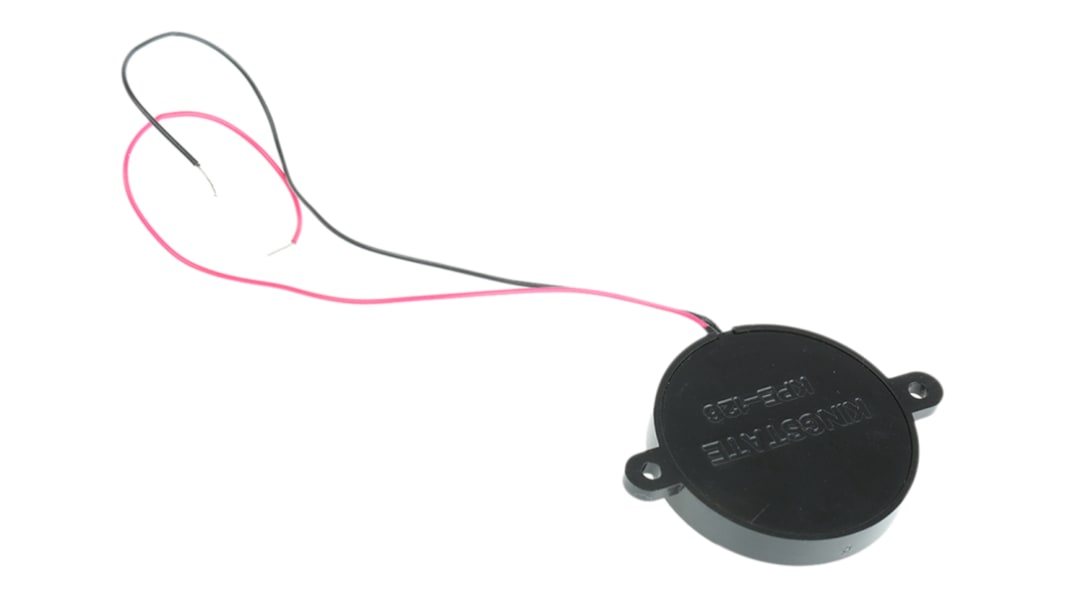

Flanged transducer flying lead
Circular cased Flanged mounting transducer
Flying lead connections
High sound output
External circuitry required for operation
