RS PRO 88 dB Panel Mount Square Wave External 5.5 mm Piezo Buzzer Component 41 mm 1 V ac Min 30V ac Max
- RS Stock No.:
- 724-3150
- Brand:
- RS PRO
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 2 units)*
£6.02
(exc. VAT)
£7.22
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 628 unit(s) ready to ship
- Plus 16 unit(s) ready to ship from another location
- Plus 392 unit(s) shipping from 08 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 2 - 8 | £3.01 | £6.02 |
| 10 - 18 | £2.89 | £5.78 |
| 20 - 48 | £2.74 | £5.48 |
| 50 - 98 | £2.59 | £5.18 |
| 100 + | £2.375 | £4.75 |
*price indicative
- RS Stock No.:
- 724-3150
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Mount Type | Panel Mount | |
| Product Type | Piezo Buzzer Component | |
| Minimum Supply Voltage | 1V ac | |
| Maximum Supply Voltage | 30V ac | |
| Sound Level | 88dB | |
| Drive Type | External | |
| Tone Type | Square Wave | |
| Diameter | 30mm | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 60°C | |
| Depth | 30mm | |
| Length | 41mm | |
| Height | 5.5mm | |
| Standards/Approvals | No | |
| Maximum Frequency | 4kHz | |
| Capacitance | 20nF | |
| Supply Current | 3mA | |
| Minimum Frequency | 3000Hz | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Mount Type Panel Mount | ||
Product Type Piezo Buzzer Component | ||
Minimum Supply Voltage 1V ac | ||
Maximum Supply Voltage 30V ac | ||
Sound Level 88dB | ||
Drive Type External | ||
Tone Type Square Wave | ||
Diameter 30mm | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 60°C | ||
Depth 30mm | ||
Length 41mm | ||
Height 5.5mm | ||
Standards/Approvals No | ||
Maximum Frequency 4kHz | ||
Capacitance 20nF | ||
Supply Current 3mA | ||
Minimum Frequency 3000Hz | ||
- COO (Country of Origin):
- CN

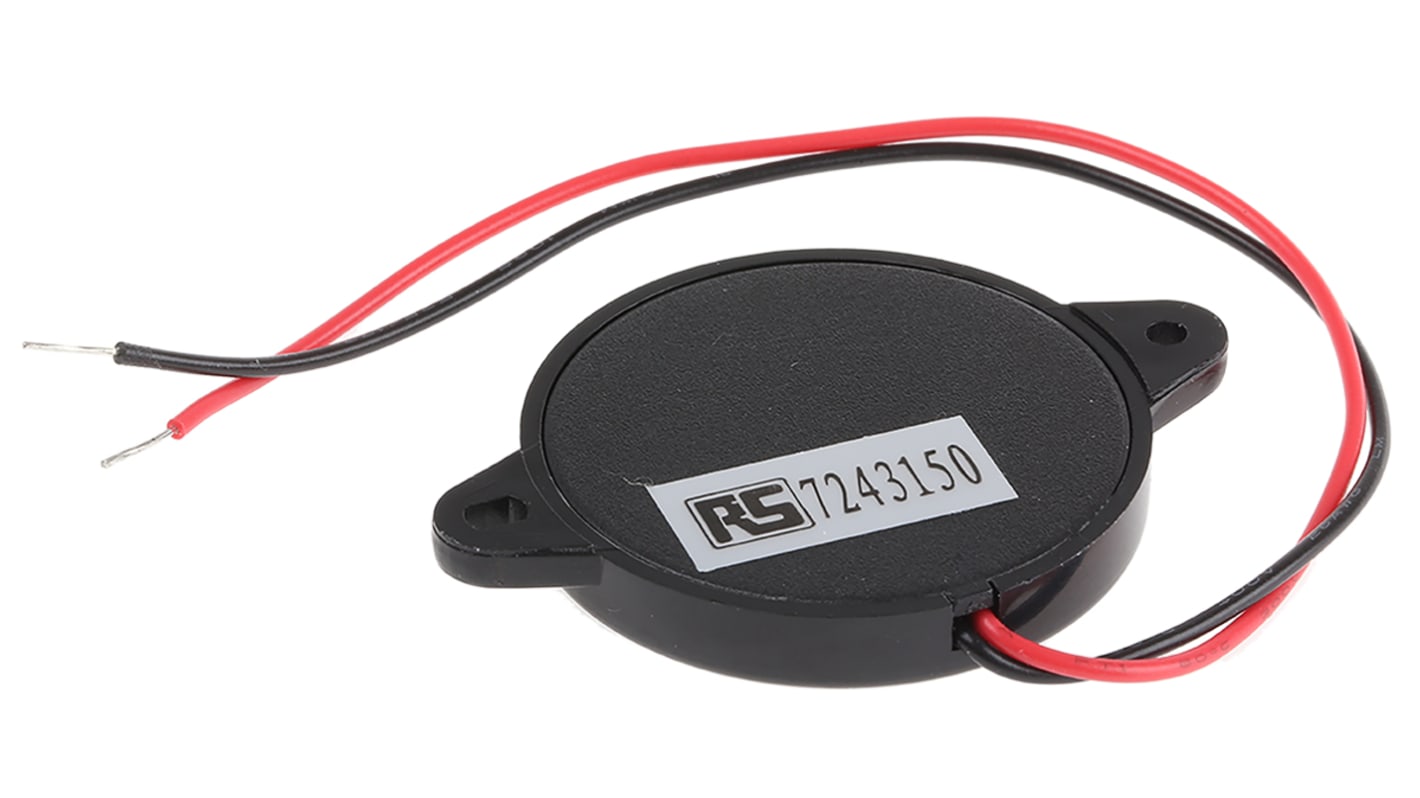

Flanged transducer flying lead
Circular cased Flanged mounting transducer
Flying lead connections
High sound output
External circuitry required for operation
