- RS Stock No.:
- 181-2697
- Brand:
- RS PRO
This product is currently unavailable to backorder.
Unfortunately, we don’t have this product in stock and it’s not available to backorder at this time.
Added
Price Each (In a Box of 400)
£5.098
(exc. VAT)
£6.118
(inc. VAT)
Units | Per unit | Per Box* |
400 + | £5.098 | £2,039.20 |
*price indicative |
- RS Stock No.:
- 181-2697
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
Product Details

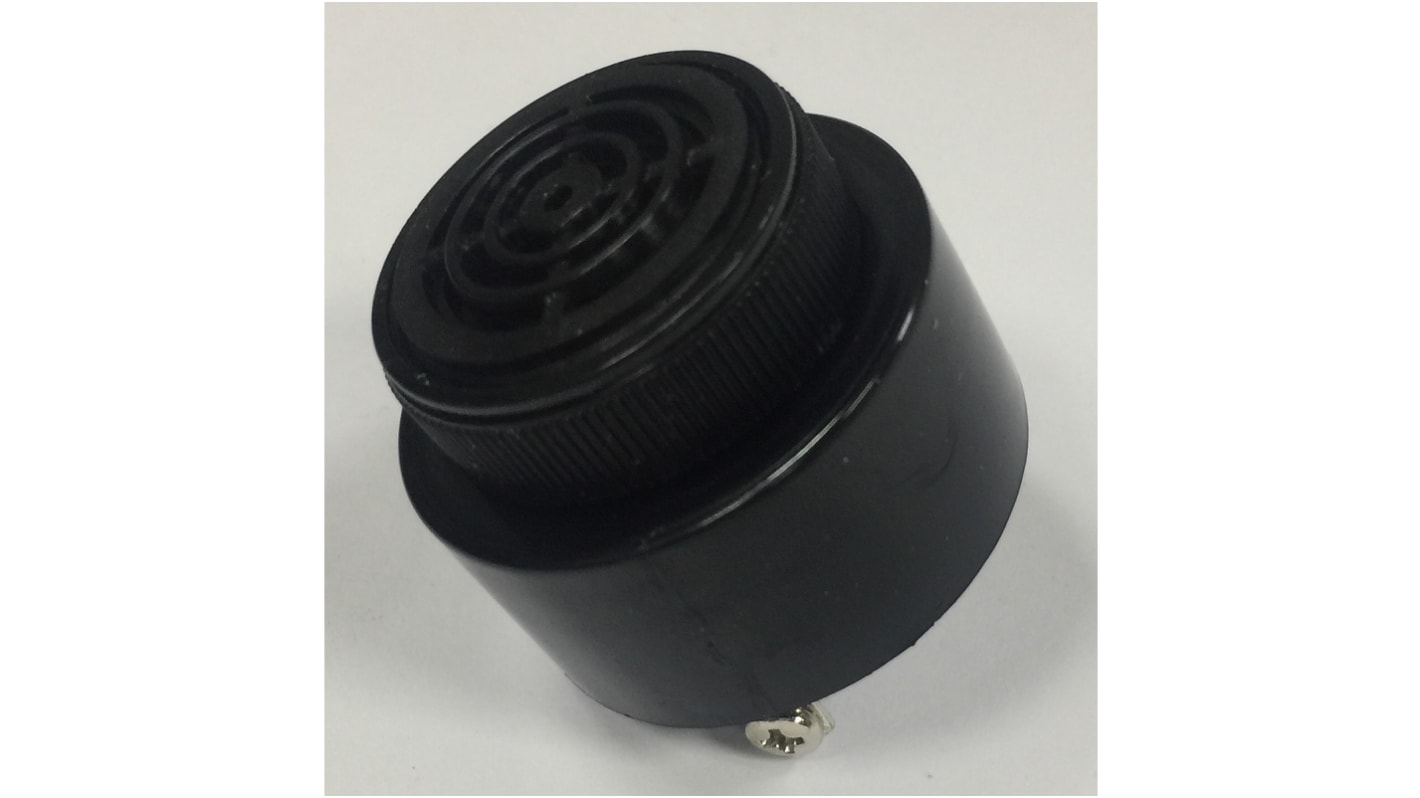

The RS PRO Piezo Buzzer audio Indicator has Operating temperature range of -30°C to +85°C and voltage range of 7V dc to 18V dc. The material used for buzzer is NYLON UL-94 V-0 (BLACK) and it has Tin-Plated Tapped Screw type terminal.
Sound Level 95dB
Tone Type Slow Pulse
Diameter 42.5mm
Height 32.5mm
Tone Type Slow Pulse
Diameter 42.5mm
Height 32.5mm
Specifications
Attribute | Value |
---|---|
Minimum Supply Voltage | 7V dc |
Maximum Supply Voltage | 18V dc |
Sound Level | 95dB |
Tone Type | Slow Pulse |
Diameter | 42.5mm |
Height | 32.5mm |
Dimensions | 42.5 (Dia.) x 32.5mm |
Minimum Operating Temperature | -30°C |
Maximum Operating Temperature | +85°C |
Maximum Frequency | 2.9kHz |
Supply Current | 32mA |
