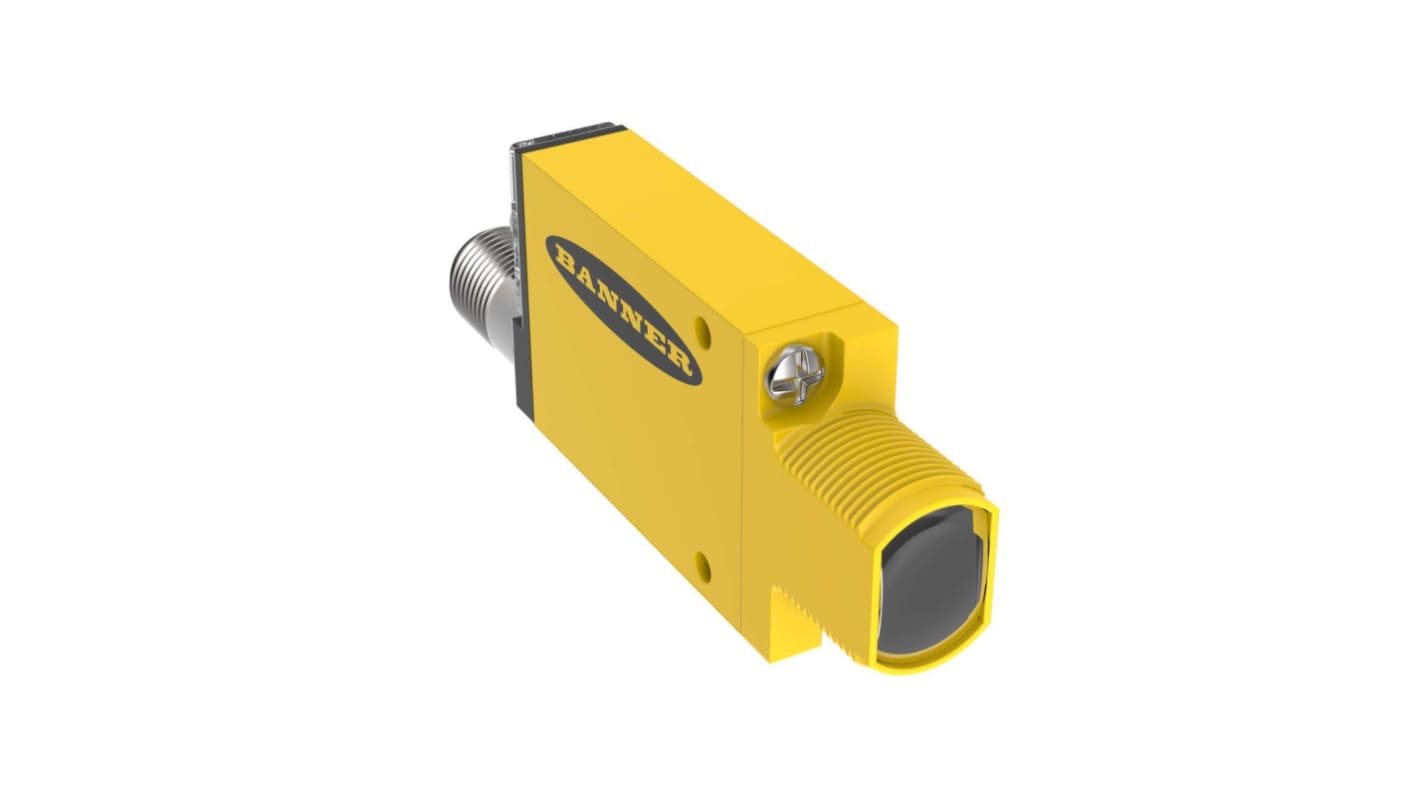

Banner Polarised Retroreflective Photoelectric Sensor
- RS Stock No.:
- 294-542
- Mfr. Part No.:
- MIAD9RQ
- Brand:
- Banner
Subtotal (1 unit)*
£156.64
(exc. VAT)
£187.97
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 3 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £156.64 |
*price indicative
- RS Stock No.:
- 294-542
- Mfr. Part No.:
- MIAD9RQ
- Brand:
- Banner
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Banner | |
| Product Type | Photoelectric Sensor | |
| Detection Type | Polarised Retroreflective | |
| Maximum DC Voltage | 15V dc | |
| Light Source | LED | |
| Minimum Operating Temperature | -40°C | |
| IP Rating | IP67 | |
| Maximum Operating Temperature | 70°C | |
| Maximum Current | 21mA | |
| Response Time | 5ms | |
| Standards/Approvals | UKCA, RoHS, CE | |
| Series | MIAD9 | |
| Housing Material | Thermoplastic | |
| Hazardous Area Certification | No | |
| Detection Range | 50 → 2000 mm | |
| Select all | ||
|---|---|---|
Brand Banner | ||
Product Type Photoelectric Sensor | ||
Detection Type Polarised Retroreflective | ||
Maximum DC Voltage 15V dc | ||
Light Source LED | ||
Minimum Operating Temperature -40°C | ||
IP Rating IP67 | ||
Maximum Operating Temperature 70°C | ||
Maximum Current 21mA | ||
Response Time 5ms | ||
Standards/Approvals UKCA, RoHS, CE | ||
Series MIAD9 | ||
Housing Material Thermoplastic | ||
Hazardous Area Certification No | ||
Detection Range 50 → 2000 mm | ||
- COO (Country of Origin):
- US
The Banner Sensor designed for precision operation in explosive environments. The MIAD9 Series sensor features a compact and rugged design, making it ideal for a variety of industrial applications requiring high reliability and safety. Its intrinsic safety ensures that it can be used in hazardous locations without compromising performance. The sensor operates on a two wire connection, providing a constant current output that accurately reflects the light conditions detected. Its sophisticated design incorporates a variable internal resistance mechanism, which guarantees dependable functionality under challenging conditions.
Red LED indicator provides clear visibility of the sensor's operational status
Robust construction protects against environmental factors and electrostatic discharge
Gain control potentiometer allows for precise sensitivity adjustments
Offers versatility through options for quick disconnect connections
Operates effectively across an extensive temperature range
Built to the highest safety standards for hazardous locations which ensuring user protection
