Vishay BPV22F Infrared PIN Photodiode, ±60 °, Through Hole Leaded
- RS Stock No.:
- 257-6816
- Mfr. Part No.:
- BPV22F
- Brand:
- Vishay
Subtotal (1 unit)*
£0.79
(exc. VAT)
£0.95
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1,869 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £0.79 |
*price indicative
- RS Stock No.:
- 257-6816
- Mfr. Part No.:
- BPV22F
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Product Type | PIN Photodiode | |
| Spectrums Detected | Infrared | |
| Wavelength of Peak Sensitivity | 950nm | |
| Package Type | Leaded | |
| Packaging | Bulk | |
| Mount Type | Through Hole | |
| Number of Pins | 2 | |
| Minimum Wavelength Detected | 870nm | |
| Maximum Wavelength Detected | 1050nm | |
| Typical Fall Time | 100ns | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 100°C | |
| Height | 6mm | |
| Standards/Approvals | RoHS Directive 2002/95/EC and in Accordance to WEEE 2002/96/EC | |
| Angle of Half Sensitivity | ±60 ° | |
| Breakdown Voltage | 60V | |
| Automotive Standard | No | |
| Short Circuit Current | 75μA | |
| Dark Current | 30nA | |
| Series | BPV22F | |
| Typical Rise Time | 100ns | |
| Open Circuit Voltage | 370mV | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Product Type PIN Photodiode | ||
Spectrums Detected Infrared | ||
Wavelength of Peak Sensitivity 950nm | ||
Package Type Leaded | ||
Packaging Bulk | ||
Mount Type Through Hole | ||
Number of Pins 2 | ||
Minimum Wavelength Detected 870nm | ||
Maximum Wavelength Detected 1050nm | ||
Typical Fall Time 100ns | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 100°C | ||
Height 6mm | ||
Standards/Approvals RoHS Directive 2002/95/EC and in Accordance to WEEE 2002/96/EC | ||
Angle of Half Sensitivity ±60 ° | ||
Breakdown Voltage 60V | ||
Automotive Standard No | ||
Short Circuit Current 75μA | ||
Dark Current 30nA | ||
Series BPV22F | ||
Typical Rise Time 100ns | ||
Open Circuit Voltage 370mV | ||

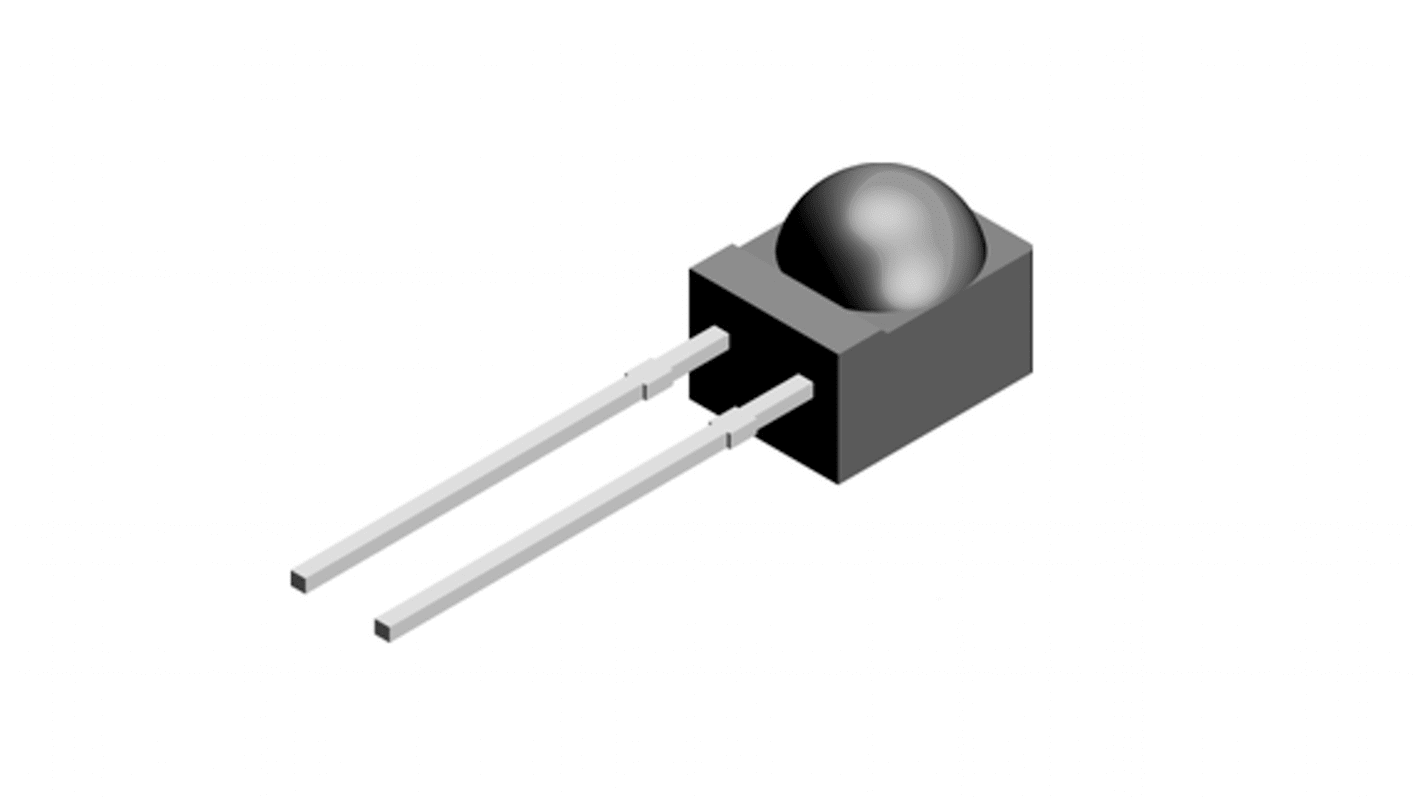

The Vishay PIN photodiode with high speed and high radiant sensitivity in a black, plastic package with side view lens and daylight blocking filter. Filter bandwdith is matched with 900 nm to 950 nm IR emitters. The lens achieves 80 % of sensitivity improvement in comparison with flat package.
High radiant sensitivity
Fast response times
Angle of half sensitivity: ϕ = ± 60°
