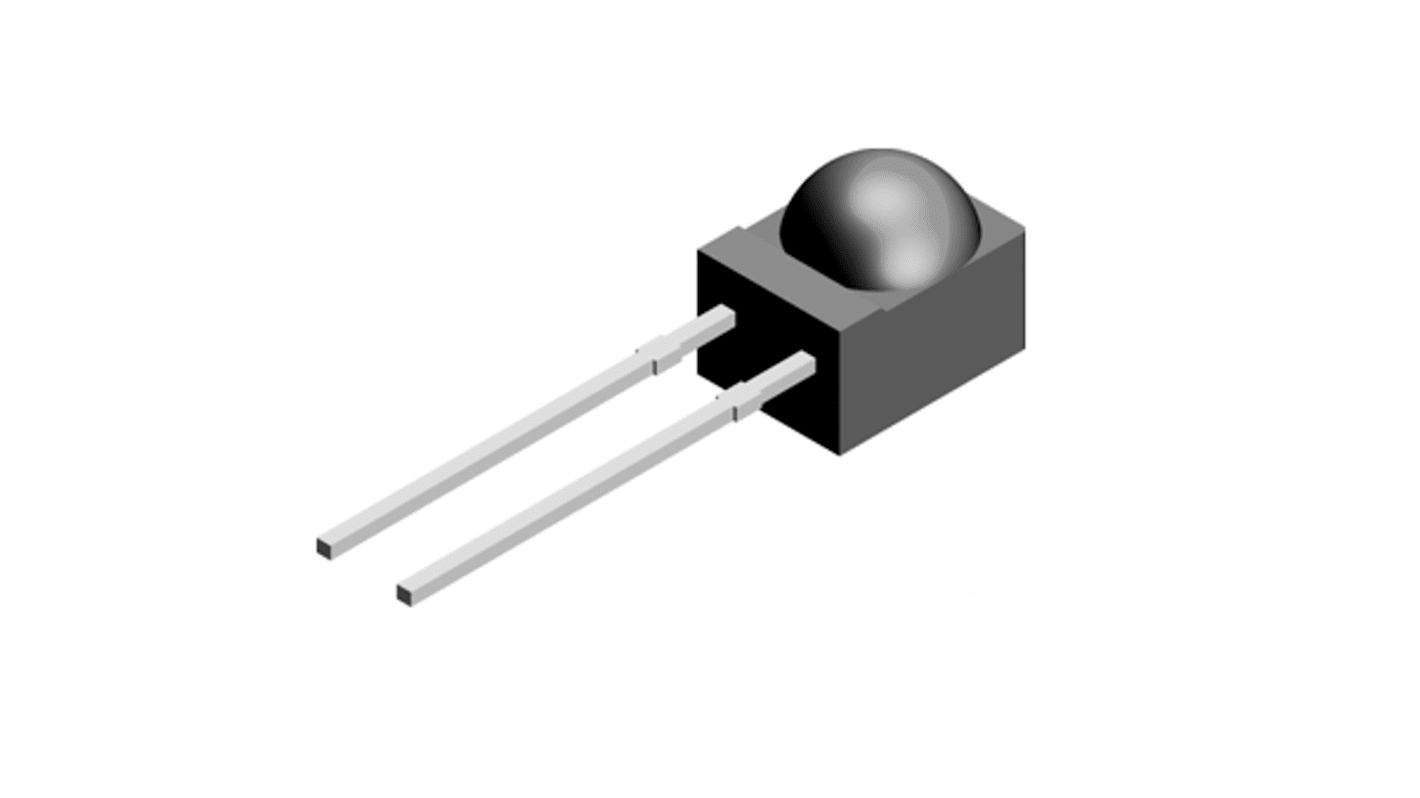

Vishay BPV23NF PIN Photodiode, 60 °, Through Hole Leaded

View all Photodiodes

Subtotal (1 unit)*

£0.92

(exc. VAT)

£1.10

(inc. VAT)

Add to Basket
Select or type quantity
Last RS stock
  • Final 3,929 unit(s), ready to ship
Units
Per unit
1 +£0.92

*price indicative

Packaging Options:
RS Stock No.:
257-6821
Mfr. Part No.:
BPV23NF
Brand:
Vishay
Find similar products by selecting one or more attributes.
Select all

Brand

Vishay

Product Type

PIN Photodiode

Wavelength of Peak Sensitivity

940nm

Package Type

Leaded

Mount Type

Through Hole

Packaging

Bulk

Number of Pins

2

Minimum Wavelength Detected

790nm

Maximum Wavelength Detected

1050nm

Typical Fall Time

70ns

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

100°C

Standards/Approvals

RoHS

Length

4.5mm

Height

18.8mm

Open Circuit Voltage

390mV

Automotive Standard

No

Dark Current

30nA

Typical Rise Time

70ns

Short Circuit Current

60μA

Series

BPV23

Breakdown Voltage

60V

The Vishay BPV23NF is a PIN photodiode with high speed and high radiant sensitivity in a black, plastic package with side view lens and daylight blocking filter. Filter bandwidth is matched with 870 nm to 950 nm IR emitters. The lens achieves 80 % of sensitivity improvement in comparison with flat package. This BPV23NFL PIN photodiode has long leads, other specifications like BPV23NF.

Radiant sensitive area (in mm2): 4.4

High radiant sensitivity

Daylight blocking filter matched with 870 nm to 950 nm emitters

Fast response times

Angle of half sensitivity: ϕ = ± 60°
