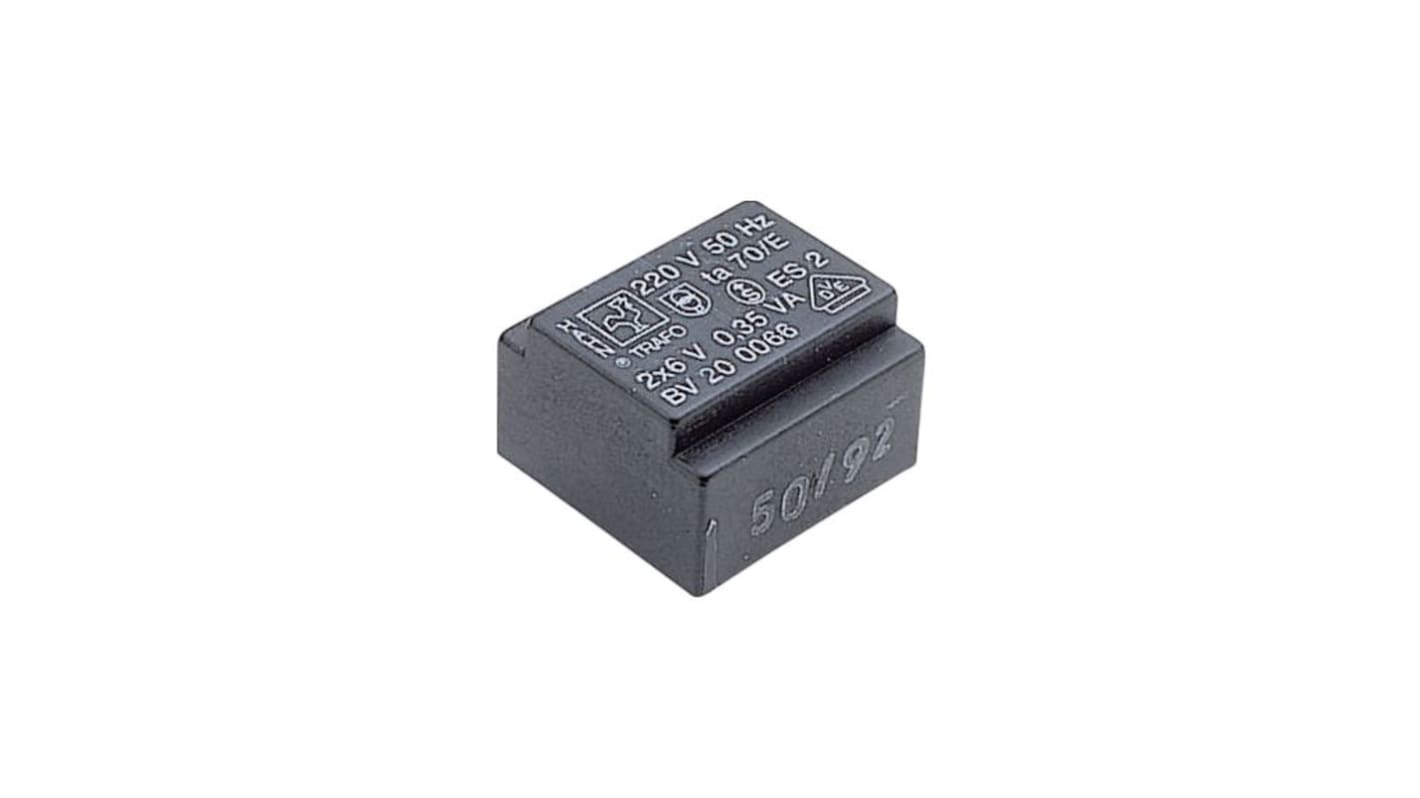

Hahn 2 x 6 V ac PCB PCB Transformer, VDE, CSA 0.35 VA
- RS Stock No.:
- 288-7336
- Distrelec Article No.:
- 156-16-016
- Mfr. Part No.:
- BV201 0142
- Brand:
- Hahn
Subtotal (1 unit)*
£8.01
(exc. VAT)
£9.61
(inc. VAT)
FREE delivery for orders over £60.00
Last RS stock
- Final 71 unit(s), ready to ship from another location
Units | Per unit |
|---|---|
| 1 + | £8.01 |
*price indicative
- RS Stock No.:
- 288-7336
- Distrelec Article No.:
- 156-16-016
- Mfr. Part No.:
- BV201 0142
- Brand:
- Hahn
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Hahn | |
| Secondary Voltage | 2 x 6 V ac | |
| Product Type | PCB Transformer | |
| Primary Voltage | 230 V ac | |
| Length | 21.7mm | |
| Width | 22.6mm | |
| Depth | 15mm | |
| Power | 0.35VA | |
| Weight | 0.025kg | |
| Mount Type | PCB | |
| Number of Pins | 4 | |
| Minimum Operating Frequency | 50Hz | |
| Series | BV | |
| Maximum Operating Frequency | 60Hz | |
| Standards/Approvals | VDE, CSA | |
| Select all | ||
|---|---|---|
Brand Hahn | ||
Secondary Voltage 2 x 6 V ac | ||
Product Type PCB Transformer | ||
Primary Voltage 230 V ac | ||
Length 21.7mm | ||
Width 22.6mm | ||
Depth 15mm | ||
Power 0.35VA | ||
Weight 0.025kg | ||
Mount Type PCB | ||
Number of Pins 4 | ||
Minimum Operating Frequency 50Hz | ||
Series BV | ||
Maximum Operating Frequency 60Hz | ||
Standards/Approvals VDE, CSA | ||
- COO (Country of Origin):
- DE
The transformer is a high-quality printed circuit-board transformer with an output capacity ranging from 0.35 VA to 0.5 VA. With minimal sizes available and test certifications to various standards, this transformer offers excellent performance in a compact package.
Output Capacity 0.35 VA - 0.5 VA for efficient power delivery
Double-coated windings for increased durability
Test certifications to ENEC 10-, VDE-, UL- ensuring safety and quality
Extreme heat-resistant epoxy insulation for added protection
Primary voltages from 12V to 250V for versatile applications
Secondary voltages from 4V to 24V for different voltage requirements
