WAGO PCB Terminal Block, 2-Contact, Surface, 1 Row
- RS Stock No.:
- 247-5851
- Mfr. Part No.:
- 2060-852/998-404
- Brand:
- WAGO
Subtotal (1 pack of 750 units)*
£462.00
(exc. VAT)
£554.25
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 09 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 750 + | £0.616 | £462.00 |
*price indicative
- RS Stock No.:
- 247-5851
- Mfr. Part No.:
- 2060-852/998-404
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Product Type | PCB Terminal Block | |
| Number of Contacts | 2 | |
| Current | 9A | |
| Number of Rows | 1 | |
| Minimum Wire Size mm² | 0.2mm² | |
| Mount Type | Surface | |
| Maximum Wire Size mm² | 0.75mm² | |
| Minimum Wire Size AWG | 24AWG | |
| Maximum Wire Size AWG | 18AWG | |
| Colour | White | |
| Voltage | 600V | |
| Standards/Approvals | RoHS | |
| Width | 11.9mm | |
| Length | 4.5mm | |
| Depth | 13.1mm | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Product Type PCB Terminal Block | ||
Number of Contacts 2 | ||
Current 9A | ||
Number of Rows 1 | ||
Minimum Wire Size mm² 0.2mm² | ||
Mount Type Surface | ||
Maximum Wire Size mm² 0.75mm² | ||
Minimum Wire Size AWG 24AWG | ||
Maximum Wire Size AWG 18AWG | ||
Colour White | ||
Voltage 600V | ||
Standards/Approvals RoHS | ||
Width 11.9mm | ||
Length 4.5mm | ||
Depth 13.1mm | ||
- COO (Country of Origin):
- CH

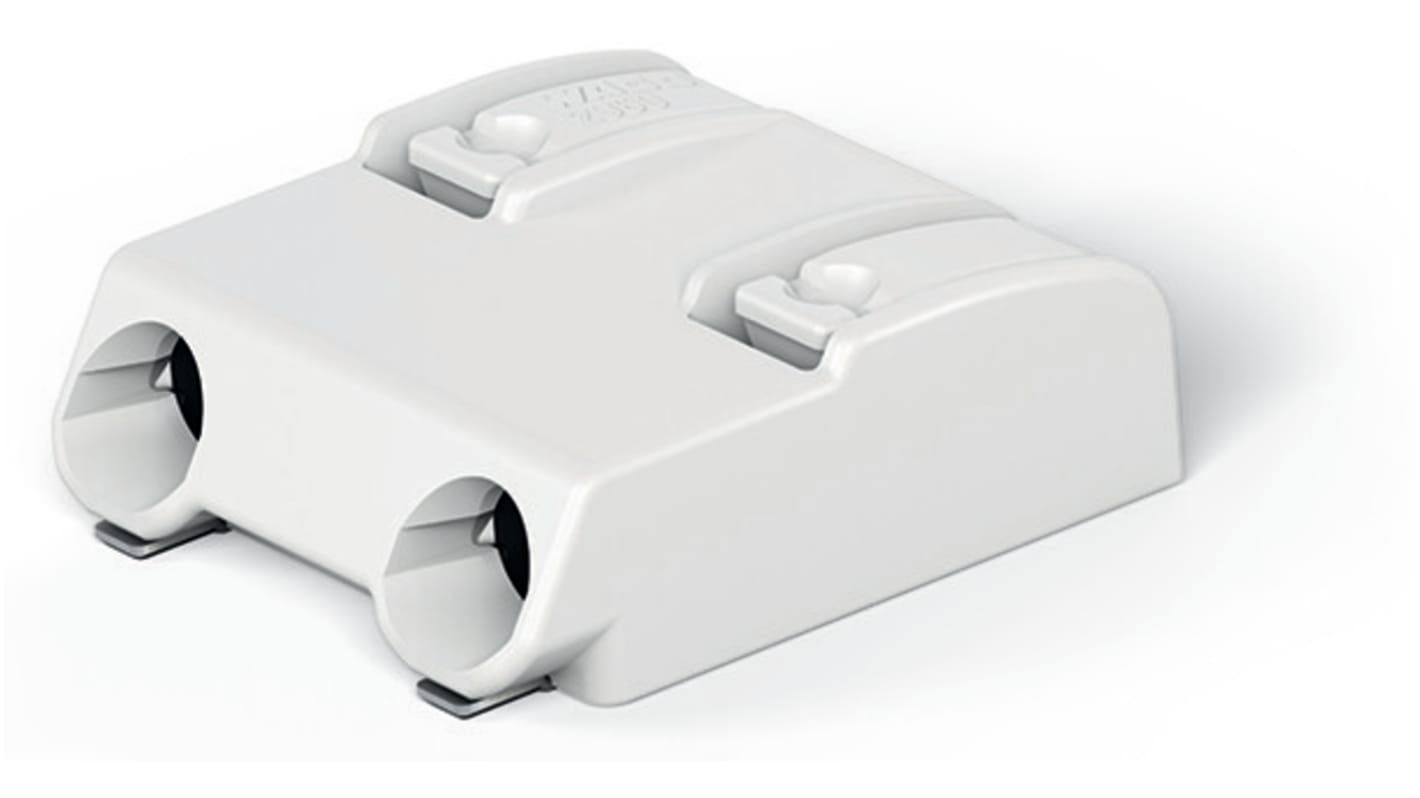

The WAGO SMD PCB terminal block and with push-button, nominal cross section of 0.75 mm².
SMD PCB terminal block
Push-button
Nominal cross section of 0.75 mm²
Pin spacing 8 mm
2-pole
Push-in cage clamp
In tape-and-reel packaging
