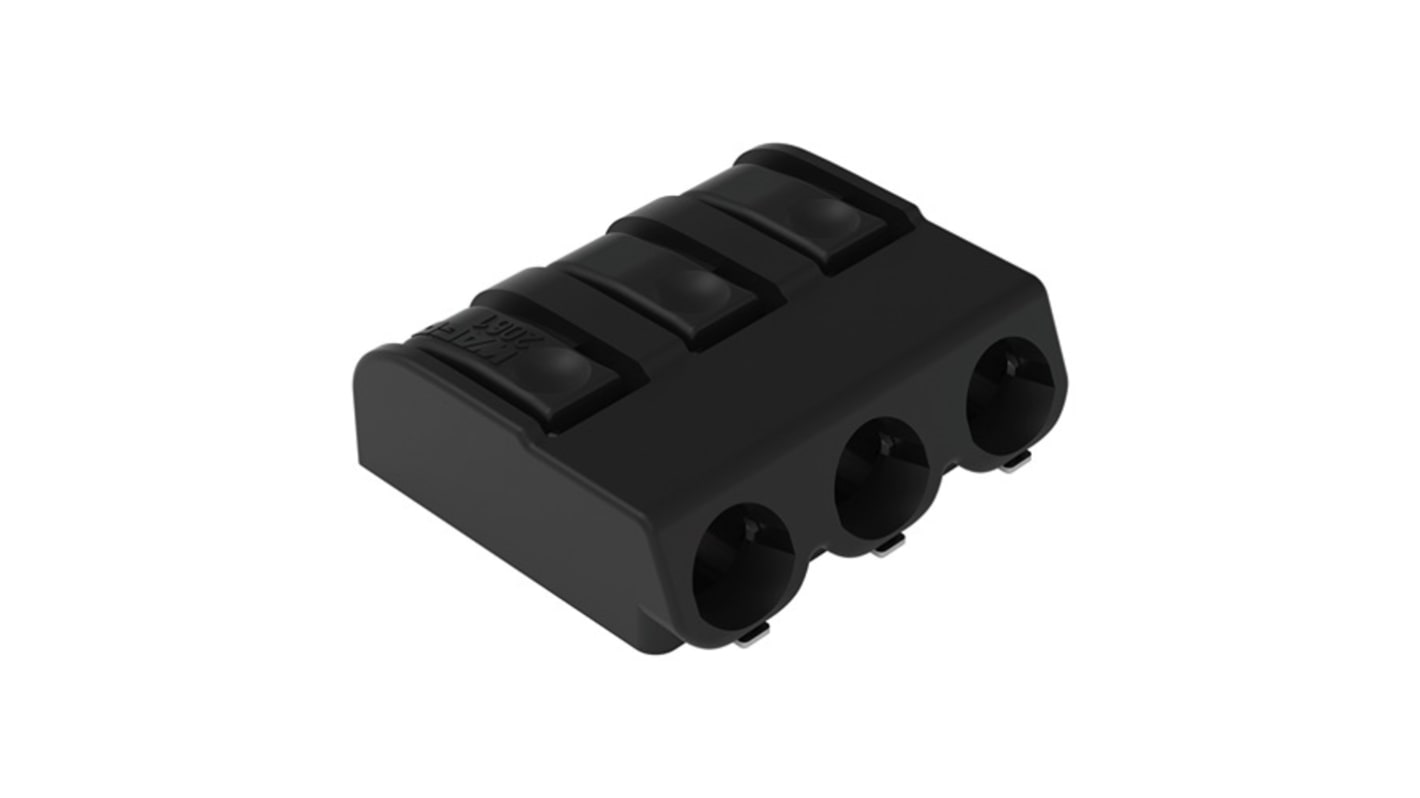

WAGO 2061 Series PCB Terminal Block, 3-Contact, 6 mm Pitch, PCB, 1 Row
- RS Stock No.:
- 278-2513
- Distrelec Article No.:
- 304-42-149
- Mfr. Part No.:
- 2061-623/998-404
- Brand:
- WAGO
Subtotal (1 pack of 450 units)*
£599.85
(exc. VAT)
£720.00
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 450 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 450 + | £1.333 | £599.85 |
*price indicative
- RS Stock No.:
- 278-2513
- Distrelec Article No.:
- 304-42-149
- Mfr. Part No.:
- 2061-623/998-404
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Number of Contacts | 3 | |
| Product Type | PCB Terminal Block | |
| Pitch | 6mm | |
| Number of Rows | 1 | |
| Current | 17.5A | |
| Mount Type | PCB | |
| Housing Material | Polyphthalamide | |
| Minimum Wire Size mm² | 0.25mm² | |
| Maximum Wire Size mm² | 1.5mm² | |
| Minimum Wire Size AWG | 20AWG | |
| Maximum Wire Size AWG | 16AWG | |
| Colour | Black | |
| Wire Connection Method | Push-in Cage Clamp | |
| Voltage | 630V | |
| Series | 2061 | |
| Standards/Approvals | IEC/EN 60664-1, UL 1059 | |
| Depth | 15.8mm | |
| Width | 17.7mm | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Number of Contacts 3 | ||
Product Type PCB Terminal Block | ||
Pitch 6mm | ||
Number of Rows 1 | ||
Current 17.5A | ||
Mount Type PCB | ||
Housing Material Polyphthalamide | ||
Minimum Wire Size mm² 0.25mm² | ||
Maximum Wire Size mm² 1.5mm² | ||
Minimum Wire Size AWG 20AWG | ||
Maximum Wire Size AWG 16AWG | ||
Colour Black | ||
Wire Connection Method Push-in Cage Clamp | ||
Voltage 630V | ||
Series 2061 | ||
Standards/Approvals IEC/EN 60664-1, UL 1059 | ||
Depth 15.8mm | ||
Width 17.7mm | ||
- COO (Country of Origin):
- CN
The WAGO SMD PCB terminal blocks feature Push in CAGE CLAMP connection technology along with push buttons. The push in termination supports both solid and ferruled conductors, providing flexibility in connectivity. The inclusion of push button for easy co
RoHS compliant
Plugging without loss of pin spacing
