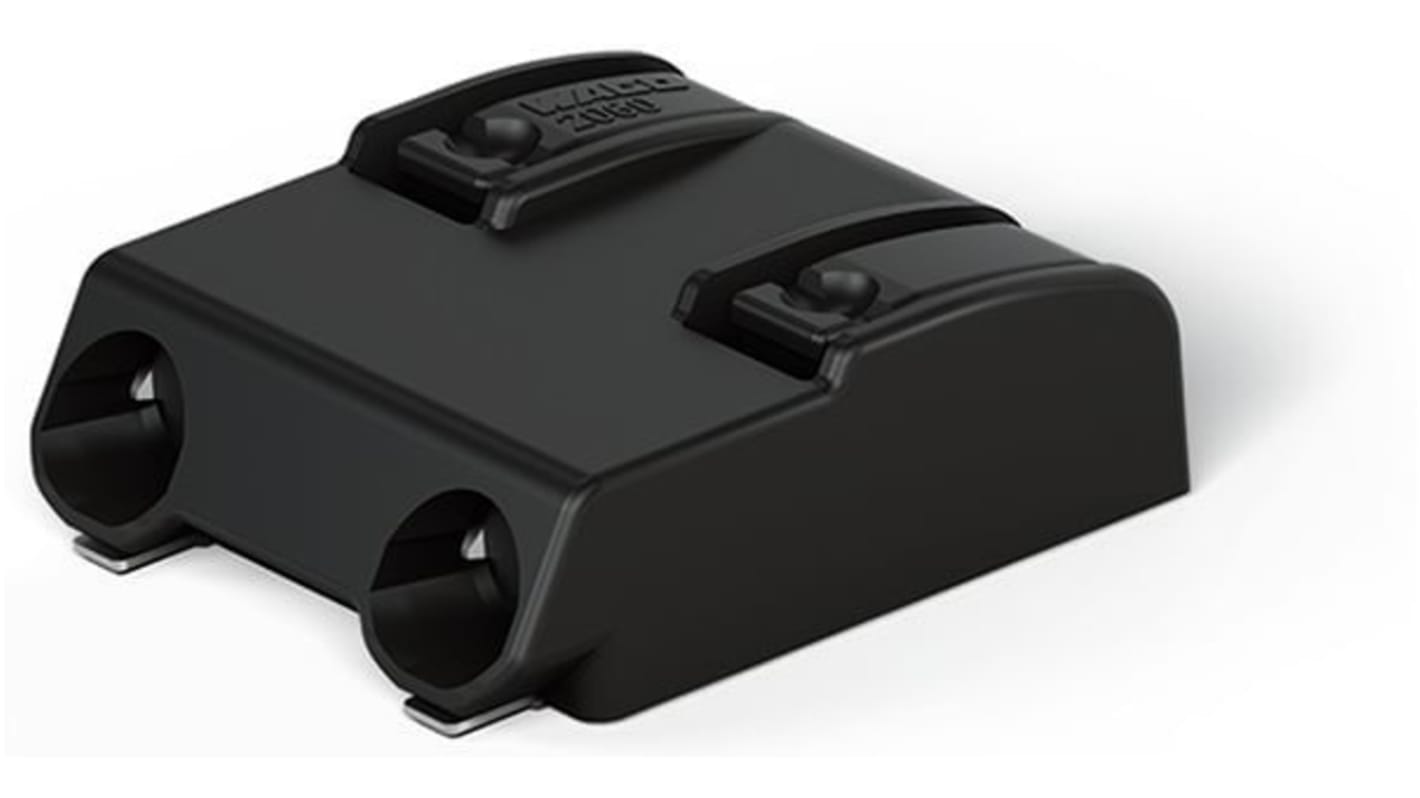

WAGO 2060 Series PCB Terminal Block, 2-Contact, 8 mm Pitch, Push-In Cage Clamp, 1 Row
- RS Stock No.:
- 288-5096
- Mfr. Part No.:
- 2060-872/998-404-1
- Brand:
- WAGO
Subtotal (1 box of 750 units)*
£462.08
(exc. VAT)
£554.50
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £462.08 | £0.616 |
*price indicative
- RS Stock No.:
- 288-5096
- Mfr. Part No.:
- 2060-872/998-404-1
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Product Type | PCB Terminal Block | |
| Number of Contacts | 2 | |
| Pitch | 8mm | |
| Current | 9A | |
| Number of Rows | 1 | |
| Minimum Wire Size mm² | 0.2mm² | |
| Housing Material | Polyphthalamide | |
| Mount Type | Push-In Cage Clamp | |
| Maximum Wire Size mm² | 0.75mm² | |
| Minimum Wire Size AWG | 18AWG | |
| Maximum Wire Size AWG | 24AWG | |
| Colour | Black | |
| Wire Connection Method | Push-in Cage Clamp | |
| Voltage | 1000V | |
| Series | 2060 | |
| Width | 11.9mm | |
| Standards/Approvals | IEC/EN 60664-1 | |
| Depth | 13.1mm | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Product Type PCB Terminal Block | ||
Number of Contacts 2 | ||
Pitch 8mm | ||
Current 9A | ||
Number of Rows 1 | ||
Minimum Wire Size mm² 0.2mm² | ||
Housing Material Polyphthalamide | ||
Mount Type Push-In Cage Clamp | ||
Maximum Wire Size mm² 0.75mm² | ||
Minimum Wire Size AWG 18AWG | ||
Maximum Wire Size AWG 24AWG | ||
Colour Black | ||
Wire Connection Method Push-in Cage Clamp | ||
Voltage 1000V | ||
Series 2060 | ||
Width 11.9mm | ||
Standards/Approvals IEC/EN 60664-1 | ||
Depth 13.1mm | ||
- COO (Country of Origin):
- CH
The Wago SMD PCB terminal block having push-button. It has nominal cross section of 0.75 mm² and pin spacing 6.5 mm. It has 2-pole and Push-in CAGE CLAMP technology.
SMD PCB terminal blocks with Push-in CAGE CLAMP connection technology and push-buttons
Push-in termination of solid and ferruled conductors
Available in tape-and-reel packaging for automated assembly
