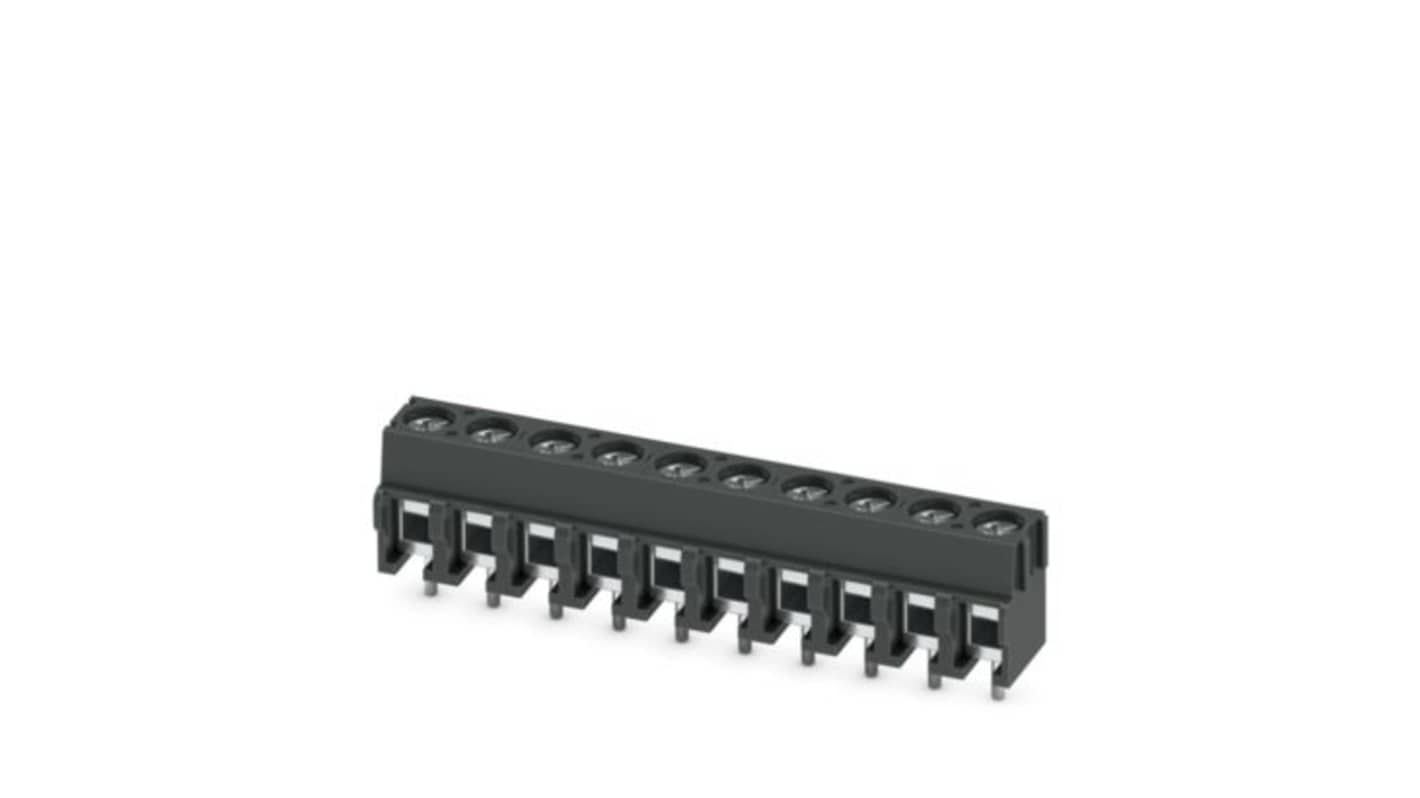

Phoenix Contact PT Series PCB Terminal Block, 10-Contact, 5mm Pitch, Wave Soldering, 1-Row, Screw Termination
- RS Stock No.:
- 556-488
- Mfr. Part No.:
- 1989528
- Brand:
- Phoenix Contact
Subtotal (1 pack of 100 units)*
£185.99
(exc. VAT)
£223.19
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 26 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
---|---|---|
1 + | £185.99 | £1.86 |
*price indicative
- RS Stock No.:
- 556-488
- Mfr. Part No.:
- 1989528
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Phoenix Contact | |
Number of Contacts | 10 | |
Pitch | 5mm | |
Number of Rows | 1 | |
Mounting Type | Wave Soldering | |
Termination Method | Screw | |
Series | PT | |
Select all | ||
---|---|---|
Brand Phoenix Contact | ||
Number of Contacts 10 | ||
Pitch 5mm | ||
Number of Rows 1 | ||
Mounting Type Wave Soldering | ||
Termination Method Screw | ||
Series PT | ||
- COO (Country of Origin):
- CN
The Phoenix Contact printed circuit board terminal is designed for a nominal current of 17.5 A and a rated voltage of 400 V. It features a nominal cross section of 1.5 mm² and provides ten potential connections arranged in one row, with ten positions per row. The terminal has a 5 mm pitch and uses a screw connection with a wire protector, making it suitable for wave soldering. The conductor to PCB connection is at a 0° angle, and the terminal comes in black. It has linear pinning with a 3.5 mm solder pin for each potential, with one solder pin per potential.
Well known connection principle allows worldwide use
Low temperature rise thanks to maximum contact force
High terminal block capacity thanks to rectangular terminal block space
Allows connection of two conductors
Low temperature rise thanks to maximum contact force
High terminal block capacity thanks to rectangular terminal block space
Allows connection of two conductors
