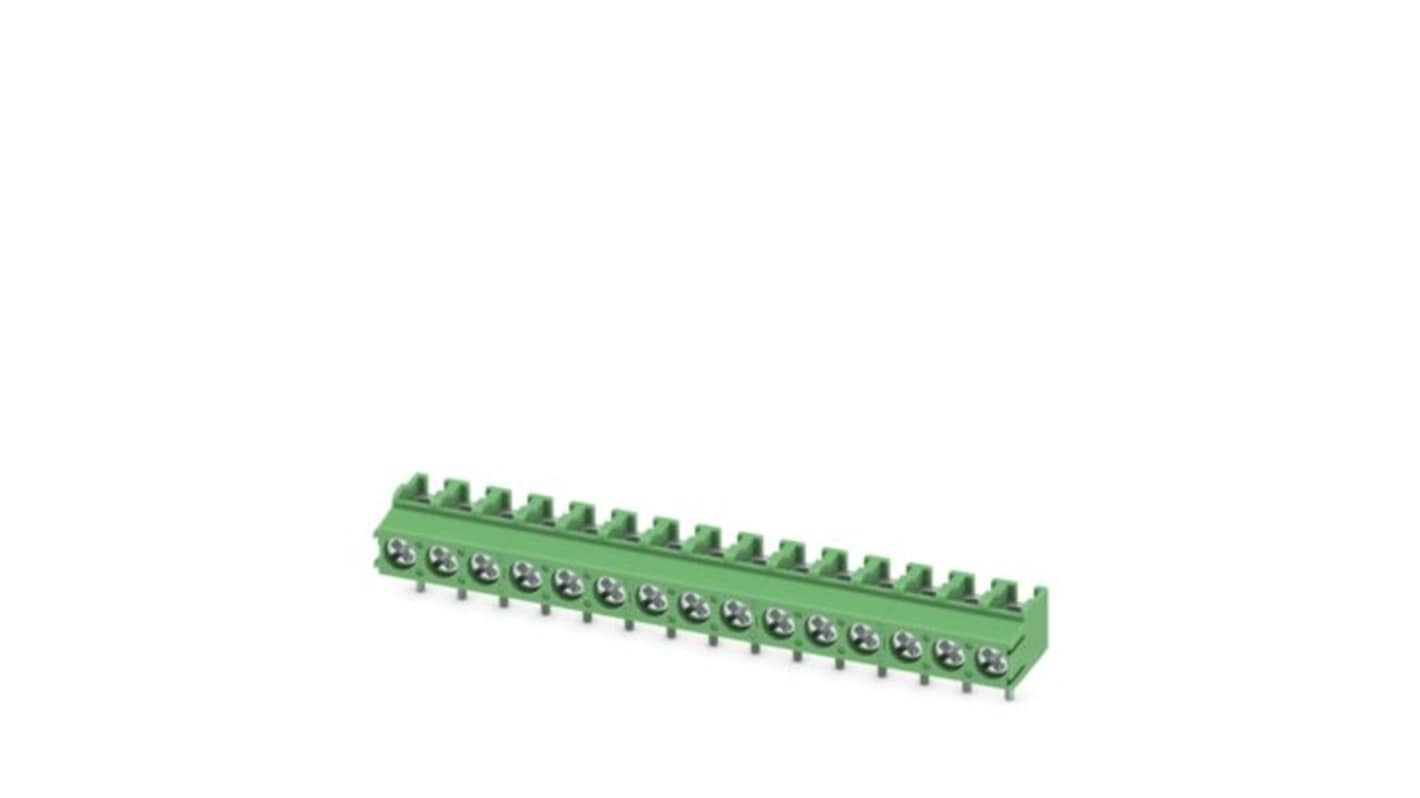

Phoenix Contact PT 1 Series PCB Terminal Block, 15-Contact, 5 mm Pitch, Wave Soldering Mount, 1 Row
- RS Stock No.:
- 520-167
- Mfr. Part No.:
- 1935446
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£136.36
(exc. VAT)
£163.63
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 11 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £136.36 | £2.727 |
*price indicative
- RS Stock No.:
- 520-167
- Mfr. Part No.:
- 1935446
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | PCB Terminal Block | |
| Number of Contacts | 15 | |
| Pitch | 5mm | |
| Current | 17.5A | |
| Number of Rows | 1 | |
| Mount Type | Wave Soldering Mount | |
| Minimum Wire Size mm² | 0.2mm² | |
| Housing Material | Polyamide | |
| Maximum Wire Size mm² | 2.5mm² | |
| Minimum Wire Size AWG | 26AWG | |
| Maximum Wire Size AWG | 14AWG | |
| Orientation | 90° | |
| Colour | Green | |
| Wire Connection Method | Screw | |
| Voltage | 40V | |
| Width | 75mm | |
| Standards/Approvals | VDE report with production monitoring, VDE approval of drawings, cULus Recognised | |
| Length | 11.4mm | |
| Series | PT 1 | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type PCB Terminal Block | ||
Number of Contacts 15 | ||
Pitch 5mm | ||
Current 17.5A | ||
Number of Rows 1 | ||
Mount Type Wave Soldering Mount | ||
Minimum Wire Size mm² 0.2mm² | ||
Housing Material Polyamide | ||
Maximum Wire Size mm² 2.5mm² | ||
Minimum Wire Size AWG 26AWG | ||
Maximum Wire Size AWG 14AWG | ||
Orientation 90° | ||
Colour Green | ||
Wire Connection Method Screw | ||
Voltage 40V | ||
Width 75mm | ||
Standards/Approvals VDE report with production monitoring, VDE approval of drawings, cULus Recognised | ||
Length 11.4mm | ||
Series PT 1 | ||
- COO (Country of Origin):
- CN
The Phoenix Contact printed circuit board terminal block stands as a versatile solution designed for efficient electrical connectivity in various applications. Engineered for durability and efficiency, this terminal block offers a robust design that accommodates a nominal current of 17.5 A and a rated voltage of 400 V, making it suitable for demanding environments. Its clever construction with a linear pin layout and a practical pitch of 5 mm allows for seamless integration into PCB designs, while the streamlined screw connection method ensures secure conductor attachments. The green housing not only adds an aesthetic appeal but also signifies compliance with environmental standards, enhancing its reliability in sensitive installations. This terminal block strikes an optimal balance between performance and usability, making it a preferred choice for professionals seeking reliable electrical connections.
Well-known connection principle allows for universal applications
Retains low temperature rise even under maximum contact force
Facilitates connection of two conductors simultaneously
Versatile design enables multiple configurations through side latching
Packed in sustainable cardboard, aligning with eco-friendly practices
Compliant with stringent WEEE/RoHS guidelines
Enhanced mechanical stability with effective pull-out test results
Suitable for a broad range of ambient temperatures for versatile use
