Phoenix Contact PTDA 1 Series PCB Connector, 22-Contact, 3.5 mm Pitch, 1 Row
- RS Stock No.:
- 520-079
- Mfr. Part No.:
- 1725224
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£409.09
(exc. VAT)
£490.91
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 26 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £409.09 | £8.182 |
*price indicative
- RS Stock No.:
- 520-079
- Mfr. Part No.:
- 1725224
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Number of Contacts | 22 | |
| Product Type | PCB Connector | |
| Pitch | 3.5mm | |
| Current | 8A | |
| Number of Rows | 1 | |
| Housing Material | Polyamide | |
| Minimum Wire Size mm² | 0.2mm² | |
| Maximum Wire Size mm² | 1.5mm² | |
| Minimum Wire Size AWG | 24AWG | |
| Maximum Wire Size AWG | 16AWG | |
| Orientation | 45° | |
| Wire Connection Method | Push-in Spring | |
| Colour | Green | |
| Voltage | 24V | |
| Series | PTDA 1 | |
| Standards/Approvals | cULus Recognised, EN 60695-2-12, EN 60695-2-13, IEC 60068-2-6:1995-03, IEC 60068-2-70:1995-12, IEC 60512-1-1:2002-02, IEC 60512-1-2:2002-02, IEC 60512-13-2:2006-02, IEC 60512-3-1:2002-02, IEC 60512-5-1:2002-02, IEC 60512-5:1992-08, IEC 60664-1:2007-04, IEC 60999-1:1999-11, ISO 6988:1985-02, REACH, RoHS, UL 94 V0 | |
| Length | 20mm | |
| Width | 39.9mm | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Number of Contacts 22 | ||
Product Type PCB Connector | ||
Pitch 3.5mm | ||
Current 8A | ||
Number of Rows 1 | ||
Housing Material Polyamide | ||
Minimum Wire Size mm² 0.2mm² | ||
Maximum Wire Size mm² 1.5mm² | ||
Minimum Wire Size AWG 24AWG | ||
Maximum Wire Size AWG 16AWG | ||
Orientation 45° | ||
Wire Connection Method Push-in Spring | ||
Colour Green | ||
Voltage 24V | ||
Series PTDA 1 | ||
Standards/Approvals cULus Recognised, EN 60695-2-12, EN 60695-2-13, IEC 60068-2-6:1995-03, IEC 60068-2-70:1995-12, IEC 60512-1-1:2002-02, IEC 60512-1-2:2002-02, IEC 60512-13-2:2006-02, IEC 60512-3-1:2002-02, IEC 60512-5-1:2002-02, IEC 60512-5:1992-08, IEC 60664-1:2007-04, IEC 60999-1:1999-11, ISO 6988:1985-02, REACH, RoHS, UL 94 V0 | ||
Length 20mm | ||
Width 39.9mm | ||
- COO (Country of Origin):
- PL

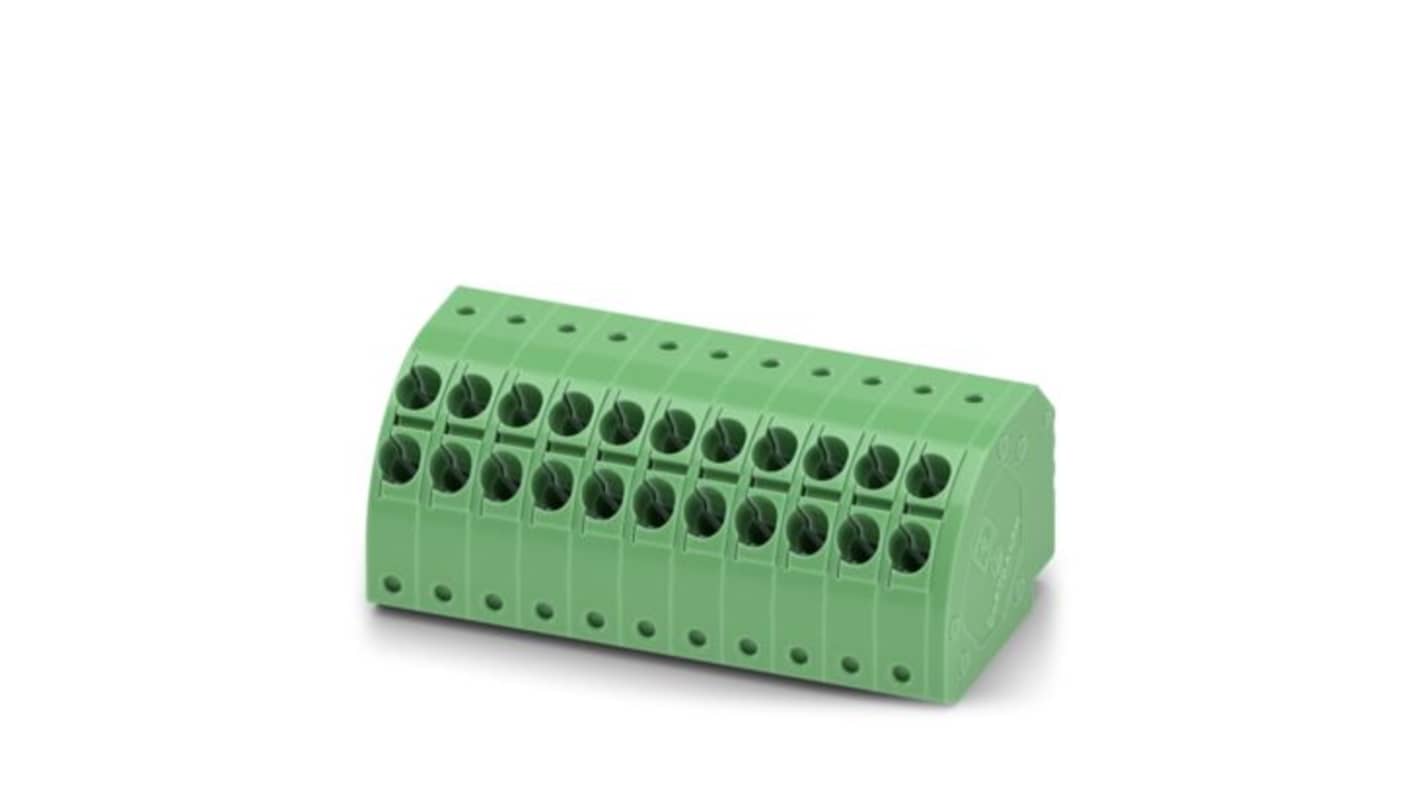

The Phoenix Contact PCB connector from the PTDA 1.5/-PH series offers a reliable and efficient solution for electrical connections. Designed with a pitch of 3.5 mm and featuring a high-current capacity of 8 A, it ensures stable performance in various applications. Incorporating a user-friendly push-in spring connection method, this connector eliminates the need for additional tools during installation. With 11 positions and 22 connections, it is ideally suited for sophisticated connector systems. The robust quality and detailed design reflect the precision engineering typically associated with phoenix contact's products, making this connector a dependable choice for both professional and industrial uses.
Simplifies the assembly process by allowing for tool-free connections
Ensures long-term stability with a defined contact force
Facilitates easy potential looping, making it perfect for BUS applications
Includes an integrated test option for quick and convenient testing
Designed for flexibility with a rounded profile suitable for individual device designs
Offers excellent mechanical stability through innovative pin layout design
