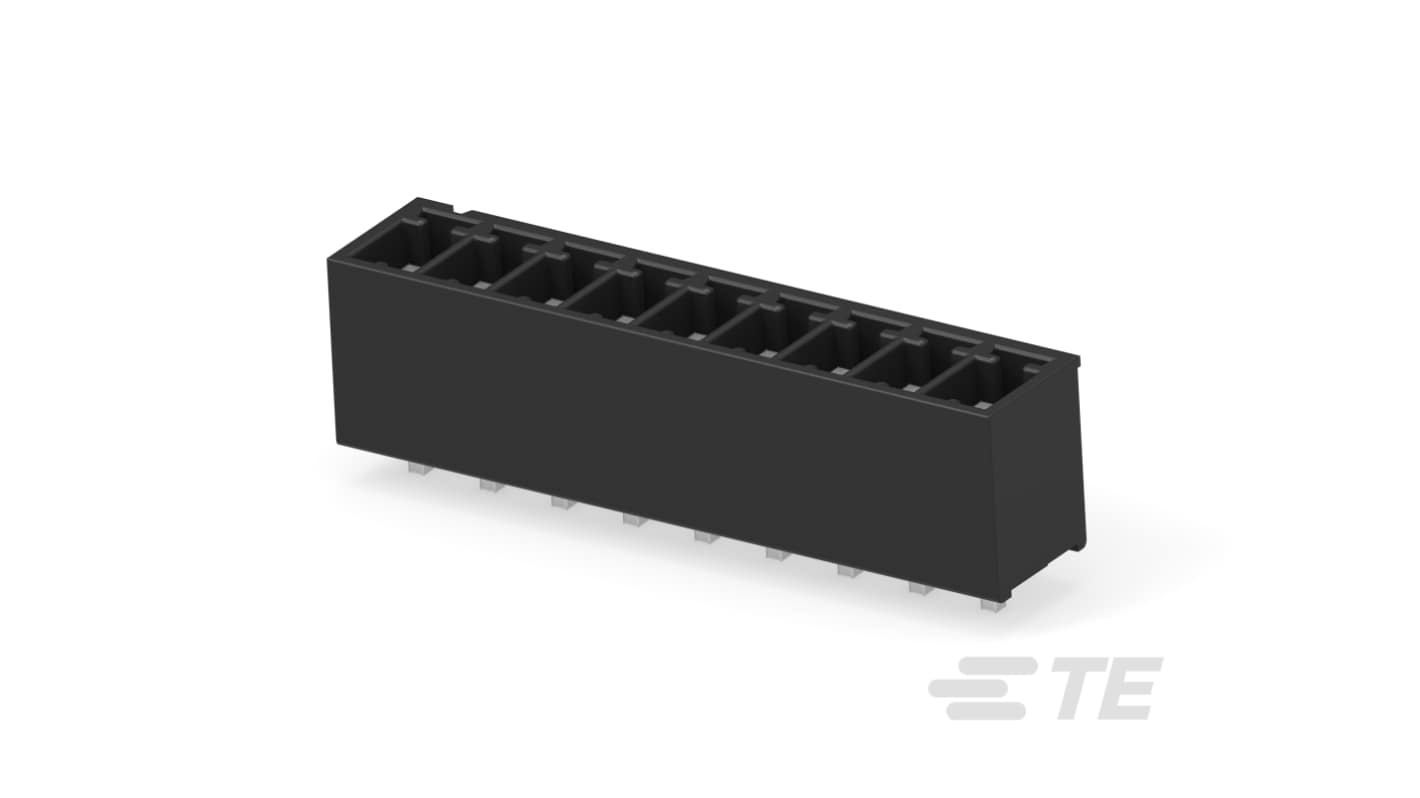

TE Connectivity Buchanan Series PCB Terminal Block, 9-Contact, 3.81 mm Pitch, Board, 1 Row Solder
- RS Stock No.:
- 476-168
- Distrelec Article No.:
- 304-59-585
- Mfr. Part No.:
- 2342078-9
- Brand:
- TE Connectivity
Subtotal (1 box of 8 units)*
£184.35
(exc. VAT)
£221.22
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 27 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £184.35 | £23.044 |
*price indicative
- RS Stock No.:
- 476-168
- Distrelec Article No.:
- 304-59-585
- Mfr. Part No.:
- 2342078-9
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | PCB Terminal Block | |
| Number of Contacts | 9 | |
| Pitch | 3.81mm | |
| Number of Rows | 1 | |
| Current | 11A | |
| Mount Type | Board | |
| Housing Material | Polyamide | |
| Connector Gender | Male | |
| Orientation | Vertical | |
| Colour | Black | |
| Termination Type | Solder | |
| Contact Gender | Male | |
| Voltage | 30V | |
| Standards/Approvals | China RoHS 2 MIIT Order No 32, 2016 No Restricted Materials Above Threshold, EU REACH (EC) No. 1907/2006, EU RoHS 2011/65/EU, EU ELV 2000/53/EC | |
| Series | Buchanan | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type PCB Terminal Block | ||
Number of Contacts 9 | ||
Pitch 3.81mm | ||
Number of Rows 1 | ||
Current 11A | ||
Mount Type Board | ||
Housing Material Polyamide | ||
Connector Gender Male | ||
Orientation Vertical | ||
Colour Black | ||
Termination Type Solder | ||
Contact Gender Male | ||
Voltage 30V | ||
Standards/Approvals China RoHS 2 MIIT Order No 32, 2016 No Restricted Materials Above Threshold, EU REACH (EC) No. 1907/2006, EU RoHS 2011/65/EU, EU ELV 2000/53/EC | ||
Series Buchanan | ||
- COO (Country of Origin):
- IT
The TE Connectivity 9 Position PCB Terminal Block offers a reliable solution for wire-to-board connections, ensuring robust electrical performance with an impressive operating voltage of 300 VAC. Designed for vertical applications, this terminal block integrates seamlessly into various printed circuit board layouts, optimising space while maintaining high functionality. The fully shrouded header type enhances safety and contributes to improved durability. Its compact 3.81 mm centreline spacing makes it ideal for use in tighter spaces without compromising performance. Made from high-temperature polyamide, the housing material displays exceptional resilience, providing long-lasting reliability in demanding conditions. This product meets stringent compliance standards, assuring users of its environmental and safety credentials.
Custom designed for efficient power and signal applications
Vertical orientation allows for streamlined installation in space constrained environments
High temperature polyamide construction ensures durability against harsh conditions
Side stackable configuration provides flexibility in circuit design
Compatible with a range of parts for seamless integration into existing systems
Low halogen content supports eco friendly practices
Presents a tin plated contact mating area for superior electrical connectivity
Solder through hole termination method maximises mechanical stability
