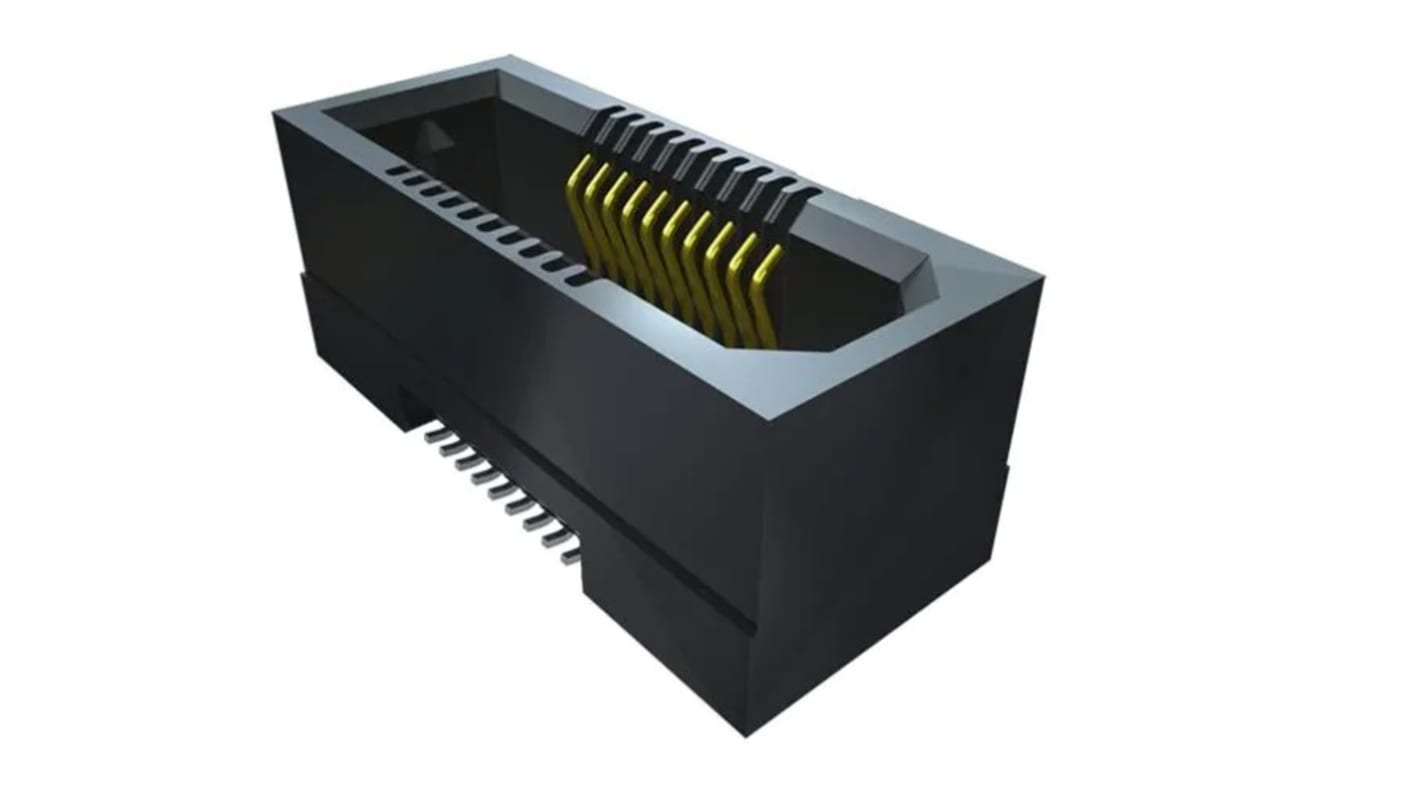

Samtec ERF5 Series Straight Surface PCB Socket, 140-Contact, 2 Row, 0.5 mm Pitch Solder
- RS Stock No.:
- 227-1149
- Mfr. Part No.:
- ERF5-070-07.0-L-DV-K-TR
- Brand:
- Samtec
Bulk discount available
Subtotal (1 unit)*
£9.09
(exc. VAT)
£10.91
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 19 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £9.09 |
| 10 - 24 | £8.27 |
| 25 - 49 | £7.57 |
| 50 - 99 | £6.99 |
| 100 + | £6.49 |
*price indicative
- RS Stock No.:
- 227-1149
- Mfr. Part No.:
- ERF5-070-07.0-L-DV-K-TR
- Brand:
- Samtec
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Samtec | |
| Product Type | PCB Socket | |
| Number of Contacts | 140 | |
| Sub Type | High Speed Socket Strip | |
| Number of Rows | 2 | |
| Pitch | 0.5mm | |
| Current | 1.6A | |
| Termination Type | Solder | |
| Housing Material | Liquid Crystal Polymer | |
| Mount Type | Surface | |
| Orientation | Straight | |
| Connector System | Board-to-Board | |
| Stacking Height | 12mm | |
| Voltage | 194 V | |
| Series | ERF5 | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 125°C | |
| Contact Material | Beryllium Copper Alloy | |
| Contact Plating | Gold | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand Samtec | ||
Product Type PCB Socket | ||
Number of Contacts 140 | ||
Sub Type High Speed Socket Strip | ||
Number of Rows 2 | ||
Pitch 0.5mm | ||
Current 1.6A | ||
Termination Type Solder | ||
Housing Material Liquid Crystal Polymer | ||
Mount Type Surface | ||
Orientation Straight | ||
Connector System Board-to-Board | ||
Stacking Height 12mm | ||
Voltage 194 V | ||
Series ERF5 | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 125°C | ||
Contact Material Beryllium Copper Alloy | ||
Contact Plating Gold | ||
Standards/Approvals No | ||
The Samtec ERF5 series 0.5mm rugged hig-speed socket has 70 positions per row and 7mm body height. It has 0.000254mm light selective gold on contact and matte tin on tail.
Polyimide film pad
Tape and reel packaging
