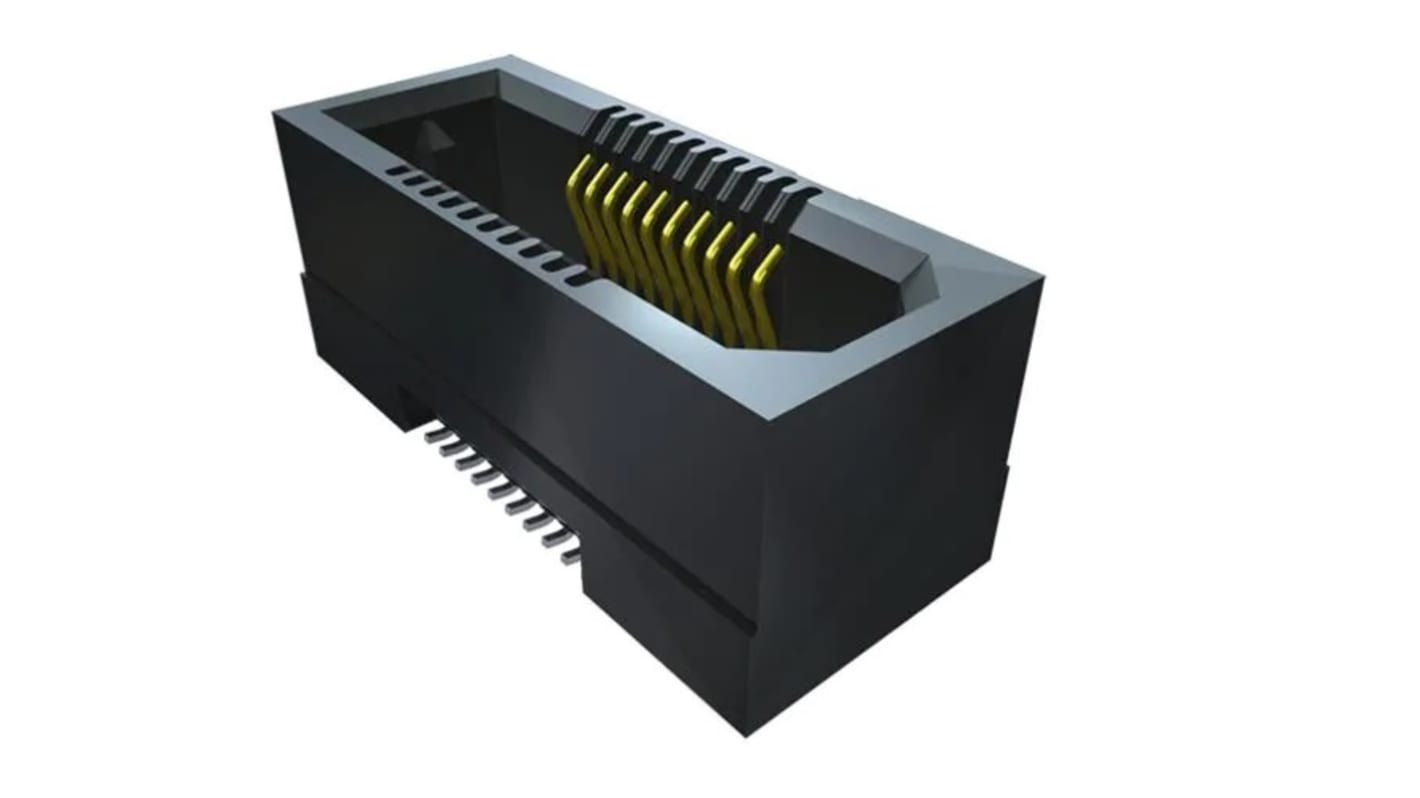

Samtec ERF5 Series Straight Surface PCB Socket, 140-Contact, 2 Row, 0.5 mm Pitch Solder
- RS Stock No.:
- 227-1148
- Mfr. Part No.:
- ERF5-070-07.0-L-DV-K-TR
- Brand:
- Samtec
Subtotal (1 reel of 325 units)*
£1,217.125
(exc. VAT)
£1,460.55
(inc. VAT)
Add 325 units to get free delivery
Temporarily out of stock
- Shipping from 19 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 325 + | £3.745 | £1,217.13 |
*price indicative
- RS Stock No.:
- 227-1148
- Mfr. Part No.:
- ERF5-070-07.0-L-DV-K-TR
- Brand:
- Samtec
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Samtec | |
| Number of Contacts | 140 | |
| Product Type | PCB Socket | |
| Number of Rows | 2 | |
| Sub Type | High Speed Socket Strip | |
| Pitch | 0.5mm | |
| Current | 1.6A | |
| Termination Type | Solder | |
| Housing Material | Liquid Crystal Polymer | |
| Mount Type | Surface | |
| Orientation | Straight | |
| Stacking Height | 12mm | |
| Connector System | Board-to-Board | |
| Voltage | 194 V | |
| Series | ERF5 | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 125°C | |
| Contact Plating | Gold | |
| Contact Material | Beryllium Copper Alloy | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand Samtec | ||
Number of Contacts 140 | ||
Product Type PCB Socket | ||
Number of Rows 2 | ||
Sub Type High Speed Socket Strip | ||
Pitch 0.5mm | ||
Current 1.6A | ||
Termination Type Solder | ||
Housing Material Liquid Crystal Polymer | ||
Mount Type Surface | ||
Orientation Straight | ||
Stacking Height 12mm | ||
Connector System Board-to-Board | ||
Voltage 194 V | ||
Series ERF5 | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 125°C | ||
Contact Plating Gold | ||
Contact Material Beryllium Copper Alloy | ||
Standards/Approvals No | ||
The Samtec ERF5 series 0.5mm rugged hig-speed socket has 70 positions per row and 7mm body height. It has 0.000254mm light selective gold on contact and matte tin on tail.
Polyimide film pad
Tape and reel packaging
