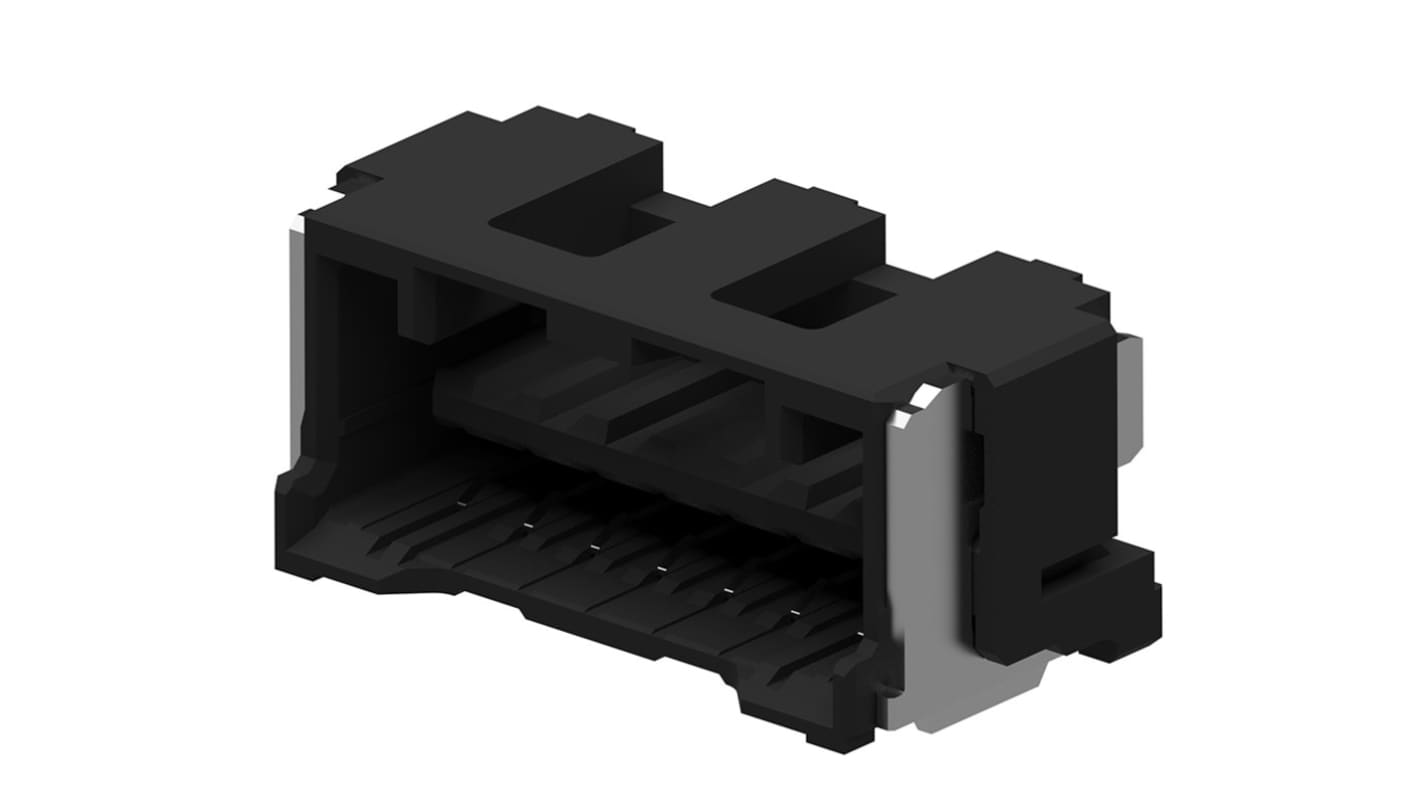

Molex 50258 Series Right Angle Board PCB Socket, 3-Contact, 1 Row, 1.5 mm Pitch Surface Mount
- RS Stock No.:
- 505-843
- Mfr. Part No.:
- 502585-0371
- Brand:
- Molex
Subtotal (1 reel of 1000 units)*
£470.57
(exc. VAT)
£564.68
(inc. VAT)
FREE delivery for orders over £50.00
Stock information currently inaccessible
Reel(s) | Per Reel | Per unit* |
|---|---|---|
| 1 + | £470.57 | £0.471 |
*price indicative
- RS Stock No.:
- 505-843
- Mfr. Part No.:
- 502585-0371
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Product Type | PCB Socket | |
| Number of Contacts | 3 | |
| Sub Type | PCB Receptacle | |
| Number of Rows | 1 | |
| Pitch | 1.5mm | |
| Current | 2A | |
| Termination Type | Surface Mount | |
| Mount Type | Board | |
| Orientation | Right Angle | |
| Voltage | 100 V | |
| Series | 50258 | |
| Row Pitch | 1.5mm | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 105°C | |
| Contact Material | Copper Alloy | |
| Contact Plating | Tin | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Product Type PCB Socket | ||
Number of Contacts 3 | ||
Sub Type PCB Receptacle | ||
Number of Rows 1 | ||
Pitch 1.5mm | ||
Current 2A | ||
Termination Type Surface Mount | ||
Mount Type Board | ||
Orientation Right Angle | ||
Voltage 100 V | ||
Series 50258 | ||
Row Pitch 1.5mm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 105°C | ||
Contact Material Copper Alloy | ||
Contact Plating Tin | ||
Standards/Approvals No | ||
- COO (Country of Origin):
- JP
The TE Connectivity PCB Receptacle stands as a reliable solution engineered for high-performance environments. This meticulously designed component caters specifically to applications requiring a secure signal and wire-to-board connection. With its right-angle orientation and robust surface mount design, it ensures ease of integration into various PCB layouts. Crafted from durable materials, the receptacle exhibits exceptional resistance to wear and tear, thus promising a long operational lifespan. The positive locking mechanism enhances stability during mating, making it ideal for applications where reliability is paramount. Additionally, the product's compliance with international standards underscores its commitment to quality and safety, assuring users of its dependable performance in diverse conditions.
Engineered for high-performance applications that demand reliability
Offers a space-saving right-angle design for efficient PCB layouts
Incorporates a secure locking mechanism to prevent accidental disconnections
Made from durable materials that ensure long-term performance
Supports a wide temperature range, catering to varied operational environments
Designed to facilitate easy integration into complex systems
