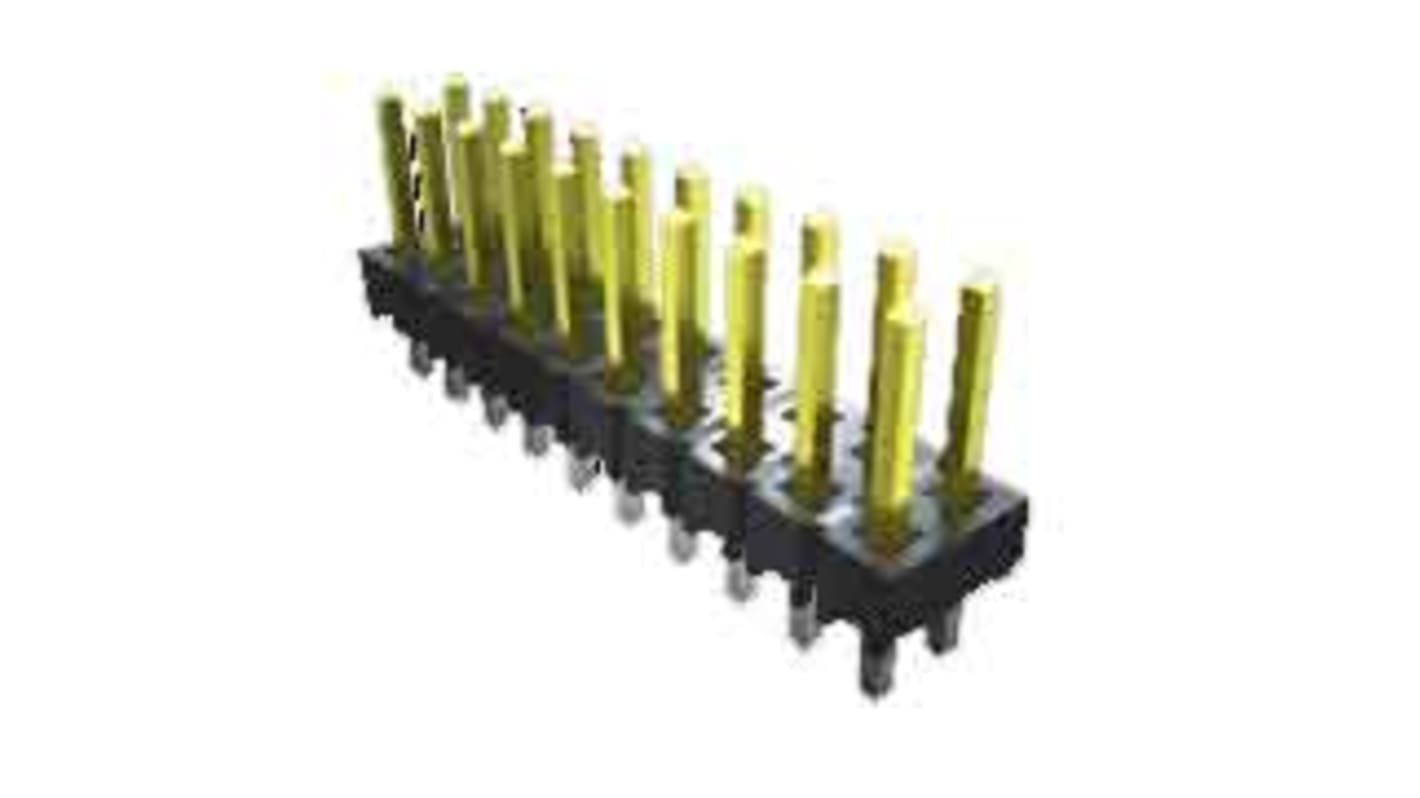

Samtec TSW Series Straight Through Hole Pin Header, 34 Contact(s), 2.54mm Pitch, 2 Row(s), Unshrouded
- RS Stock No.:
- 180-2714
- Mfr. Part No.:
- TSW-117-07-L-D
- Brand:
- Samtec
5 In stock - FREE next working day delivery available
Added
Price Each (In a Pack of 5)
£2.126
(exc. VAT)
£2.551
(inc. VAT)
| Units | Per unit | Per Pack* |
| 5 - 20 | £2.126 | £10.63 |
| 25 - 45 | £1.954 | £9.77 |
| 50 - 95 | £1.804 | £9.02 |
| 100 - 245 | £1.682 | £8.41 |
| 250 + | £1.57 | £7.85 |
| *price indicative | ||
- RS Stock No.:
- 180-2714
- Mfr. Part No.:
- TSW-117-07-L-D
- Brand:
- Samtec
Technical Reference
Legislation and Compliance
Product Details
Pitch: .100" (2.54 mm)
Contact System: .025" (0.635 mm) square post
Orientation: Vertical, right-angle
Termination: Through-hole
Application: Industry's largest variety of standard pin counts, terminal lengths and options
Special Features: Many options for optimizing cost and performance with platings and ruggedizing features
Contact System: .025" (0.635 mm) square post
Orientation: Vertical, right-angle
Termination: Through-hole
Application: Industry's largest variety of standard pin counts, terminal lengths and options
Special Features: Many options for optimizing cost and performance with platings and ruggedizing features
Specifications
Attribute | Value |
|---|---|
| Series | TSW |
| Pitch | 2.54mm |
| Number of Contacts | 34 |
| Number of Rows | 2 |
| Body Orientation | Straight |
| Shrouded/Unshrouded | Unshrouded |
| Mounting Type | Through Hole |
| Connector System | Board to Board |
| Termination Method | Solder |
| Contact Plating | Gold |
| Contact Material | Phosphor Bronze |
| Current Rating | 4.3A |
| Tail Pin Length | 2.54mm |
| Mating Pin Length | 5.84mm |
| Voltage Rating | 400.0 V , 500.0 V ac, 550.0 V ac |
