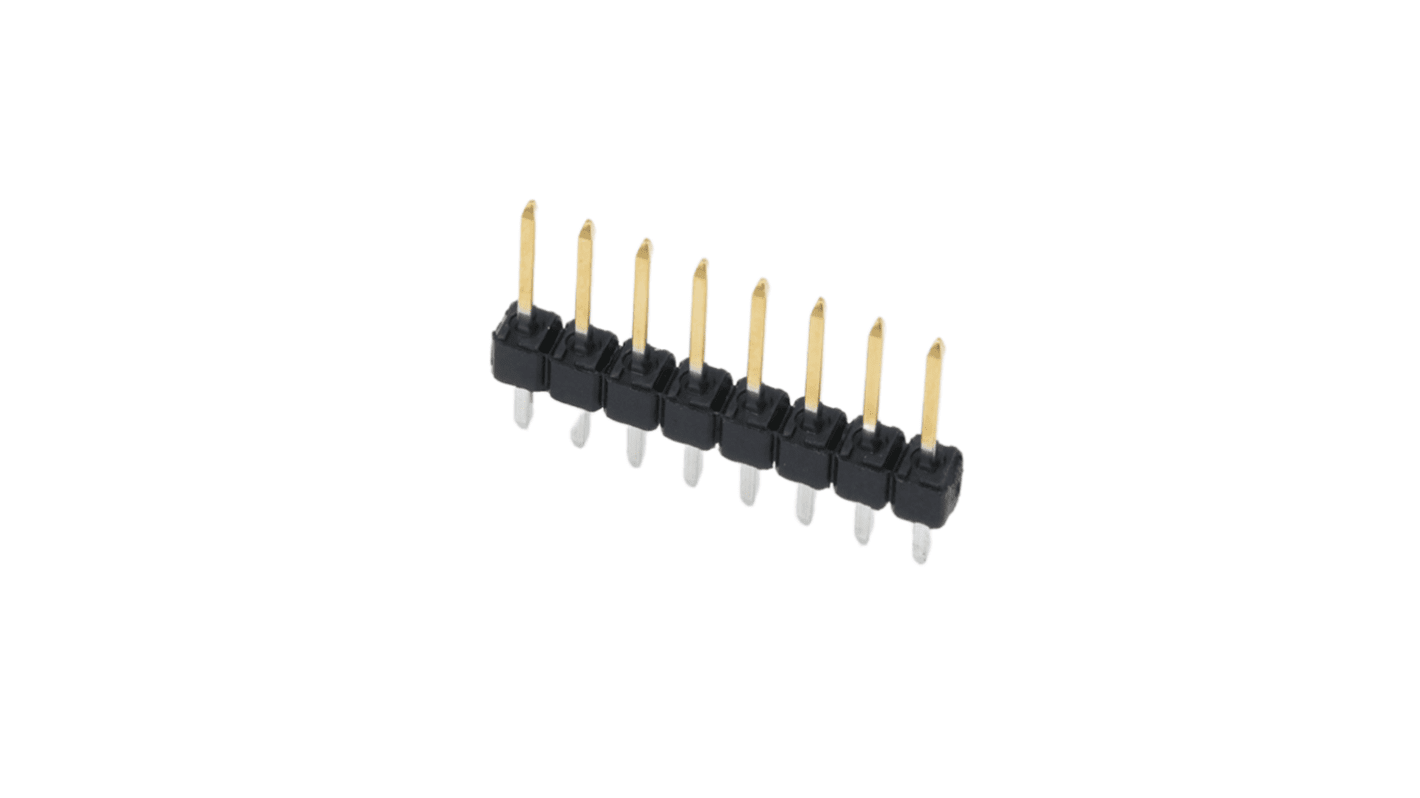

Molex 42375 Series Vertical PCB Mount PCB Header, 8 Contact(s), 2.54mm Pitch, 1 Row(s), Unshrouded
- RS Stock No.:
- 684-853
- Mfr. Part No.:
- 22-28-4086
- Brand:
- Molex
Subtotal (1 bag of 300 units)*
£184.61
(exc. VAT)
£221.53
(inc. VAT)
Stock information currently inaccessible
Bag(s) | Per Bag | Per unit* |
---|---|---|
1 + | £184.61 | £0.615 |
*price indicative
- RS Stock No.:
- 684-853
- Mfr. Part No.:
- 22-28-4086
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Molex | |
Series | 42375 | |
Pitch | 2.54mm | |
Number of Contacts | 8 | |
Number of Rows | 1 | |
Body Orientation | Vertical | |
Shrouded/Unshrouded | Unshrouded | |
Mounting Type | PCB Mount | |
Select all | ||
---|---|---|
Brand Molex | ||
Series 42375 | ||
Pitch 2.54mm | ||
Number of Contacts 8 | ||
Number of Rows 1 | ||
Body Orientation Vertical | ||
Shrouded/Unshrouded Unshrouded | ||
Mounting Type PCB Mount | ||
- COO (Country of Origin):
- IN
The Molex KK 254 Breakaway Header designed for seamless connectivity in PCB applications, featuring 8 circuits for efficient signal transmission. This vertical header, equipped with 0.76μm gold selective plating and a mating pin length of 6.09mm, ensures reliable connections while maintaining optimal performance across various configurations. Constructed from high-temperature thermoplastic and brass, it guarantees durability and compliance with stringent industry standards. Suitable for board-to-board and wire-to-board applications, its robust design supports a maximum current of 4.0A and an operational voltage of 500V, making it an ideal choice for a wide range of electronic devices.
Supports 8 circuits for effective signal transmission
Vertical orientation optimises space on the PCB
Durable construction ensures longevity and reliability
High temperature thermoplastic material withstands demanding conditions
Compliant with industry standards for safety and quality
Designed for both board to board and wire to board applications
Operates safely at voltages up to 500V
Mates with various housing parts for flexible usage
Vertical orientation optimises space on the PCB
Durable construction ensures longevity and reliability
High temperature thermoplastic material withstands demanding conditions
Compliant with industry standards for safety and quality
Designed for both board to board and wire to board applications
Operates safely at voltages up to 500V
Mates with various housing parts for flexible usage
