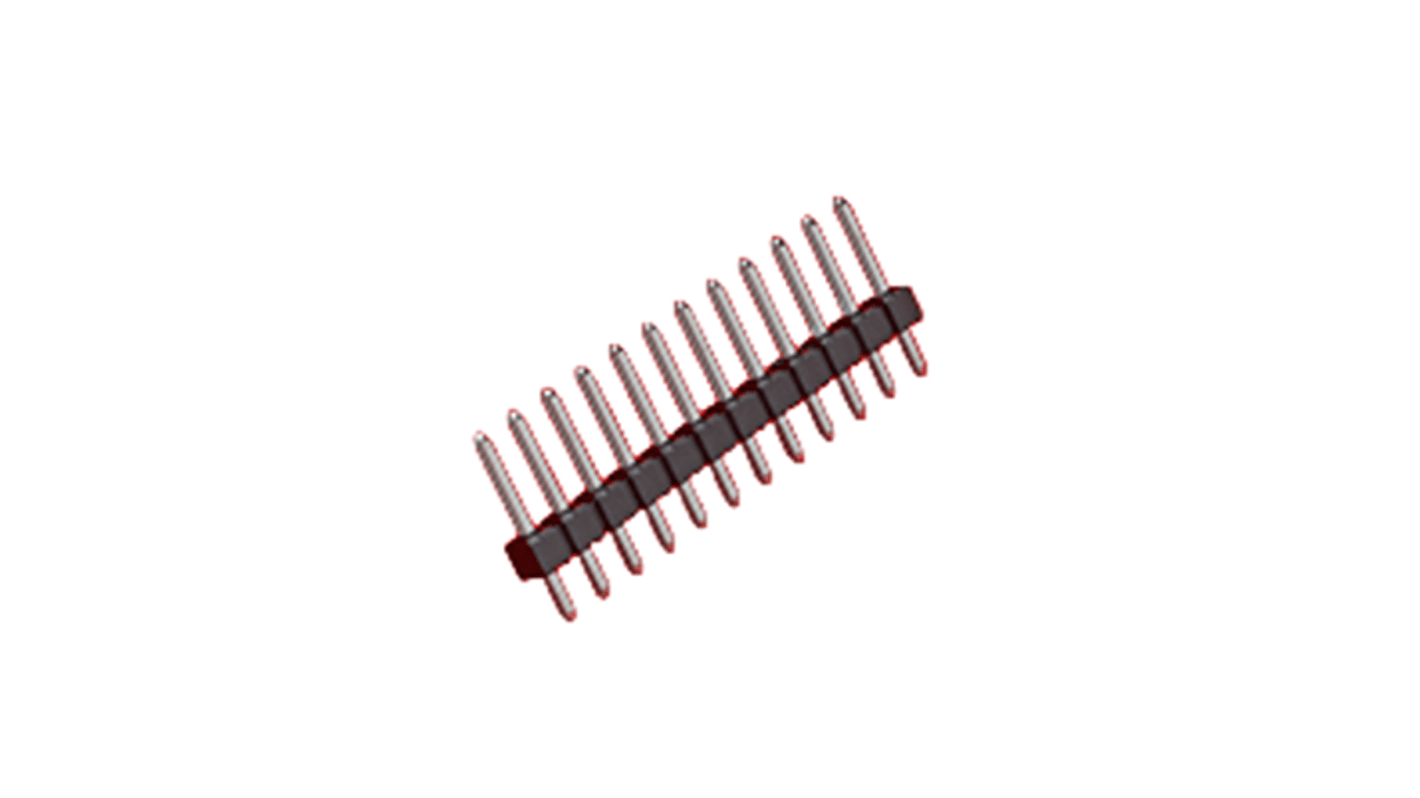

Molex 42375 Series Vertical PCB PCB Header, 30 Contact(s), 2.54 mm Pitch, 1 Row(s), Unshrouded
- RS Stock No.:
- 684-855
- Mfr. Part No.:
- 22-28-4300
- Brand:
- Molex
Subtotal (1 bag of 200 units)*
£228.58
(exc. VAT)
£274.30
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 13 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s) | Per Bag | Per unit* |
|---|---|---|
| 1 + | £228.58 | £1.143 |
*price indicative
- RS Stock No.:
- 684-855
- Mfr. Part No.:
- 22-28-4300
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Product Type | PCB Header | |
| Series | 42375 | |
| Current | 4A | |
| Pitch | 2.54mm | |
| Number of Contacts | 30 | |
| Housing Material | Nylon | |
| Number of Rows | 1 | |
| Orientation | Vertical | |
| Shrouded/Unshrouded | Unshrouded | |
| Mount Type | PCB | |
| Contact Plating | Gold | |
| Contact Material | Brass | |
| Row Pitch | 2.54mm | |
| Termination Type | Solder | |
| Tail Pin Length | 3.05mm | |
| Standards/Approvals | RoHS | |
| Voltage | 500 V | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Product Type PCB Header | ||
Series 42375 | ||
Current 4A | ||
Pitch 2.54mm | ||
Number of Contacts 30 | ||
Housing Material Nylon | ||
Number of Rows 1 | ||
Orientation Vertical | ||
Shrouded/Unshrouded Unshrouded | ||
Mount Type PCB | ||
Contact Plating Gold | ||
Contact Material Brass | ||
Row Pitch 2.54mm | ||
Termination Type Solder | ||
Tail Pin Length 3.05mm | ||
Standards/Approvals RoHS | ||
Voltage 500 V | ||
- COO (Country of Origin):
- IN
The Molex KK 254 Breakaway Header is engineered for high-performance PCB connections, specifically designed for board-to-board and wire-to-board applications. This vertical component features 30 circuits and is plated with tin (Sn) for excellent conductivity. Measuring a compact 6.09mm in mating pin length, it guarantees durability with a mating cycle life of up to 25 cycles. Compliant with important industry standards, the KK 254 ensures reliable performance while simplifying integration into various electronic designs, making it an ideal choice for professionals seeking a robust and effective connection solution.
30 circuits support efficient signal transfer and connectivity
Vertical orientation optimises space on PCBs
Tin plating enhances electrical conductivity for reliable performance
Durable design ensures longevity with up to 25 mating cycles
High temperature thermoplastic resin provides resilience
Through hole termination style simplifies soldering process
