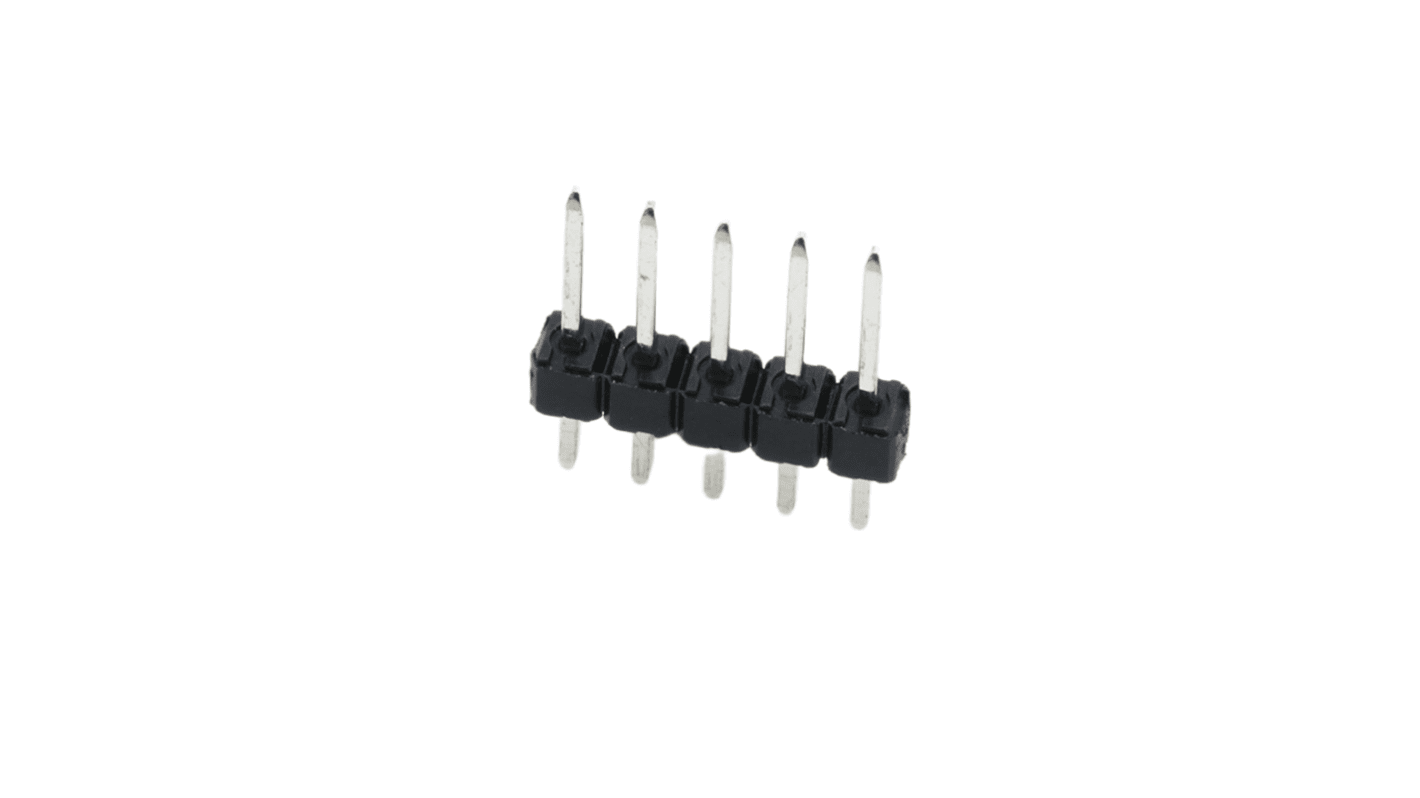

Molex 42375 Series Vertical PCB PCB Header, 5 Contact(s), 2.54 mm Pitch, 1 Row(s), Unshrouded
- RS Stock No.:
- 684-851
- Mfr. Part No.:
- 22-28-4051
- Brand:
- Molex
Subtotal (1 bag of 1200 units)*
£177.24
(exc. VAT)
£212.69
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 13 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s) | Per Bag | Per unit* |
|---|---|---|
| 1 + | £177.24 | £0.148 |
*price indicative
- RS Stock No.:
- 684-851
- Mfr. Part No.:
- 22-28-4051
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Product Type | PCB Header | |
| Series | 42375 | |
| Current | 4A | |
| Pitch | 2.54mm | |
| Housing Material | Nylon | |
| Number of Contacts | 5 | |
| Number of Rows | 1 | |
| Orientation | Vertical | |
| Shrouded/Unshrouded | Unshrouded | |
| Mount Type | PCB | |
| Contact Material | Brass | |
| Contact Plating | Gold | |
| Row Pitch | 2.54mm | |
| Termination Type | Solder | |
| Tail Pin Length | 3.05mm | |
| Standards/Approvals | RoHS | |
| Voltage | 500 V | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Product Type PCB Header | ||
Series 42375 | ||
Current 4A | ||
Pitch 2.54mm | ||
Housing Material Nylon | ||
Number of Contacts 5 | ||
Number of Rows 1 | ||
Orientation Vertical | ||
Shrouded/Unshrouded Unshrouded | ||
Mount Type PCB | ||
Contact Material Brass | ||
Contact Plating Gold | ||
Row Pitch 2.54mm | ||
Termination Type Solder | ||
Tail Pin Length 3.05mm | ||
Standards/Approvals RoHS | ||
Voltage 500 V | ||
- COO (Country of Origin):
- IN
The Molex KK 254 Breakaway Header designed for efficient board-to-board and wire-to-board connectivity in electronic applications. Featuring a vertical orientation with five circuits, this header is crafted for optimal performance with a robust tin plating on mating surfaces, ensuring excellent conductivity. The product supports a maximum current of 4.0A and voltage of 500V, allowing it to cater to varied electrical demands. Weighing only 0.343g, the header is lightweight and easy to integrate into compact designs. Additionally, its durability allows for up to 25 mating cycles, making it a reliable choice for long-lasting connections. This product is perfectly suited for PCB headers and receptacles, embodying both quality and performance to meet industry standards.
Five circuits accommodate diverse wiring needs
Tin plating ensures superior electrical conductivity
Vertical orientation saves space on PCB layouts
Durability of 25 mating cycles offers longevity
Compatible with various terminals and receptacles for versatility
Backed by industry standards, ensuring compliance and reliability
Ideal for applications such as board to board and signal connections
