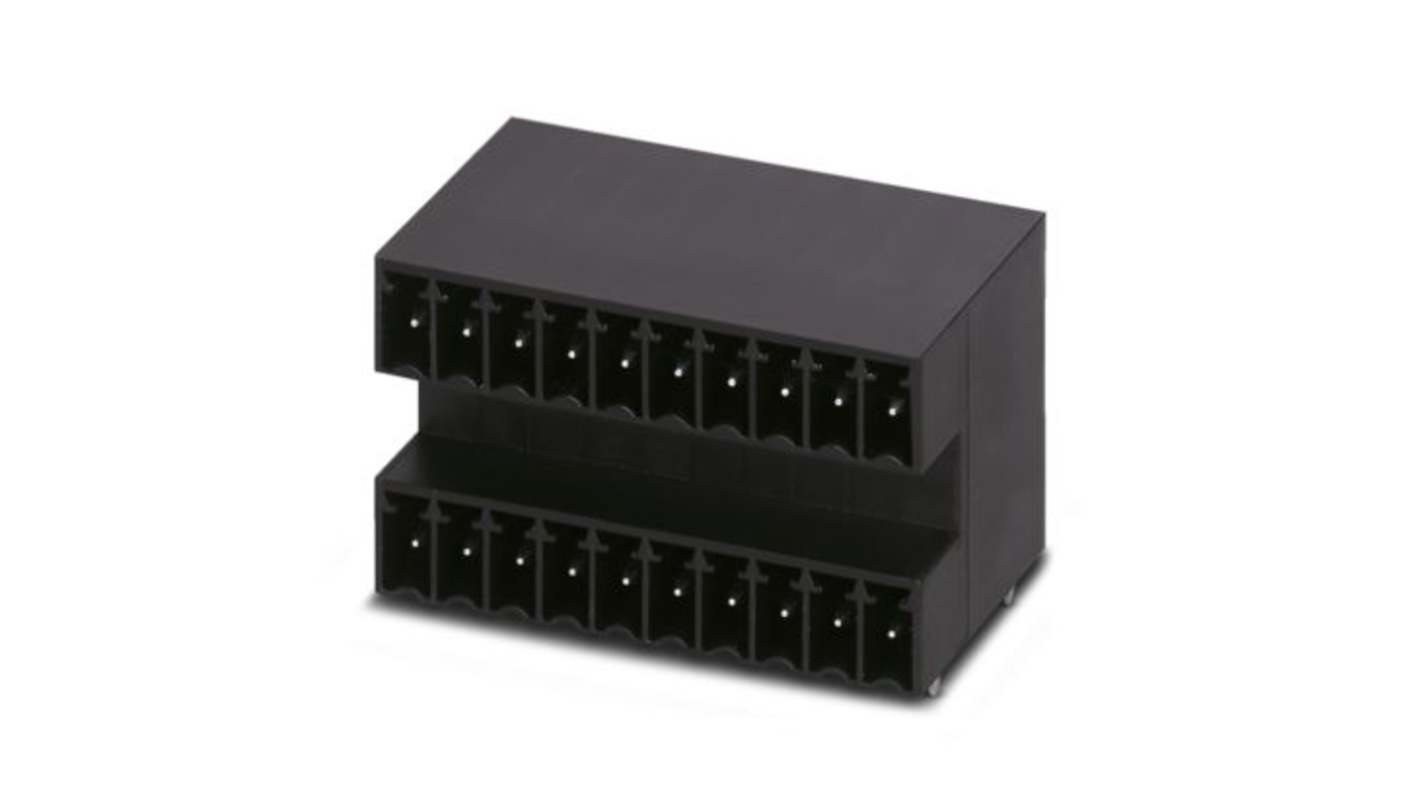

Phoenix Contact MCD Series Straight Wave Soldering Mount PCB Header, 8 Contact(s), 3.5 mm Pitch, 2 Row(s), Shrouded

View all PCB Headers

Subtotal (1 pack of 250 units)*

£441.17

(exc. VAT)

£529.40

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 16 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s)
Per Pack
Per unit*
1 +£441.17£1.765

*price indicative

RS Stock No.:
558-569
Mfr. Part No.:
1840860
Brand:
Phoenix Contact
Find similar products by selecting one or more attributes.
Select all

Brand

Phoenix Contact

Product Type

PCB Header

Series

MCD

Pitch

3.5mm

Current

8A

Number of Contacts

8

Housing Material

Polyamide

Number of Rows

2

Orientation

Straight

Shrouded/Unshrouded

Shrouded

Mount Type

Wave Soldering Mount

Connector System

COMBICON MC 1.5

Contact Material

Copper Alloy

Contact Plating

Tin Plated

Row Pitch

3.5mm

Termination Type

Solder

Minimum Operating Temperature

-40°C

Contact Gender

Male

Tail Pin Length

3.5mm

Maximum Operating Temperature

100°C

Mating Pin Length

3.5mm

Standards/Approvals

cULus Recognised

Voltage

160 V

COO (Country of Origin):
CN
The Phoenix Contact PCB header is designed to meet the demands of modern electronic applications, offering a blend of versatility and robust performance. This header is crafted for seamless integration into various device designs, allowing for flexible connection solutions through its well-recognised mounting principles. With a pitch of 3.5 mm, it supports a high contact density, ensuring that devices maintain performance without compromising on space. The dual row and multiple potential configurations make it splendidly adaptable for differing wiring needs. Crafted from durable materials and compliant with strict industry standards, this connector promises reliability in even the most demanding environments, making it an excellent choice for engineers and designers seeking dependable connectivity options.

Designed for maximum flexibility in device design

Allows for numerous connection technologies with a single header

Supports a dual-row configuration for increased connectivity options

Features a robust tin-plated surface for enhanced conductivity

Compliant with WEEE/RoHS regulations for environmentally conscious usage

Operational temperature range of -40 °C to 100 °C ensures reliability in various conditions

Offers excellent creepage and clearance distances to meet safety standards

Packed in convenient cardboard packaging for easy handling and distribution

Has a well-structured pin layout for straightforward motherboard integration
