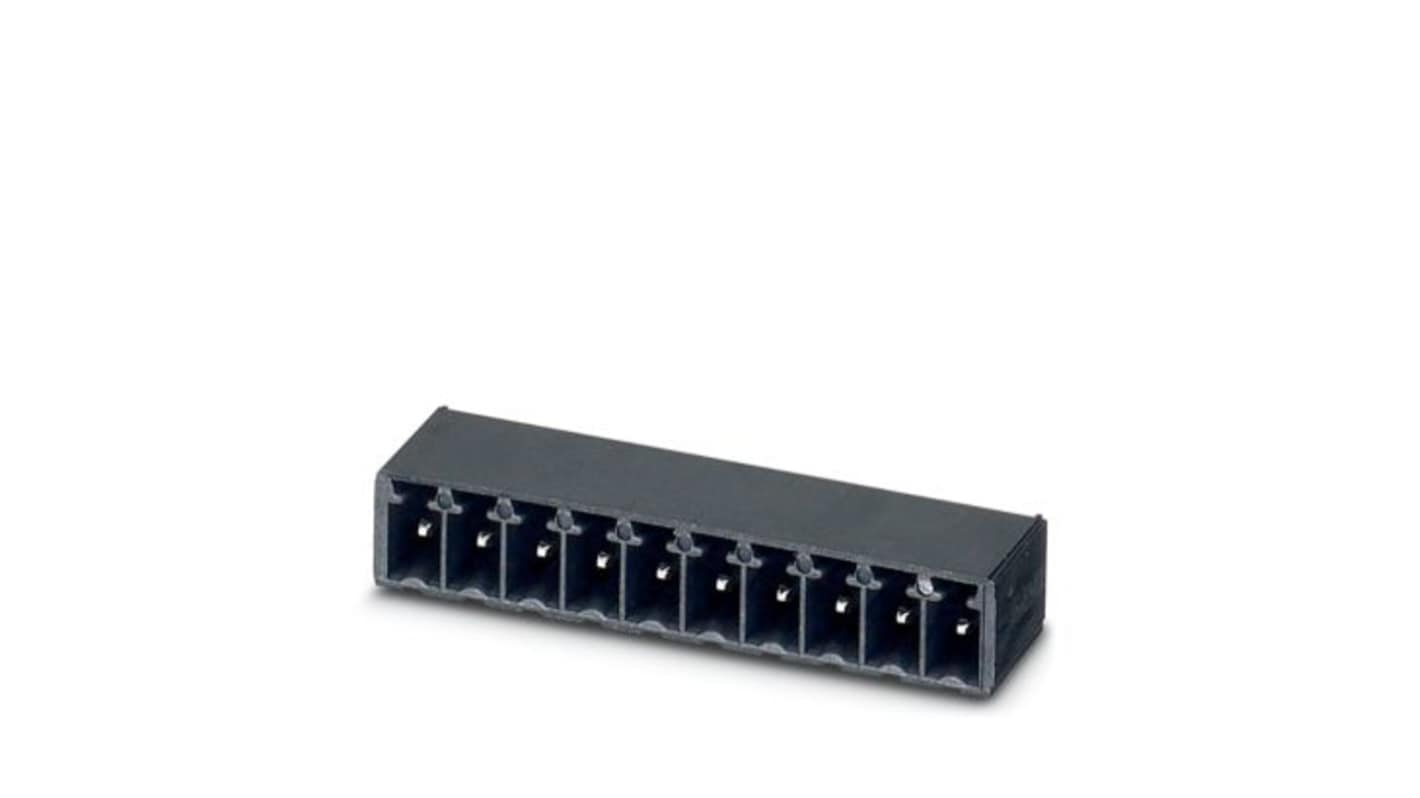

Phoenix Contact MC Series Wave Soldering Mount PCB Header, 8 Contact(s), 3.5 mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 565-735
- Mfr. Part No.:
- 1011119
- Brand:
- Phoenix Contact
Subtotal (1 pack of 330 units)*
£483.14
(exc. VAT)
£579.77
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 09 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £483.14 | £1.464 |
*price indicative
- RS Stock No.:
- 565-735
- Mfr. Part No.:
- 1011119
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | PCB Header | |
| Series | MC | |
| Current | 8A | |
| Pitch | 3.5mm | |
| Housing Material | Liquid Crystal Polymer | |
| Number of Contacts | 8 | |
| Number of Rows | 1 | |
| Shrouded/Unshrouded | Shrouded | |
| Connector System | COMBICON MC 1 | |
| Mount Type | Wave Soldering Mount | |
| Contact Material | Copper Alloy | |
| Contact Plating | Tin Plated | |
| Row Pitch | 3.5mm | |
| Termination Type | Solder | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 100°C | |
| Contact Gender | Male | |
| Tail Pin Length | 1.4mm | |
| Mating Pin Length | 1.4mm | |
| Standards/Approvals | cULus Recognised, DIN EN 61340-5-1, IEC 60068-2-70, IEC 60512-1-1, IEC 60512-1-2, IEC 60512-13-5, IEC 60512-15-1, IEC 60512-9-1, ISO 6988, VDE approval of drawings | |
| Voltage | 160 V | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type PCB Header | ||
Series MC | ||
Current 8A | ||
Pitch 3.5mm | ||
Housing Material Liquid Crystal Polymer | ||
Number of Contacts 8 | ||
Number of Rows 1 | ||
Shrouded/Unshrouded Shrouded | ||
Connector System COMBICON MC 1 | ||
Mount Type Wave Soldering Mount | ||
Contact Material Copper Alloy | ||
Contact Plating Tin Plated | ||
Row Pitch 3.5mm | ||
Termination Type Solder | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 100°C | ||
Contact Gender Male | ||
Tail Pin Length 1.4mm | ||
Mating Pin Length 1.4mm | ||
Standards/Approvals cULus Recognised, DIN EN 61340-5-1, IEC 60068-2-70, IEC 60512-1-1, IEC 60512-1-2, IEC 60512-13-5, IEC 60512-15-1, IEC 60512-9-1, ISO 6988, VDE approval of drawings | ||
Voltage 160 V | ||
- COO (Country of Origin):
- DE
The Phoenix Contact PCB header is meticulously designed to facilitate seamless integration into the SMT soldering process, ensuring a reliable connection in electronic devices. With its robust construction and high-performance specifications, it excels in diverse application environments. The innovative pin layout allows for maximum flexibility with various connection technologies, making it an ideal choice for complex circuit designs. This product is tailored to meet the demands of modern technology, providing both stability and durability. It embodies efficient engineering through its thoughtful design, ensuring ease of use and reliability under various conditions.
Constructed for optimal performance in challenging environments
Offers unparalleled flexibility for multiple connection technologies
Features a compact design for efficient circuit board layout
Allows for simple reflow and wave soldering processes
Incorporates a robust locking mechanism for secure connections
Complies with stringent environmental regulations for safe usage
Designed with precise dimensions for consistency in installation
Utilises high-quality materials to enhance longevity and durability
