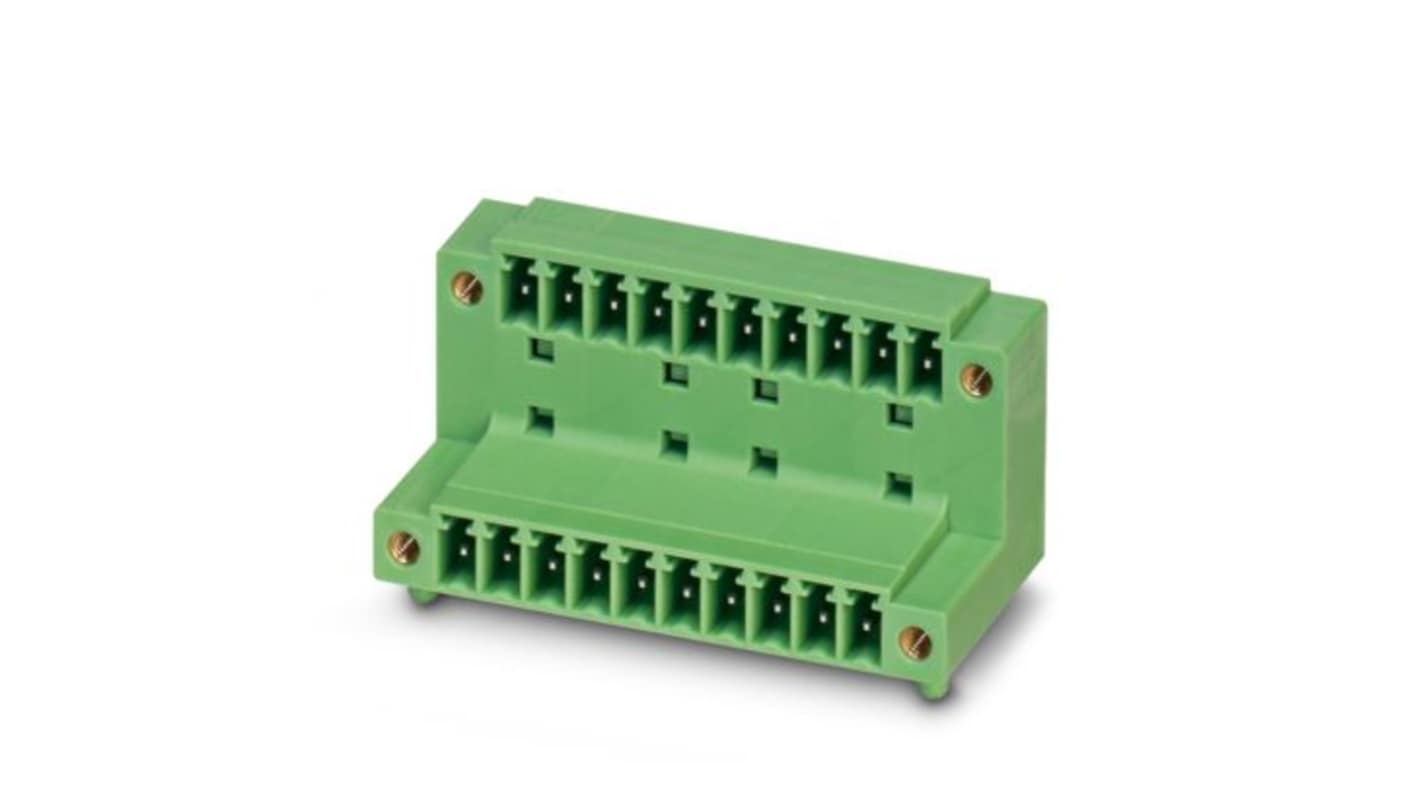

Phoenix Contact MCD Series Straight Solder PCB Header, 14 Contact(s), 3.81 mm Pitch, 2 Row(s), Shrouded

View all PCB Headers

Subtotal (1 pack of 50 units)*

£593.28

(exc. VAT)

£711.94

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 20 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s)
Per Pack
Per unit*
1 +£593.28£11.866

*price indicative

RS Stock No.:
521-467
Mfr. Part No.:
1830156
Brand:
Phoenix Contact
Find similar products by selecting one or more attributes.
Select all

Brand

Phoenix Contact

Product Type

PCB Header

Series

MCD

Current

8A

Pitch

3.81mm

Number of Contacts

14

Housing Material

Polyamide

Number of Rows

2

Orientation

Straight

Shrouded/Unshrouded

Shrouded

Connector System

COMBICON MC 1.5

Mount Type

Solder

Contact Material

Copper Alloy

Contact Plating

Tin Plated

Minimum Operating Temperature

-40°C

Row Pitch

3.81mm

Termination Type

Solder

Tail Pin Length

3.5mm

Contact Gender

Male

Maximum Operating Temperature

100°C

Mating Pin Length

3.5mm

Standards/Approvals

CSA, cULus, IEC 60068-2-70:1995-12, IEC 60068-2-82/JEDEC JESD 201, IEC 60512-1-1:2002-02, IEC 60512-1-2:2002-02, IEC 60512-13-5:2006-02, IEC 60512-15-1:2008-05, IEC 60512-3-1:2002-02, IEC 60512-5-1:2002-02, IEC 60664-1:2007-04, ISO 6988:1985-02, VDE

Voltage

160 V

COO (Country of Origin):
DE
The Phoenix Contact PCB Headers have a nominal cross-section of 1.5 mm² and come in a green colour. They support a nominal current of 8 A and a rated voltage of 160 V (III/2). The contact surface is made of tin (Sn), with a pin-type connection. These headers feature 14 potentials, 2 rows, and 7 positions, providing a total of 14 connections. They belong to the MCD 1.5/-GF product range and have a pitch of 3.81 mm. The mounting method is wave soldering.

Well known mounting principle allows worldwide use

Screwable flange for superior mechanical stability

Conductor connection on several levels enables higher contact density
