Phoenix Contact MCD Series Wave Soldering Mount PCB Header, 3 Contact(s), 3.81 mm Pitch, 2 Row(s), Shrouded
- RS Stock No.:
- 487-828
- Mfr. Part No.:
- 1227629
- Brand:
- Phoenix Contact

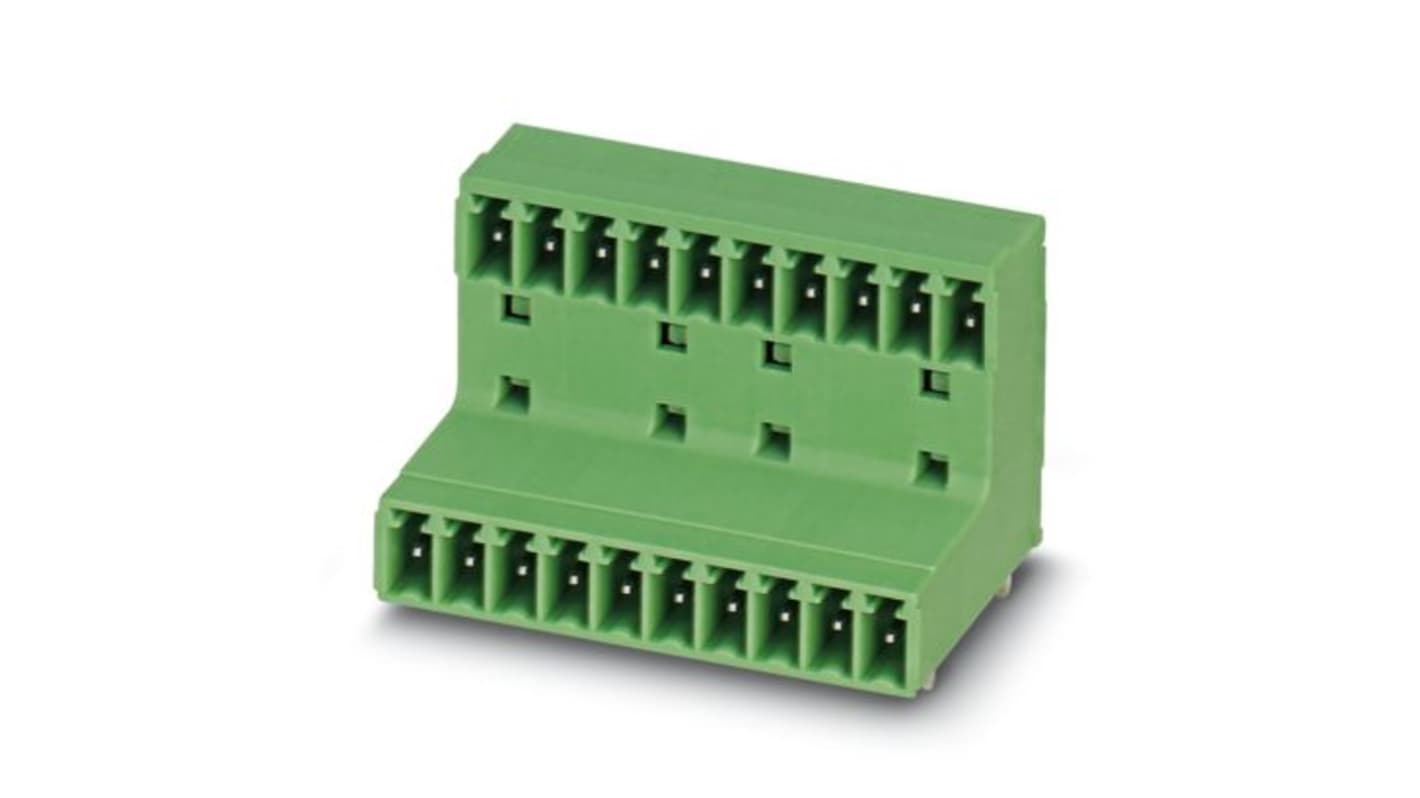

Image representative of range
Subtotal (1 pack of 1000 units)*
£1,508.57
(exc. VAT)
£1,810.28
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 26 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £1,508.57 | £1.509 |
*price indicative
- RS Stock No.:
- 487-828
- Mfr. Part No.:
- 1227629
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Series | MCD | |
| Product Type | PCB Header | |
| Pitch | 3.81mm | |
| Current | 8A | |
| Number of Contacts | 3 | |
| Housing Material | Polyamide | |
| Number of Rows | 2 | |
| Shrouded/Unshrouded | Shrouded | |
| Connector System | COMBICON MC 1.5 | |
| Mount Type | Wave Soldering Mount | |
| Contact Material | Copper Alloy | |
| Contact Plating | Tin Plated | |
| Termination Type | Solder | |
| Minimum Operating Temperature | -40°C | |
| Row Pitch | 3.81mm | |
| Contact Gender | Male | |
| Tail Pin Length | 3.5mm | |
| Maximum Operating Temperature | 100°C | |
| Standards/Approvals | cULus Recognised, VDE | |
| Mating Pin Length | 3.5mm | |
| Voltage | 160 V | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Series MCD | ||
Product Type PCB Header | ||
Pitch 3.81mm | ||
Current 8A | ||
Number of Contacts 3 | ||
Housing Material Polyamide | ||
Number of Rows 2 | ||
Shrouded/Unshrouded Shrouded | ||
Connector System COMBICON MC 1.5 | ||
Mount Type Wave Soldering Mount | ||
Contact Material Copper Alloy | ||
Contact Plating Tin Plated | ||
Termination Type Solder | ||
Minimum Operating Temperature -40°C | ||
Row Pitch 3.81mm | ||
Contact Gender Male | ||
Tail Pin Length 3.5mm | ||
Maximum Operating Temperature 100°C | ||
Standards/Approvals cULus Recognised, VDE | ||
Mating Pin Length 3.5mm | ||
Voltage 160 V | ||
- COO (Country of Origin):
- DE
The Phoenix Contact PCB header is a versatile solution designed to enhance connectivity in various electronic applications. Engineered with precision, this innovative component facilitates maximum flexibility for device design, allowing integration with different connection technologies all within a single header. Notably, its reliable construction supports nominal currents of 8 A and rated voltages up to 160 V, making it Ideal for demanding industrial environments. The robust design incorporates a dual-row configuration with linear pinning, ensuring secure and stable electrical connections while optimising space within electronic assemblies. The product's compliance with stringent standards further ensures its performance and longevity in critical applications.
Offers a streamlined design that simplifies PCB layout
Meets stringent industry standards for enhanced safety and performance
Facilitates wave soldering for efficient assembly processes
Promotes a high contact density, Ideal for Compact applications
Conforms to environmental regulations ensuring sustainable use
Produced with RoHS-compliant materials for eco-friendly operations
Provides reliable electrical connections over extended periods
Enables easy integration into a variety of electronic devices
