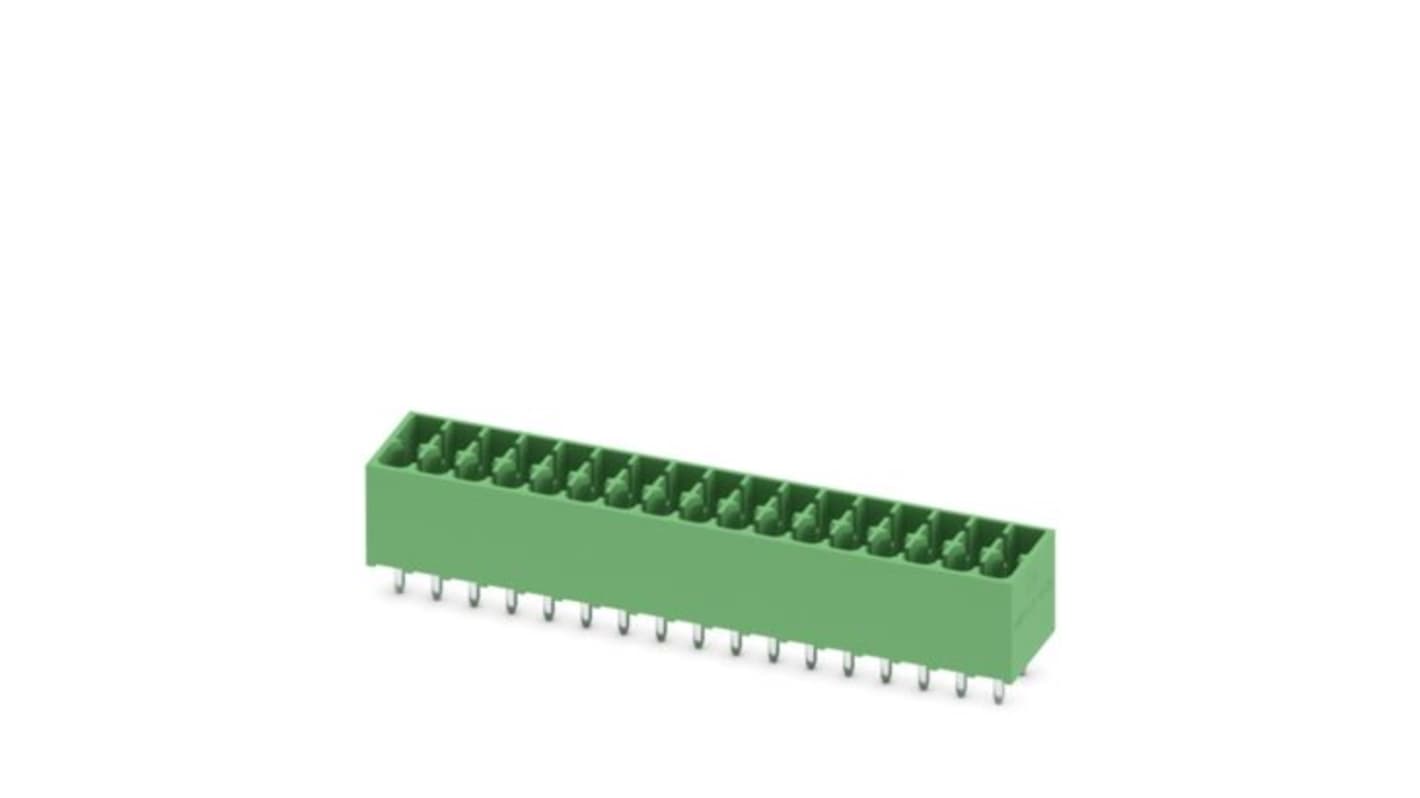

Phoenix Contact DMCV Series Wave Soldering Mount PCB Header, 34 Contact(s), 3.5 mm Pitch, 2 Row(s), Shrouded
- RS Stock No.:
- 556-063
- Mfr. Part No.:
- 1053859
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£637.01
(exc. VAT)
£764.41
(inc. VAT)
Stock information currently inaccessible
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £637.01 | £12.74 |
*price indicative
- RS Stock No.:
- 556-063
- Mfr. Part No.:
- 1053859
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | PCB Header | |
| Series | DMCV | |
| Pitch | 3.5mm | |
| Current | 8A | |
| Number of Contacts | 34 | |
| Housing Material | Polybutylene Terephthalate | |
| Number of Rows | 2 | |
| Shrouded/Unshrouded | Shrouded | |
| Connector System | COMBICON DFMC 1 | |
| Mount Type | Wave Soldering Mount | |
| Contact Material | Copper Alloy | |
| Contact Plating | Tin Plated | |
| Row Pitch | 3.5mm | |
| Minimum Operating Temperature | -40°C | |
| Termination Type | Solder Pin | |
| Maximum Operating Temperature | 100°C | |
| Tail Pin Length | 3.5mm | |
| Contact Gender | Male | |
| Mating Pin Length | 3.5mm | |
| Standards/Approvals | cULus Recognised | |
| Voltage | 160 V | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type PCB Header | ||
Series DMCV | ||
Pitch 3.5mm | ||
Current 8A | ||
Number of Contacts 34 | ||
Housing Material Polybutylene Terephthalate | ||
Number of Rows 2 | ||
Shrouded/Unshrouded Shrouded | ||
Connector System COMBICON DFMC 1 | ||
Mount Type Wave Soldering Mount | ||
Contact Material Copper Alloy | ||
Contact Plating Tin Plated | ||
Row Pitch 3.5mm | ||
Minimum Operating Temperature -40°C | ||
Termination Type Solder Pin | ||
Maximum Operating Temperature 100°C | ||
Tail Pin Length 3.5mm | ||
Contact Gender Male | ||
Mating Pin Length 3.5mm | ||
Standards/Approvals cULus Recognised | ||
Voltage 160 V | ||
- COO (Country of Origin):
- CN
The Phoenix Contact PCB header from the DMCV 1.5 series is designed to streamline your connectivity solutions while ensuring robust performance. It features a compact design that is ideal for high-density applications, allowing for effective use of space on your PCB. With a configuration that supports 34 connections across 17 positions, this product provides exceptional versatility for various electronic projects. Its reliable wave soldering mounting method ensures strong, consistent electrical connections, while the tin-plated copper alloy contacts promise long-lasting functionality. This product is not only compliant with international standards but also crafted to meet rigorous testing protocols, making it a dependable choice for both commercial and industrial applications.
Provides a space-efficient solution for multi-row arrangements
Ensures reliable connection with a standard pitch of 3.5 mm
Facilitates easy integration into existing designs with well-established mounting principles
Delivers high conductivity and performance through quality contact materials
Designed with environmental compliance in mind, supporting sustainability initiatives
