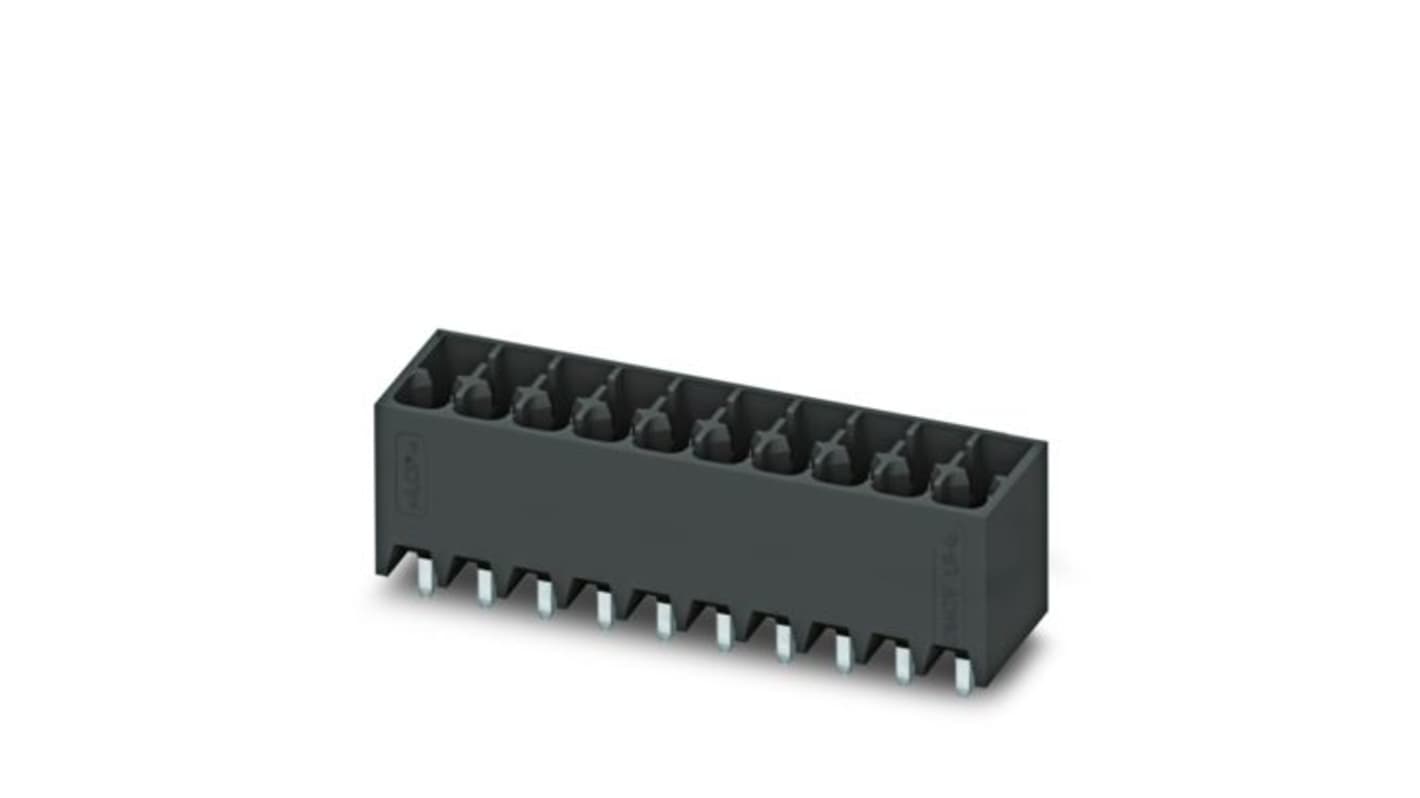

Phoenix Contact DMCV Series Vertical Wave Soldering Mount PCB Header, 26 Contact(s), 3.5 mm Pitch, 2 Row(s), Shrouded
- RS Stock No.:
- 489-155
- Mfr. Part No.:
- 1787315
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£491.49
(exc. VAT)
£589.79
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 10 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £491.49 | £9.83 |
*price indicative
- RS Stock No.:
- 489-155
- Mfr. Part No.:
- 1787315
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | PCB Header | |
| Series | DMCV | |
| Pitch | 3.5mm | |
| Current | 8A | |
| Number of Contacts | 26 | |
| Housing Material | Liquid Crystal Polymer | |
| Number of Rows | 2 | |
| Orientation | Vertical | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | Wave Soldering Mount | |
| Connector System | COMBICON DFMC 1 | |
| Contact Material | Copper Alloy | |
| Contact Plating | Tin Plated | |
| Minimum Operating Temperature | -40°C | |
| Row Pitch | 3.5mm | |
| Termination Type | Solder | |
| Tail Pin Length | 2mm | |
| Maximum Operating Temperature | 100°C | |
| Contact Gender | Male | |
| Standards/Approvals | cULus Recognised, VDE report with production monitoring | |
| Mating Pin Length | 2mm | |
| Voltage | 160 V | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type PCB Header | ||
Series DMCV | ||
Pitch 3.5mm | ||
Current 8A | ||
Number of Contacts 26 | ||
Housing Material Liquid Crystal Polymer | ||
Number of Rows 2 | ||
Orientation Vertical | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type Wave Soldering Mount | ||
Connector System COMBICON DFMC 1 | ||
Contact Material Copper Alloy | ||
Contact Plating Tin Plated | ||
Minimum Operating Temperature -40°C | ||
Row Pitch 3.5mm | ||
Termination Type Solder | ||
Tail Pin Length 2mm | ||
Maximum Operating Temperature 100°C | ||
Contact Gender Male | ||
Standards/Approvals cULus Recognised, VDE report with production monitoring | ||
Mating Pin Length 2mm | ||
Voltage 160 V | ||
- COO (Country of Origin):
- DE
The Phoenix Contact high-performance PCB header is specifically designed for seamless integration into your SMT soldering processes. Featuring a compact design, it provides extraordinary space-saving benefits while supporting multi-row arrangements. The DMCV 1.5/13-G1-3.5 P20THR model stands out for its robust construction and reliability, handling demanding electrical specifications with ease. Offering multiple connections and a substantial current carrying capacity, this product is perfect for applications requiring precision and efficiency. Its durable materials and attention to detail ensure longevity, even under rigorous operational conditions. Ideal for engineers and manufacturers seeking high-quality connectivity solutions, this header meets stringent international standards for electrical performance and environmental compliance.
Designed for easy integration into high-speed manufacturing environments
Compact size facilitates efficient use of limited board space
Supports both THR soldering and wave soldering processes
Constructed from high-quality materials ensuring durability and reliability
Facilitates multiple connections with an impressive number of positions
Complies with environmental regulations, ensuring eco-friendly usage
Features a tin-plated surface that enhances electrical conductivity
Rated for high electrical specs, providing great versatility in applications
Engineered to withstand thermal and mechanical stresses typical in operational environments
Includes a robust locking mechanism for secure connectivity
