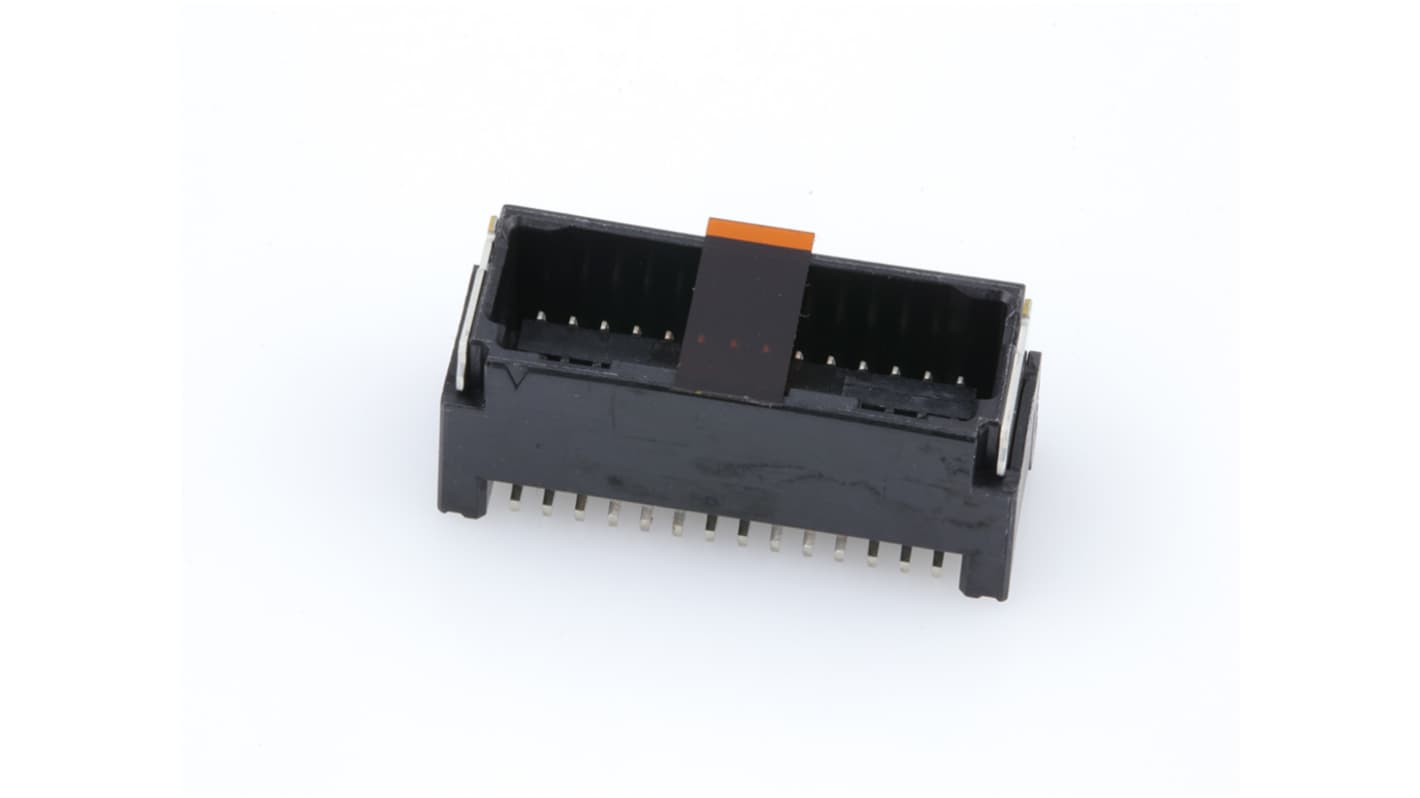

Molex 505433 Series Vertical Surface Mount PCB Header, 28 Contact(s), 1.25mm Pitch, 2 Row(s), Shrouded

View all PCB Headers

Subtotal (1 reel of 500 units)*

£693.76

(exc. VAT)

£832.51

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 999,999,999 unit(s) shipping from 01 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s)
Per Reel
Per unit*
1 +£693.76£1.388

*price indicative

RS Stock No.:
520-704
Mfr. Part No.:
505433-2881
Brand:
Molex
Find similar products by selecting one or more attributes.
Select all

Brand

Molex

Series

505433

Pitch

1.25mm

Number of Contacts

28

Number of Rows

2

Body Orientation

Vertical

Shrouded/Unshrouded

Shrouded

Mounting Type

Surface Mount

COO (Country of Origin):
MY
The TE Connectivity Plus PCB Header is a sophisticated connection solution designed for high performance in demanding applications. Featuring a compact 1.25mm pitch, this dual-row header ensures a reliable connection with its robust positive lock mechanism and durable construction. Ideal for wire-to-board applications, its surface mount design streamlines assembly processes while enhancing efficiency in electronic devices. The material selection includes high-quality brass for electrical conductivity, with tin-bismuth plating to resist corrosion and ensure longevity. With a capacity to support up to 28 circuits, this header is engineered to deliver superior performance across various industries, ensuring compliance with environmental standards for increased peace of mind.

Durable construction promotes long-lasting connections
Positive lock mechanism ensures secure mating
Compact design optimises space utilisation on PCBs
Designed for efficient pick-and-place assembly
Supports applications in signal and power transmission
Meets stringent environmental compliance standards
Vertical orientation facilitates effective space management
Compatible with a variety of mating housings for versatility
