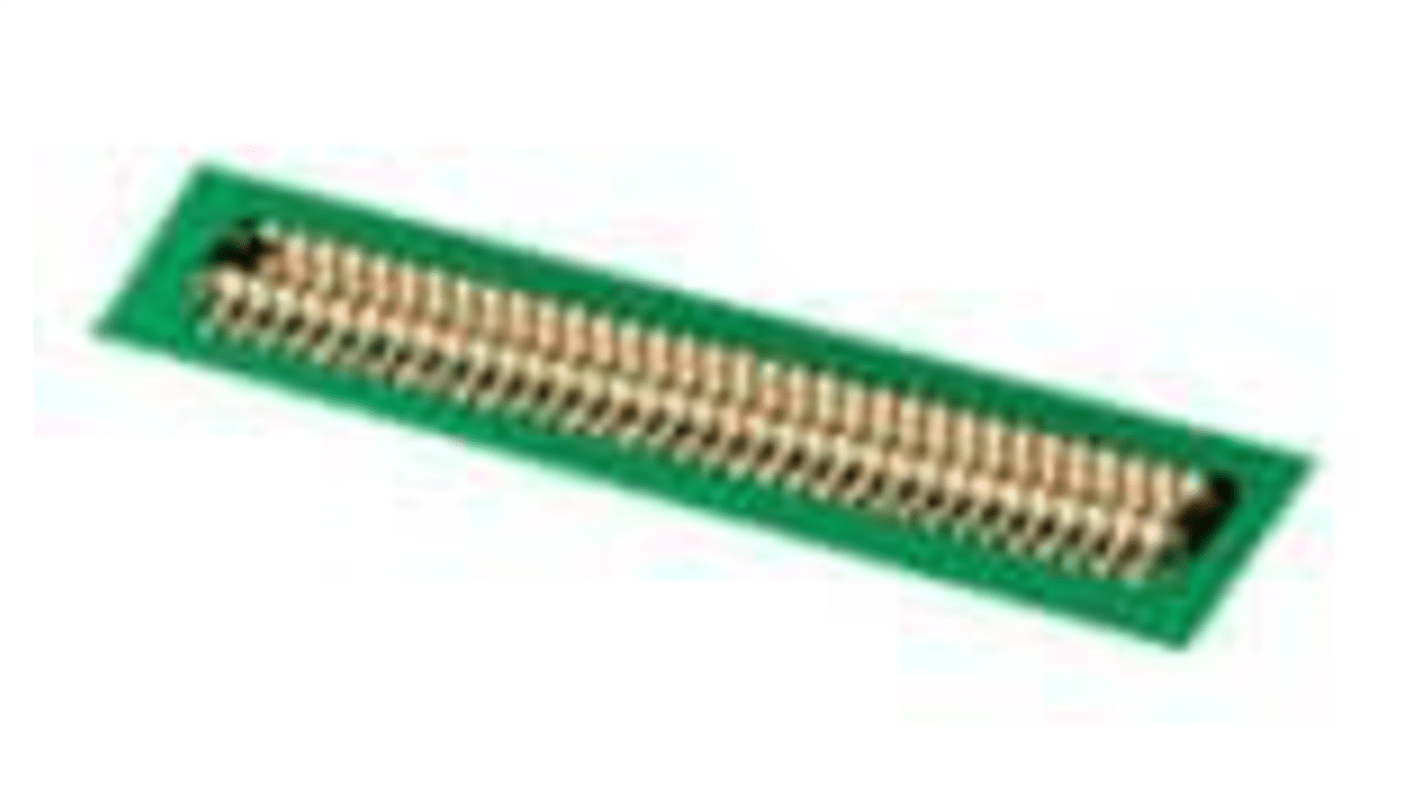

Molex 504622 Series Vertical Surface PCB Header, 34 Contact(s), 0.35 mm Pitch, 2 Row(s), Unshrouded
- RS Stock No.:
- 506-080
- Mfr. Part No.:
- 504622-3410
- Brand:
- Molex
Subtotal (1 reel of 3000 units)*
£924.02
(exc. VAT)
£1,108.82
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 08 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per unit* |
|---|---|---|
| 1 + | £924.02 | £0.308 |
*price indicative
- RS Stock No.:
- 506-080
- Mfr. Part No.:
- 504622-3410
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Series | 504622 | |
| Product Type | PCB Header | |
| Current | 0.3A | |
| Pitch | 0.35mm | |
| Number of Contacts | 34 | |
| Number of Rows | 2 | |
| Orientation | Vertical | |
| Shrouded/Unshrouded | Unshrouded | |
| Mount Type | Surface | |
| Contact Plating | Gold | |
| Contact Material | Copper Alloy | |
| Row Pitch | 0.35mm | |
| Termination Type | Surface Mount | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | No | |
| Voltage | 50 Vrms | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Series 504622 | ||
Product Type PCB Header | ||
Current 0.3A | ||
Pitch 0.35mm | ||
Number of Contacts 34 | ||
Number of Rows 2 | ||
Orientation Vertical | ||
Shrouded/Unshrouded Unshrouded | ||
Mount Type Surface | ||
Contact Plating Gold | ||
Contact Material Copper Alloy | ||
Row Pitch 0.35mm | ||
Termination Type Surface Mount | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals No | ||
Voltage 50 Vrms | ||
- COO (Country of Origin):
- JP
The TE Connectivity board-to-board connector represents cutting-edge design in compact connectivity solutions. Engineered for optimal performance, it features a 0.35mm pitch that facilitates tight configurations while ensuring robust electrical interfacing. The vertical layout and surface mount design enable seamless integration into various PCB applications. With a stacking height of just 0.60mm and a dual-row arrangement accommodating up to 34 circuits, this connector is ideal for space-constrained designs without compromising on functionality. Its versatility is further enhanced with a broad temperature range, allowing it to operate from -40°C to +85°C. An ideal choice for designers looking for reliability and compliance, this product is compliant with RoHS and halogen-free regulations, making it suitable for eco-conscious projects.
Supports an impressive maximum current of 0.3A per contact
Utilises gold plating for both mating and termination surfaces for enhanced conductivity
Equipped with PCB retention to ensure stable positioning during operation
Designed with an embossed tape on reel packaging for ease of handling and assembly
Features vertical orientation to maximise space efficiency on PCBs
Halogen-free construction ensures compliance with environmental regulations
Designed for durability with a mating cycle capacity of up to 30 cycles
Boasts a compact footprint, making it ideal for modern electronic designs
