Phoenix Contact DMCV Series Wave Soldering Mount PCB Header, 2 Contact(s), 2.54 mm Pitch, Shrouded
- RS Stock No.:
- 488-048
- Mfr. Part No.:
- 1150824
- Brand:
- Phoenix Contact

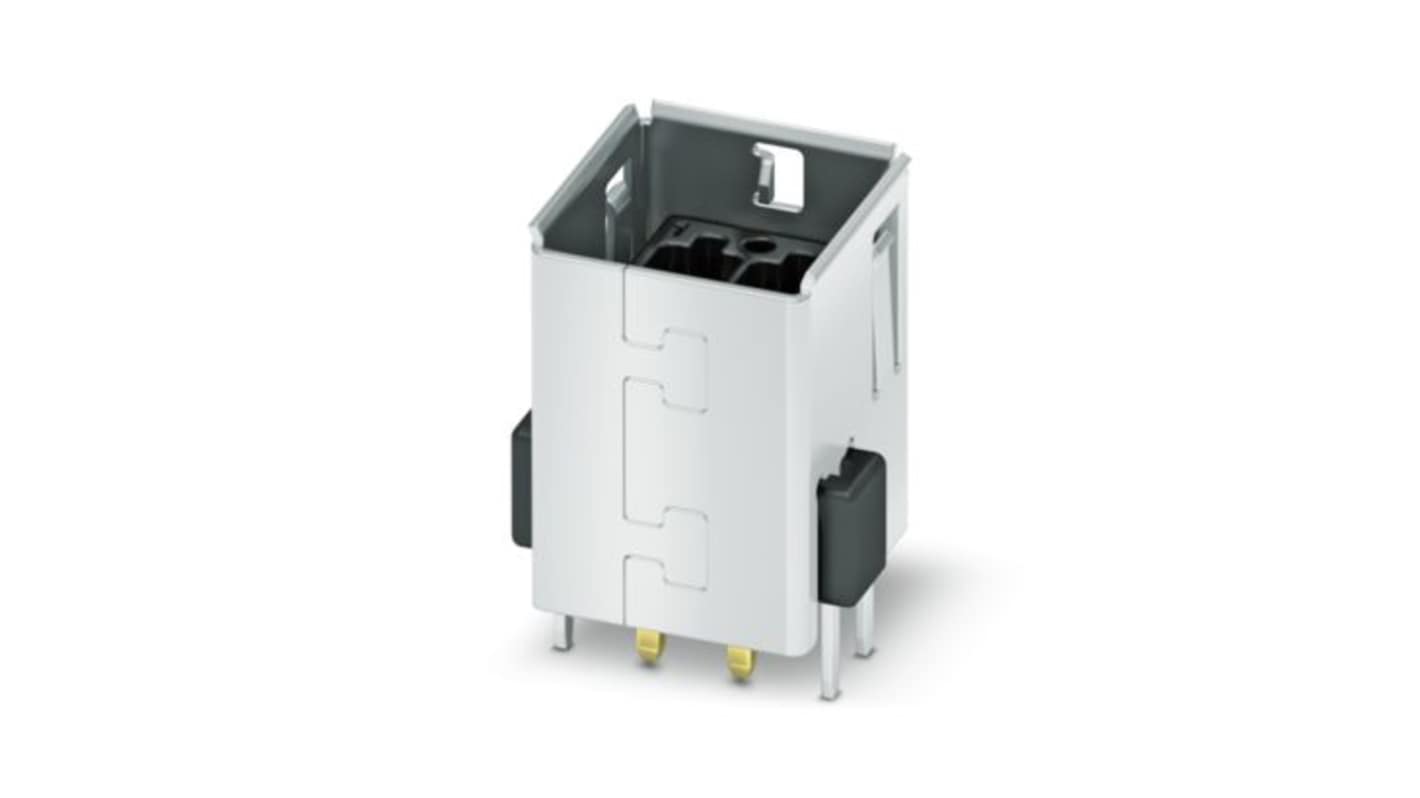

Image representative of range
Subtotal (1 pack of 200 units)*
£275.64
(exc. VAT)
£330.77
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 09 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £275.64 | £1.378 |
*price indicative
- RS Stock No.:
- 488-048
- Mfr. Part No.:
- 1150824
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Series | DMCV | |
| Product Type | PCB Header | |
| Pitch | 2.54mm | |
| Current | 5A | |
| Housing Material | Liquid Crystal Polymer | |
| Number of Contacts | 2 | |
| Shrouded/Unshrouded | Shrouded | |
| Connector System | COMBICON DFMC 0.5 | |
| Mount Type | Wave Soldering Mount | |
| Contact Plating | Gold | |
| Contact Material | Copper Alloy | |
| Minimum Operating Temperature | -55°C | |
| Row Pitch | 2.54mm | |
| Termination Type | Solder | |
| Tail Pin Length | 2mm | |
| Contact Gender | Male | |
| Maximum Operating Temperature | 100°C | |
| Mating Pin Length | 2.6mm | |
| Standards/Approvals | CAT5 (IEC 11801), cULus, EN 50173, ISO/IEC 11801, VDE | |
| Voltage | 160 V | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Series DMCV | ||
Product Type PCB Header | ||
Pitch 2.54mm | ||
Current 5A | ||
Housing Material Liquid Crystal Polymer | ||
Number of Contacts 2 | ||
Shrouded/Unshrouded Shrouded | ||
Connector System COMBICON DFMC 0.5 | ||
Mount Type Wave Soldering Mount | ||
Contact Plating Gold | ||
Contact Material Copper Alloy | ||
Minimum Operating Temperature -55°C | ||
Row Pitch 2.54mm | ||
Termination Type Solder | ||
Tail Pin Length 2mm | ||
Contact Gender Male | ||
Maximum Operating Temperature 100°C | ||
Mating Pin Length 2.6mm | ||
Standards/Approvals CAT5 (IEC 11801), cULus, EN 50173, ISO/IEC 11801, VDE | ||
Voltage 160 V | ||
- COO (Country of Origin):
- PL
The Phoenix Contact PCB Header is expertly designed to meet the demands of modern electronic applications. Tailored for efficiency and reliability, it supports a nominal current of 5 A and a rated voltage of 160 V, ensuring optimal performance in various conditions. Constructed with gold-plated contacts, it guarantees superior conductivity while remaining compatible with shielded connections.
Optimised for both reflow and wave soldering processes
Supports a variety of mounting methods offering flexibility
Moisture sensitive level classification ensures safe handling
Durability tested for long lasting performance under various conditions
