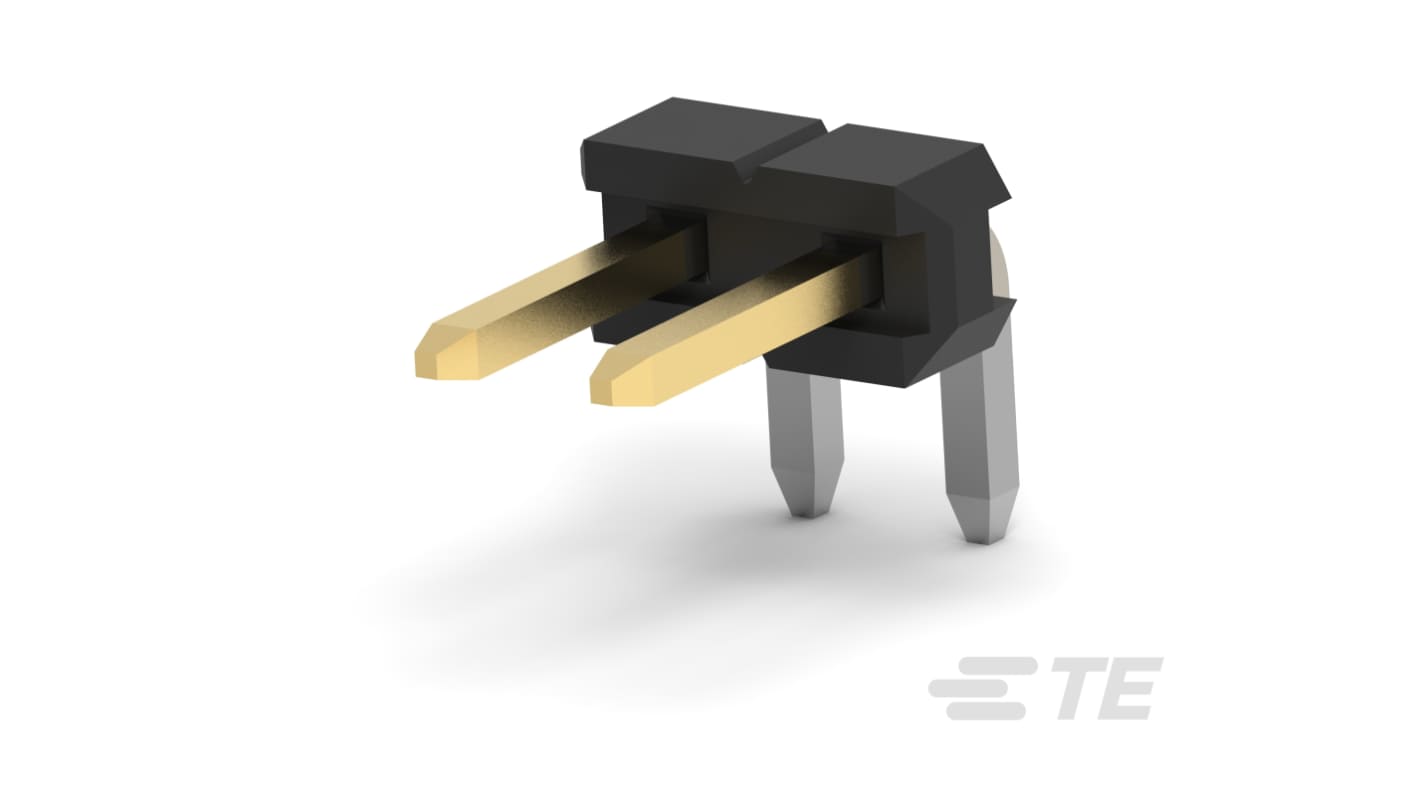

TE Connectivity AMPMODU Series Right Angle PCB PCB Header, 2 Contact(s), 2 mm Pitch, 1 Row(s), Unshrouded
- RS Stock No.:
- 481-425
- Mfr. Part No.:
- 2842112-2
- Brand:
- TE Connectivity
Subtotal (1 tube of 435 units)*
£203.34
(exc. VAT)
£244.01
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 09 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 + | £203.34 | £0.467 |
*price indicative
- RS Stock No.:
- 481-425
- Mfr. Part No.:
- 2842112-2
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | PCB Header | |
| Series | AMPMODU | |
| Pitch | 2mm | |
| Current | 2A | |
| Housing Material | Polyamide Fibreglass | |
| Number of Contacts | 2 | |
| Number of Rows | 1 | |
| Orientation | Right Angle | |
| Shrouded/Unshrouded | Unshrouded | |
| Connector System | Board-to-Board | |
| Mount Type | PCB | |
| Contact Material | Brass | |
| Contact Plating | Gold | |
| Minimum Operating Temperature | -40°C | |
| Termination Type | Solder | |
| Row Pitch | 2mm | |
| Tail Pin Length | 2.8mm | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | UL 94V-0, UL E28476, UL Recognised | |
| Mating Pin Length | 4mm | |
| Voltage | 125 V | |
| Distrelec Product Id | 304-64-029 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type PCB Header | ||
Series AMPMODU | ||
Pitch 2mm | ||
Current 2A | ||
Housing Material Polyamide Fibreglass | ||
Number of Contacts 2 | ||
Number of Rows 1 | ||
Orientation Right Angle | ||
Shrouded/Unshrouded Unshrouded | ||
Connector System Board-to-Board | ||
Mount Type PCB | ||
Contact Material Brass | ||
Contact Plating Gold | ||
Minimum Operating Temperature -40°C | ||
Termination Type Solder | ||
Row Pitch 2mm | ||
Tail Pin Length 2.8mm | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals UL 94V-0, UL E28476, UL Recognised | ||
Mating Pin Length 4mm | ||
Voltage 125 V | ||
Distrelec Product Id 304-64-029 | ||
- COO (Country of Origin):
- CN
The TE Connectivity PCB Mount Header is expertly designed for applications requiring a reliable and efficient board-to-board connection in compact spaces. With a right-angle orientation and a breakaway header type, it offers excellent flexibility in layout while ensuring robust electrical performance. The connector's compatibility with printed circuit boards makes it an ideal choice for a wide range of electronic applications. Boasting gold plating for enhanced conductivity and resistance to corrosion, this connector guarantees longevity and stability under varying environmental conditions. The assembly is simple, featuring through-hole soldering for secure attachment to the PCB, thereby minimizing assembly time and enhancing overall productivity.
Designed for board-to-board applications, ensuring seamless connectivity
Utilizes a breakaway header configuration to facilitate versatile assembly options
Crafted for high-frequency signal applications, enhancing overall performance
Constructed from durable materials to withstand high-temperature environments
