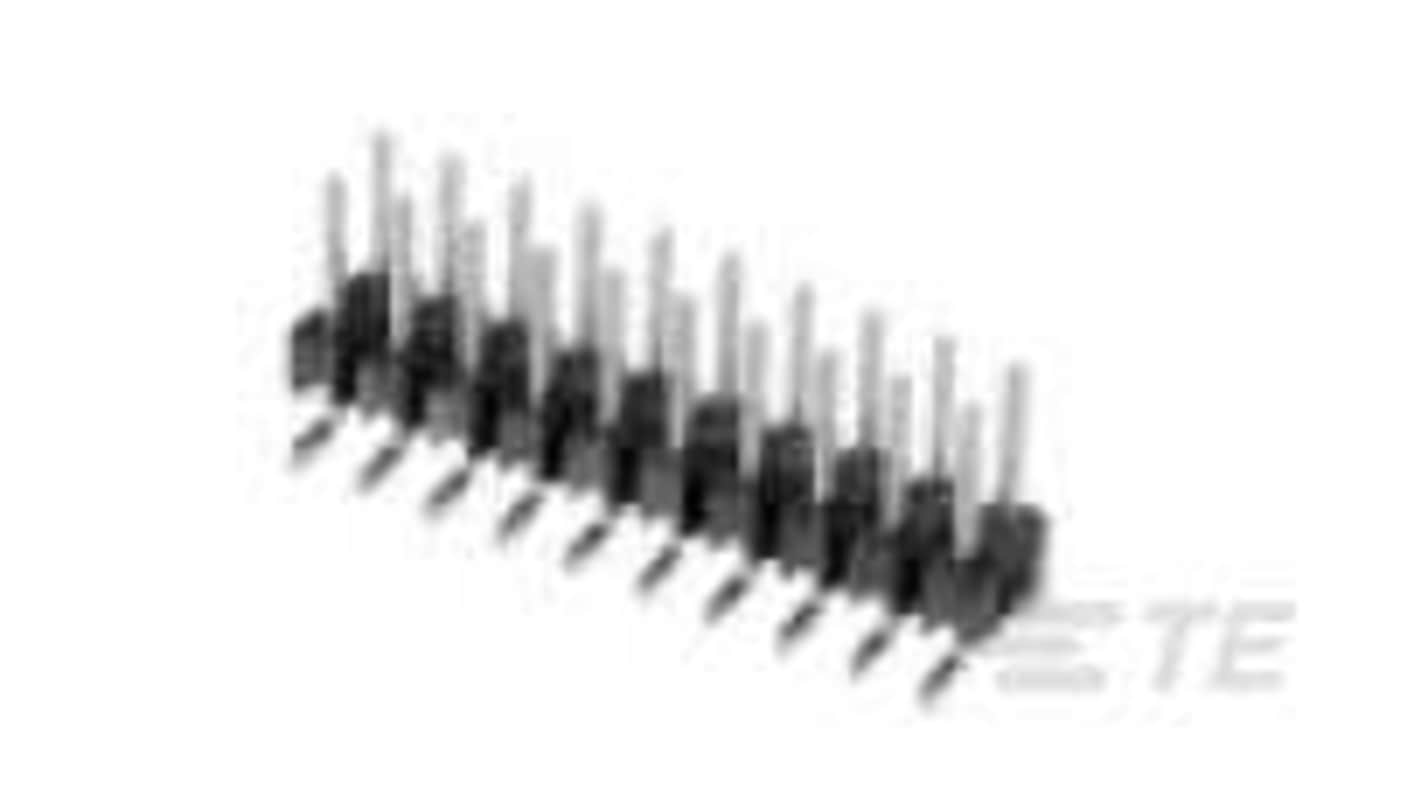

TE Connectivity 5-146 Series Vertical Board PCB Header, 20 Contact(s), 2.54 mm Pitch, 2 Row(s), Unshrouded
- RS Stock No.:
- 480-990
- Mfr. Part No.:
- 5-146130-9
- Brand:
- TE Connectivity
Subtotal (1 tube of 42 units)*
£302.76
(exc. VAT)
£363.31
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 12 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 + | £302.76 | £7.209 |
*price indicative
- RS Stock No.:
- 480-990
- Mfr. Part No.:
- 5-146130-9
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | PCB Header | |
| Series | 5-146 | |
| Current | 3A | |
| Pitch | 2.54mm | |
| Housing Material | Thermoplastic | |
| Number of Contacts | 20 | |
| Number of Rows | 2 | |
| Orientation | Vertical | |
| Shrouded/Unshrouded | Unshrouded | |
| Mount Type | Board | |
| Connector System | Board-to-Board | |
| Contact Plating | Gold | |
| Contact Material | Phosphor Bronze | |
| Minimum Operating Temperature | 65°C | |
| Row Pitch | 2.54mm | |
| Termination Type | Surface Mount | |
| Maximum Operating Temperature | 125°C | |
| Tail Pin Length | 2.29mm | |
| Standards/Approvals | CSA LR7189, UL 94V-0, UL E28476 | |
| Voltage | 30 V | |
| Distrelec Product Id | 304-50-872 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type PCB Header | ||
Series 5-146 | ||
Current 3A | ||
Pitch 2.54mm | ||
Housing Material Thermoplastic | ||
Number of Contacts 20 | ||
Number of Rows 2 | ||
Orientation Vertical | ||
Shrouded/Unshrouded Unshrouded | ||
Mount Type Board | ||
Connector System Board-to-Board | ||
Contact Plating Gold | ||
Contact Material Phosphor Bronze | ||
Minimum Operating Temperature 65°C | ||
Row Pitch 2.54mm | ||
Termination Type Surface Mount | ||
Maximum Operating Temperature 125°C | ||
Tail Pin Length 2.29mm | ||
Standards/Approvals CSA LR7189, UL 94V-0, UL E28476 | ||
Voltage 30 V | ||
Distrelec Product Id 304-50-872 | ||
- COO (Country of Origin):
- MX
The TE Connectivity PCB Mount Header is designed to establish reliable connections in a variety of electronic applications. Offering a vertical orientation and a robust build, this connector assembly ensures secure board-to-board interfacing with 20 positions for efficient signal routing. Manufactured from high-quality thermoplastic, it accommodates a standard pitch of 2.54 mm, making it suitable for compact layout designs while providing excellent durability and performance. With features such as gold underplating for enhanced conductivity and a breakaway design for easy assembly, this connector stands out as a key component in modern electronic systems, ensuring seamless communication and power delivery.
Optimised for surface mounting, simplifying PCB assembly
Constructed to endure high operational temperatures and harsh environments
Breakaway header design allows flexibility in custom configurations
Nickel and gold plating ensure superior electrical performance
Compatible with standard PCB thickness for ease of integration
Meets international safety and compliance standards for electrical components
Available in a packaging quantity ideal for production and prototyping
