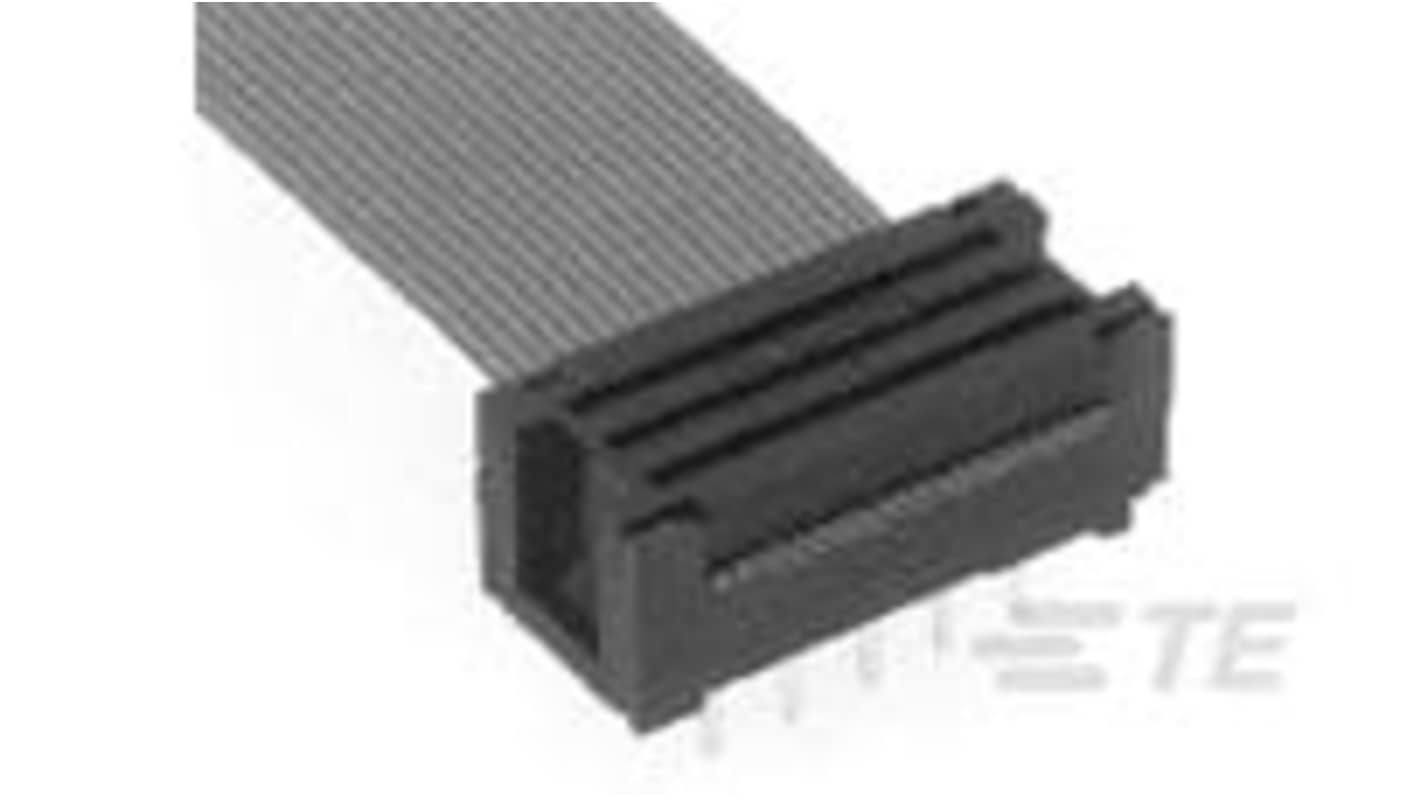

TE Connectivity AMP LATCH Series Vertical PCB Mount PCB Connector, 50 Contact(s), 0.64 mm, 1.27 mm Pitch, 4 Row(s)
- RS Stock No.:
- 480-136
- Mfr. Part No.:
- 1-111595-1
- Brand:
- TE Connectivity
Subtotal (1 tray of 25 units)*
£203.58
(exc. VAT)
£244.30
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 01 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tray(s) | Per Tray | Per unit* |
---|---|---|
1 + | £203.58 | £8.143 |
*price indicative
- RS Stock No.:
- 480-136
- Mfr. Part No.:
- 1-111595-1
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TE Connectivity | |
Series | AMP LATCH | |
Pitch | 0.64 mm, 1.27 mm | |
Number of Contacts | 50 | |
Number of Rows | 4 | |
Body Orientation | Vertical | |
Mounting Type | PCB Mount | |
Select all | ||
---|---|---|
Brand TE Connectivity | ||
Series AMP LATCH | ||
Pitch 0.64 mm, 1.27 mm | ||
Number of Contacts 50 | ||
Number of Rows 4 | ||
Body Orientation Vertical | ||
Mounting Type PCB Mount | ||
Non Compliant
- COO (Country of Origin):
- CN
The TE Connectivity board-in PCB mount paddleboard connector is engineered for vertical cable-to-board applications, accommodating up to 50 positions. Designed with precision, this connector ensures a reliable connection with ribbon cables, featuring a dual beam contact shape for optimum signal integrity. The compact dimensions, including a pitch of 0.64 mm and 1.27 mm, allow for efficient use of space in complex designs. Crafted from high-quality materials such as LCP for the housing and copper alloy for contacts, it meets demanding electrical and mechanical standards, making it suitable for a range of industrial applications. This connector not only supports a wide operating temperature range but also offers excellent insulation resistance, ensuring long-lasting performance even in harsh environments. With its commitment to industry standards and compliance regulations, this connector is a dependable choice for engineers seeking an effective and durable solution.
Optimized for vertical orientation to save space on your PCB
Robust design suited for high-density applications
LCP housing provides excellent thermal stability
Dual beam contact shape enhances signal integrity
Meets high industry standards including UL 94V-0 flammability rating
Efficient soldering process for reliable assembly
Suitable for wave soldering processes up to 265°C
Packaged in trays for convenient handling and storage
Robust design suited for high-density applications
LCP housing provides excellent thermal stability
Dual beam contact shape enhances signal integrity
Meets high industry standards including UL 94V-0 flammability rating
Efficient soldering process for reliable assembly
Suitable for wave soldering processes up to 265°C
Packaged in trays for convenient handling and storage
