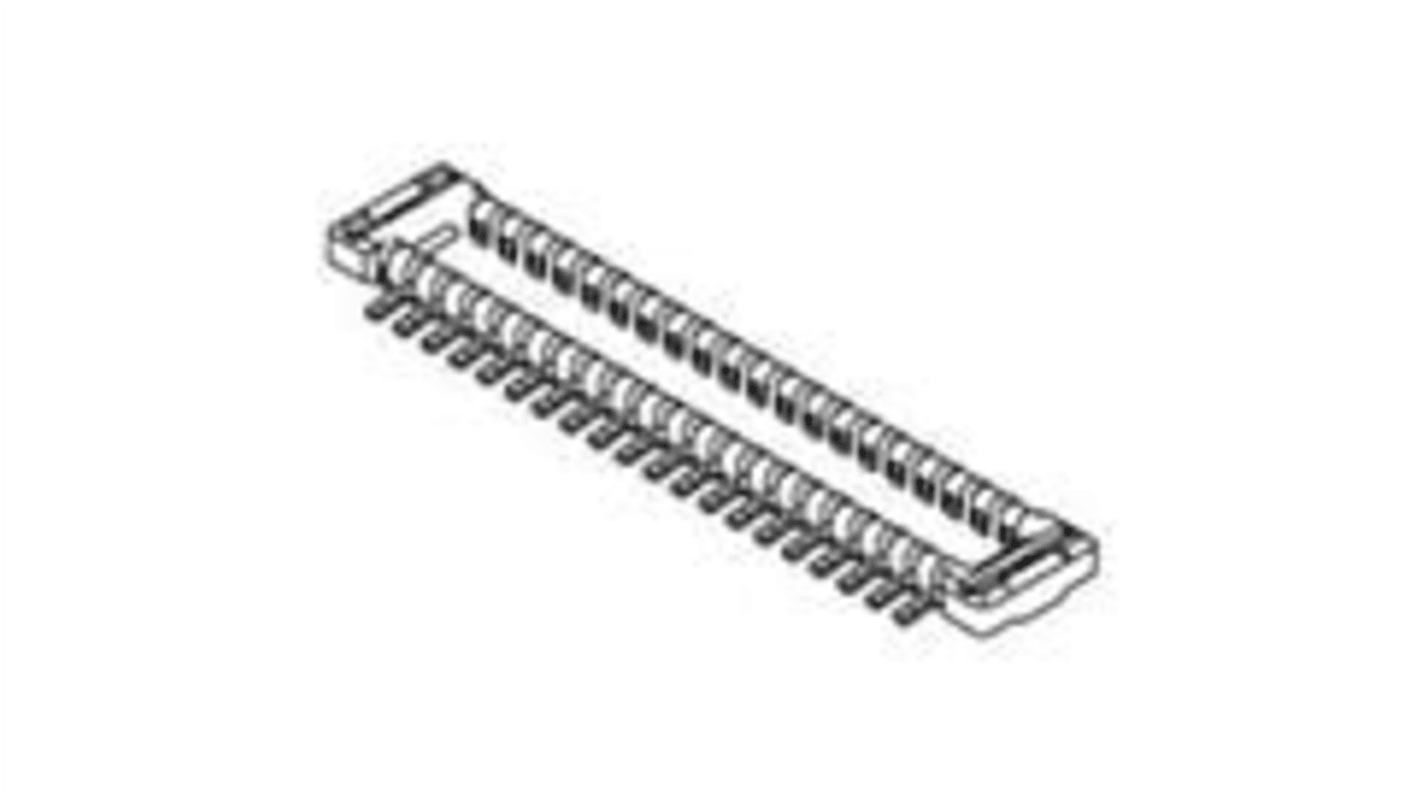

Molex 503308 Series Vertical Surface PCB Header, 30 Contact(s), 0.4 mm Pitch, 2 Row(s), Unshrouded
- RS Stock No.:
- 478-726
- Mfr. Part No.:
- 503308-3010
- Brand:
- Molex
Subtotal (1 reel of 3000 units)*
£445.98
(exc. VAT)
£535.18
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 08 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per unit* |
|---|---|---|
| 1 + | £445.98 | £0.149 |
*price indicative
- RS Stock No.:
- 478-726
- Mfr. Part No.:
- 503308-3010
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Series | 503308 | |
| Product Type | PCB Header | |
| Pitch | 0.4mm | |
| Current | 0.3A | |
| Number of Contacts | 30 | |
| Number of Rows | 2 | |
| Orientation | Vertical | |
| Shrouded/Unshrouded | Unshrouded | |
| Mount Type | Surface | |
| Contact Material | Copper Alloy | |
| Contact Plating | Gold | |
| Termination Type | Surface Mount | |
| Row Pitch | 0.4mm | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 85°C | |
| Contact Gender | Male | |
| Standards/Approvals | REACH, RoHS | |
| Voltage | 50 V | |
| Distrelec Product Id | 304-56-478 | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Series 503308 | ||
Product Type PCB Header | ||
Pitch 0.4mm | ||
Current 0.3A | ||
Number of Contacts 30 | ||
Number of Rows 2 | ||
Orientation Vertical | ||
Shrouded/Unshrouded Unshrouded | ||
Mount Type Surface | ||
Contact Material Copper Alloy | ||
Contact Plating Gold | ||
Termination Type Surface Mount | ||
Row Pitch 0.4mm | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 85°C | ||
Contact Gender Male | ||
Standards/Approvals REACH, RoHS | ||
Voltage 50 V | ||
Distrelec Product Id 304-56-478 | ||
- COO (Country of Origin):
- JP
The TE Connectivity 0.40mm Pitch Board-to-Board Connector exemplifies the latest in interconnect technology, designed to deliver superior performance in compact applications. With its dual row and vertical stacking configuration, this connector achieves an impressive 0.70mm to 1.00mm height, which allows for seamless integration in constrained spaces. Crafted for high-density circuit requirements, it supports 30 circuits, enabling efficient signal transmission while maintaining an active status for optimal reliability. The durable construction features a copper alloy built to withstand extensive use, making it an ideal choice for advanced board-to-board interconnections.
Engineered for board-to-board applications, ensuring high compatibility
Low height profile features minimise stack height for space savings
Supports a maximum operating temperature range of -20° to +85°C
Utilises a surface mount termination interface for easy assembly
Durability is enhanced with a robust mating cycle lifespan
Designed with non-relevant halogen content to meet environmental standards
Built to comply with RoHS regulations, supporting eco-friendly initiatives
Efficiently manages up to 0.3A per contact for reliable performance
