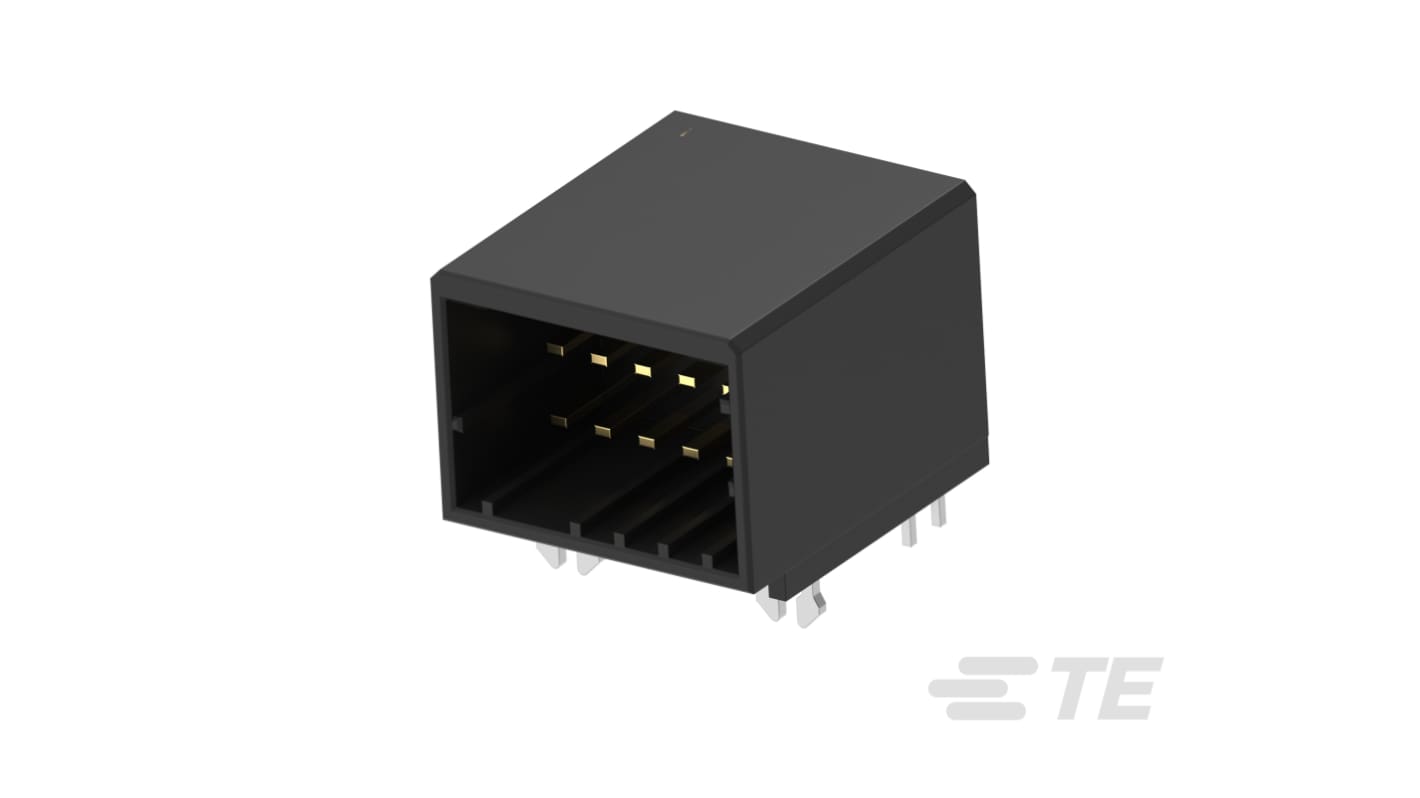

TE Connectivity Dynamic 2000 Series Horizontal Board PCB Header, 12 Contact(s), 2.5 mm Pitch, 2 Row(s), Shrouded

View all PCB Headers

Subtotal (1 tube of 52 units)*

£190.24

(exc. VAT)

£228.29

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 08 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s)
Per Tube
Per unit*
1 +£190.24£3.658

*price indicative

RS Stock No.:
477-535
Mfr. Part No.:
1376020-2
Brand:
TE Connectivity
Find similar products by selecting one or more attributes.
Select all

Brand

TE Connectivity

Product Type

PCB Header

Series

Dynamic 2000

Current

5A

Pitch

2.5mm

Number of Contacts

12

Housing Material

Fibreglass Polyester

Number of Rows

2

Orientation

Horizontal

Shrouded/Unshrouded

Shrouded

Mount Type

Board

Connector System

Wire-to-Board

Contact Plating

Gold

Termination Type

Solder

Minimum Operating Temperature

-55°C

Row Pitch

2.5mm

Maximum Operating Temperature

105°C

Standards/Approvals

2016, China RoHS 2 Directive MIIT Order No 32, EU ELV Directive 2000/53/EC, EU RoHS Directive 2011/65/EU, UL 94V-0

Distrelec Product Id

304-64-433

COO (Country of Origin):
CN
The TE Connectivity PCB Mount Header represents a robust solution for wire-to-board connections, designed with precision to meet the demands of modern electronic devices. Featuring a horizontal orientation and 12 positions, this connector ensures a reliable interface in compact spaces. Its fully shrouded design enhances both durability and safety, protecting the connection from potential damage. Crafted for high-performance applications, this product incorporates a gold-plated contact area that facilitates optimal conductivity, while supporting current ratings of up to 5 A. With an operating temperature range of -55 to 105 °C, this connector is suitable for a variety of environments, making it an ideal choice for both consumer and industrial electronics.

Provides exceptional reliability for various electronic applications

Offers a fully shrouded design for enhanced protection

Allows for easy integration into compact devices

Constructed with high-quality materials for durability

Designed for high-performance power and signal connections

Features polarisation for accurate mating during installation

Capable of withstanding harsh environmental conditions

Facilitates efficient wave soldering capabilities
