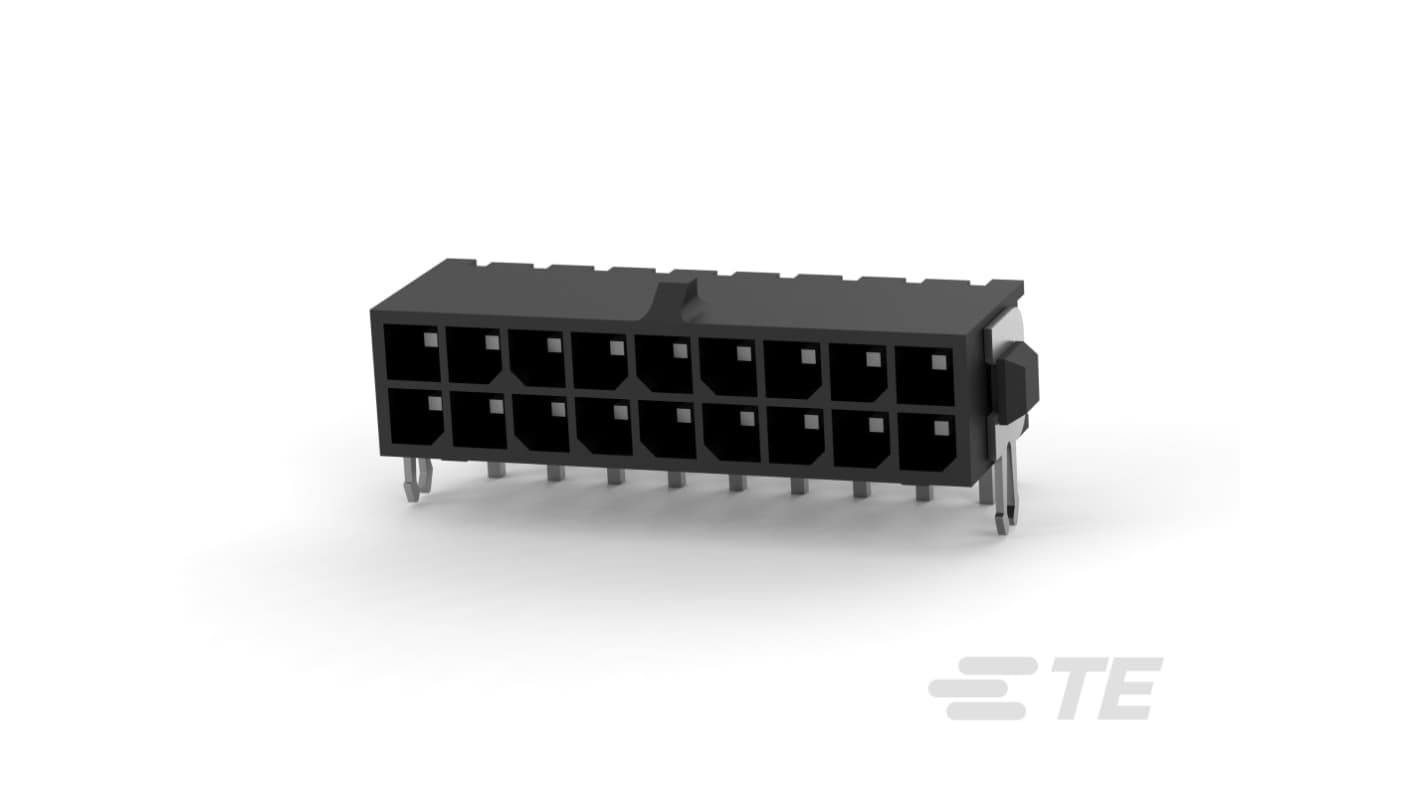

TE Connectivity Micro MATE-N-LOK Series Right Angle Board PCB Header, 18 Contact(s), 3 mm Pitch, 2 Row(s), Shrouded
- RS Stock No.:
- 477-242
- Mfr. Part No.:
- 4-794677-8
- Brand:
- TE Connectivity
Subtotal (1 tray of 80 units)*
£196.90
(exc. VAT)
£236.28
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 08 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tray(s) | Per Tray | Per unit* |
|---|---|---|
| 1 + | £196.90 | £2.461 |
*price indicative
- RS Stock No.:
- 477-242
- Mfr. Part No.:
- 4-794677-8
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | PCB Header | |
| Series | Micro MATE-N-LOK | |
| Pitch | 3mm | |
| Current | 5A | |
| Housing Material | Nylon | |
| Number of Contacts | 18 | |
| Number of Rows | 2 | |
| Orientation | Right Angle | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | Board | |
| Connector System | Wire-to-Board | |
| Contact Plating | Tin Plated | |
| Contact Material | Brass | |
| Minimum Operating Temperature | -40°C | |
| Row Pitch | 3mm | |
| Termination Type | Solder | |
| Maximum Operating Temperature | 105°C | |
| Tail Pin Length | 3.43mm | |
| Mating Pin Length | 4.15mm | |
| Standards/Approvals | 2016, China RoHS 2 Directive MIIT Order No 32, CNR, EU ELV Directive 2000/53/EC, EU REACH Regulation (EC) No. 1907/2006, EU RoHS Directive 2011/65/EU, GWT 750°C (Without Flame), UL 94V-0, UL E28476, USR, VDE | |
| Voltage | 250 V | |
| Distrelec Product Id | 304-58-698 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type PCB Header | ||
Series Micro MATE-N-LOK | ||
Pitch 3mm | ||
Current 5A | ||
Housing Material Nylon | ||
Number of Contacts 18 | ||
Number of Rows 2 | ||
Orientation Right Angle | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type Board | ||
Connector System Wire-to-Board | ||
Contact Plating Tin Plated | ||
Contact Material Brass | ||
Minimum Operating Temperature -40°C | ||
Row Pitch 3mm | ||
Termination Type Solder | ||
Maximum Operating Temperature 105°C | ||
Tail Pin Length 3.43mm | ||
Mating Pin Length 4.15mm | ||
Standards/Approvals 2016, China RoHS 2 Directive MIIT Order No 32, CNR, EU ELV Directive 2000/53/EC, EU REACH Regulation (EC) No. 1907/2006, EU RoHS Directive 2011/65/EU, GWT 750°C (Without Flame), UL 94V-0, UL E28476, USR, VDE | ||
Voltage 250 V | ||
Distrelec Product Id 304-58-698 | ||
- COO (Country of Origin):
- CN
The TE Connectivity PCB Mount Header is designed for efficient wire-to-board connections, featuring a right-angle orientation that ensures a compact footprint on printed circuit boards. Its 18-position capacity allows for robust connectivity in various applications, making it ideal for complex circuitry. The fully shrouded design offers excellent protection for terminals, while the tin-plated contacts enhance conductivity and resistance to corrosion. This component is built to withstand tough operational environments, showcasing high temperature tolerance and compatibility with reflow solder processes, thereby ensuring reliability in demanding conditions. Whether you are creating new designs or upgrading existing systems, this part provides a professional solution that meets industry standards.
Right-angle configuration for optimal space utilisation
Fully shrouded header design for added contact protection
High-temperature nylon housing ensures durability and resilience
Mating retention features enhance stability during operations
Optimised for use in power circuit applications
Low halogen materials contribute to environmental safety
Designed for fully loaded and reliable performance
Compatible with multiple connector systems in the series
