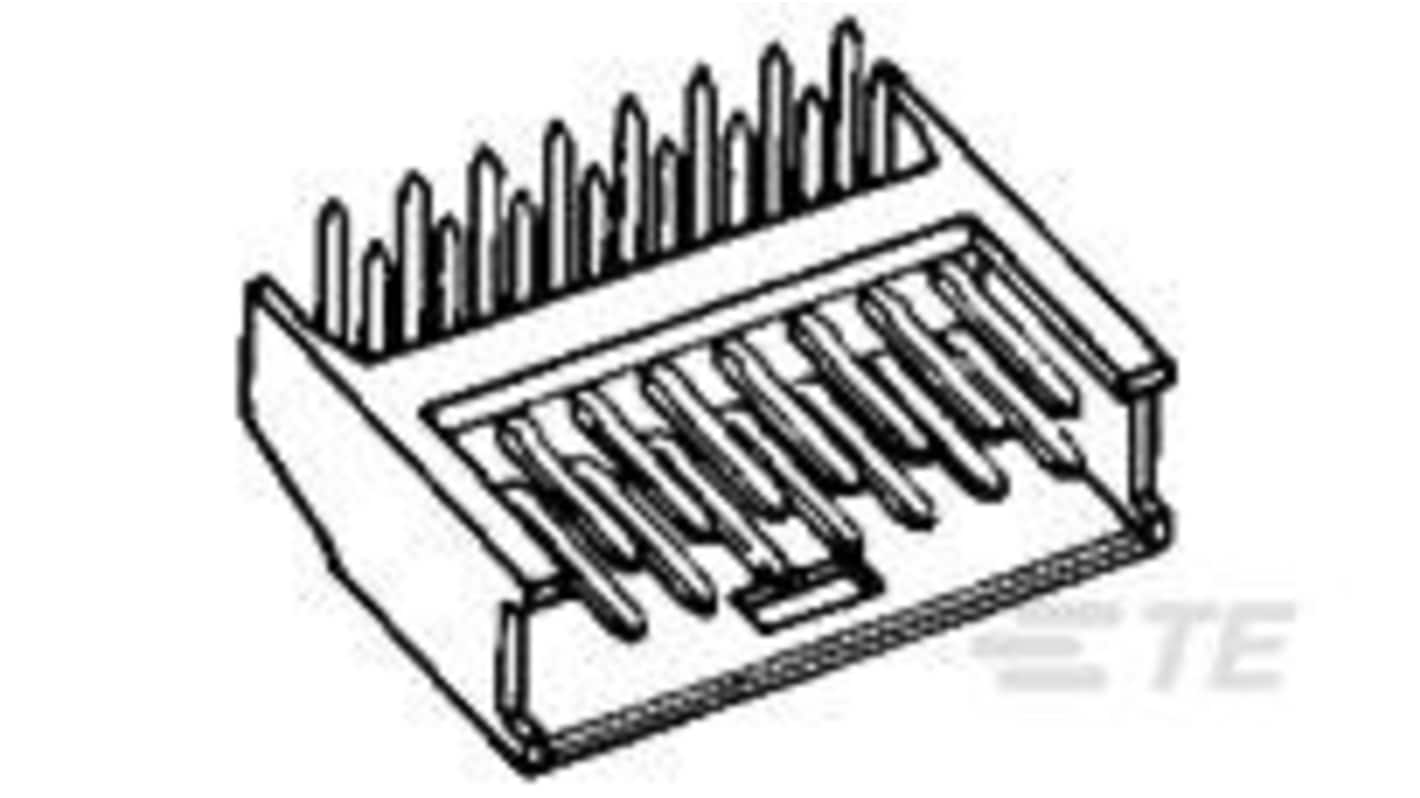

TE Connectivity AMPMODU Series Right Angle Board PCB Header, 44 Contact(s), 2.54 mm Pitch, 2 Row, Shrouded
- RS Stock No.:
- 474-803
- Distrelec Article No.:
- 304-51-817
- Mfr. Part No.:
- 280393-2
- Brand:
- TE Connectivity
Subtotal (1 pack of 30 units)*
£187.32
(exc. VAT)
£224.78
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 20 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £187.32 | £6.244 |
*price indicative
- RS Stock No.:
- 474-803
- Distrelec Article No.:
- 304-51-817
- Mfr. Part No.:
- 280393-2
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | PCB Header | |
| Series | AMPMODU | |
| Pitch | 2.54mm | |
| Current | 3A | |
| Housing Material | Flame Retardant Thermoplastic | |
| Number of Contacts | 44 | |
| Number of Rows | 2 | |
| Orientation | Right Angle | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | Board | |
| Connector System | Board-to-Board | |
| Contact Plating | Gold Flash over Nickel | |
| Contact Material | Brass | |
| Row Pitch | 2.54mm | |
| Termination Type | Solder | |
| Minimum Operating Temperature | -40°F | |
| Tail Pin Length | 3.5mm | |
| Maximum Operating Temperature | 176°F | |
| Standards/Approvals | 2016, China RoHS 2 Directive MIIT Order No 32, EU ELV Directive 2000/53/EC, EU RoHS Directive 2011/65/EU, IEC, UL 94V-0, UL E28476 | |
| Mating Pin Length | 6.6mm | |
| Voltage | 40 V | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type PCB Header | ||
Series AMPMODU | ||
Pitch 2.54mm | ||
Current 3A | ||
Housing Material Flame Retardant Thermoplastic | ||
Number of Contacts 44 | ||
Number of Rows 2 | ||
Orientation Right Angle | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type Board | ||
Connector System Board-to-Board | ||
Contact Plating Gold Flash over Nickel | ||
Contact Material Brass | ||
Row Pitch 2.54mm | ||
Termination Type Solder | ||
Minimum Operating Temperature -40°F | ||
Tail Pin Length 3.5mm | ||
Maximum Operating Temperature 176°F | ||
Standards/Approvals 2016, China RoHS 2 Directive MIIT Order No 32, EU ELV Directive 2000/53/EC, EU RoHS Directive 2011/65/EU, IEC, UL 94V-0, UL E28476 | ||
Mating Pin Length 6.6mm | ||
Voltage 40 V | ||
- COO (Country of Origin):
- IT
The TE Connectivity PCB Mount Header is expertly designed for right-angle, board-to-board applications, providing seamless connectivity in a compact form factor. This connector features a versatile 44-position layout, engineered to meet the rigorous demands of various electronic setups. Its partially shrouded design ensures reliable mating while allowing for efficient space utilisation on dense circuit boards. Crafted to handle operating voltages of up to 40 VDC, this robust component also incorporates superior dielectric strength, safeguarding connections against electrical interference. With an emphasis on performance and durability, it is an essential choice for applications ranging from consumer electronics to industrial machinery, ensuring long-lasting and efficient operation in diverse environments.
Designed for easy integration into circuit boards with a right angle orientation
Utilises flame retardant thermoplastic housing for enhanced safety
Accommodates through hole solder termination for reliable electrical connections
Offers a mechanical mating retention feature that enhances connector stability
Includes electrical characteristics that support high current applications
Features nickel underplating and gold flash plating for improved conductivity
Ensures compliance with international standards making it suitable for global applications
Packaged in quantities that cater to high volume production needs
