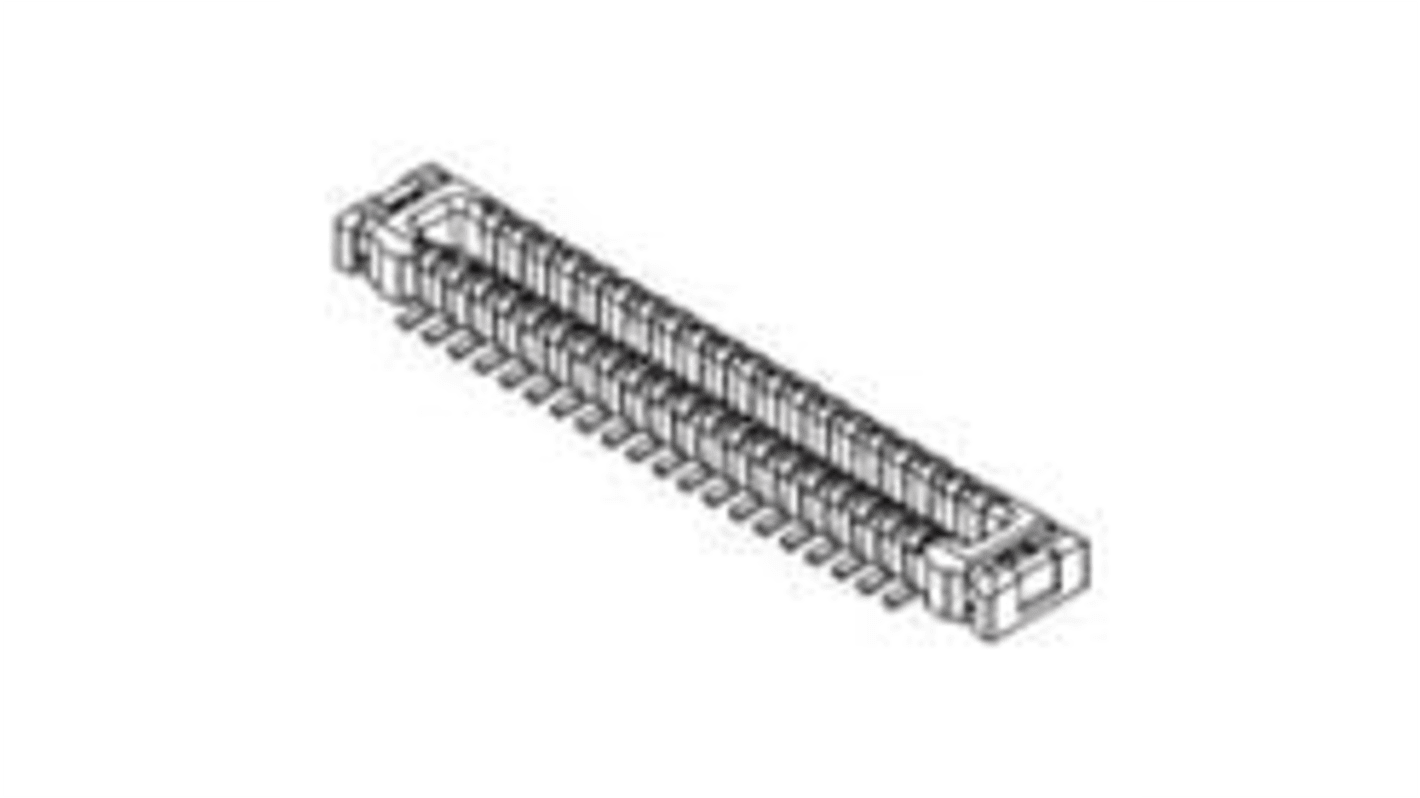

Molex 502430 Series Vertical Surface PCB Header, 44 Contact(s), 0.4 mm Pitch, 2 Row(s), Unshrouded
- RS Stock No.:
- 473-324
- Mfr. Part No.:
- 502430-4410
- Brand:
- Molex
Subtotal (1 reel of 3000 units)*
£1,536.18
(exc. VAT)
£1,843.42
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 08 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per unit* |
|---|---|---|
| 1 + | £1,536.18 | £0.512 |
*price indicative
- RS Stock No.:
- 473-324
- Mfr. Part No.:
- 502430-4410
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Series | 502430 | |
| Product Type | PCB Header | |
| Pitch | 0.4mm | |
| Current | 0.3A | |
| Number of Contacts | 44 | |
| Number of Rows | 2 | |
| Orientation | Vertical | |
| Shrouded/Unshrouded | Unshrouded | |
| Mount Type | Surface | |
| Contact Material | Phosphor Bronze | |
| Contact Plating | Gold | |
| Row Pitch | 0.4mm | |
| Minimum Operating Temperature | -20°C | |
| Termination Type | Surface Mount | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | REACH, RoHS | |
| Voltage | 50 Vrms | |
| Distrelec Product Id | 304-62-302 | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Series 502430 | ||
Product Type PCB Header | ||
Pitch 0.4mm | ||
Current 0.3A | ||
Number of Contacts 44 | ||
Number of Rows 2 | ||
Orientation Vertical | ||
Shrouded/Unshrouded Unshrouded | ||
Mount Type Surface | ||
Contact Material Phosphor Bronze | ||
Contact Plating Gold | ||
Row Pitch 0.4mm | ||
Minimum Operating Temperature -20°C | ||
Termination Type Surface Mount | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals REACH, RoHS | ||
Voltage 50 Vrms | ||
Distrelec Product Id 304-62-302 | ||
- COO (Country of Origin):
- JP
The TE Connectivity plug assembly offers a sophisticated approach to board-to-board connectivity through a design that optimises space without compromising performance. Featuring a 0.40mm pitch, this connector series ensures a superior connection in a compact form factor, making it ideal for various applications demanding high reliability. With a stacking height of just 1.00mm, it facilitates streamlined designs while maintaining robust electrical performance. The product accommodates up to 44 circuits and is designed for surface mount applications, making it a versatile choice for engineers seeking efficiency and functionality in their projects.
Designed for dual-row vertical stacking to save space in dense applications
Includes solder tabs for secure attachment and stability
Constructed from phosphor bronze to provide excellent conductivity
Features a durable gold plating for enhanced connection reliability
The black resin colour of the connector ensures visual compatibility with various PCB designs
UL-certified halogen-free for environmental compliance
Optimised for a wide operating temperature range for different environments
Offers PCB retention capabilities to secure connections during operational stress
