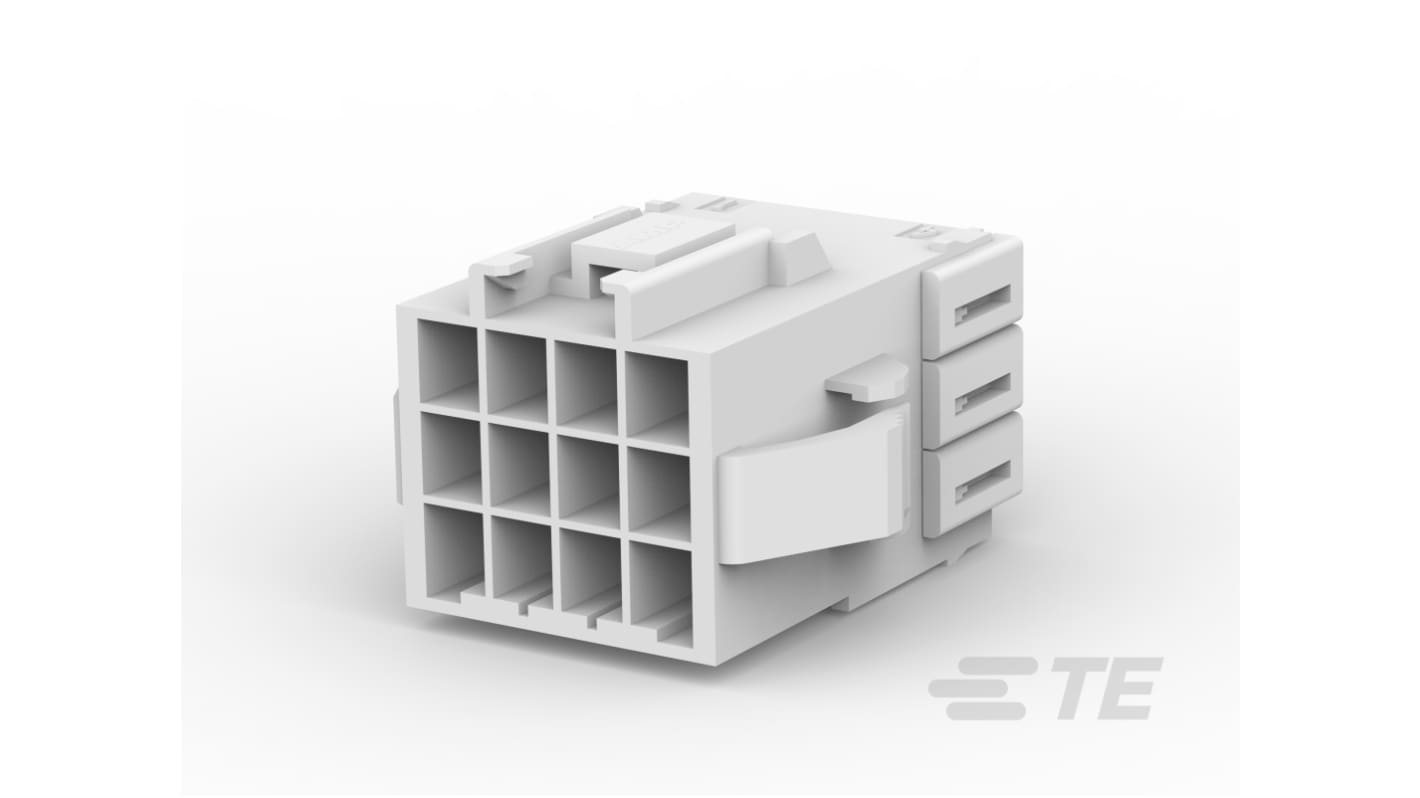

TE Connectivity Power Double Lock Series Panel PCB Connector, 12 Contact(s), 3.96 mm Pitch, 3 Row(s), Unshrouded
- RS Stock No.:
- 471-126
- Mfr. Part No.:
- 177913-1
- Brand:
- TE Connectivity
Subtotal (1 bag of 200 units)*
£188.30
(exc. VAT)
£225.96
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 12 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s) | Per Bag | Per unit* |
|---|---|---|
| 1 + | £188.30 | £0.942 |
*price indicative
- RS Stock No.:
- 471-126
- Mfr. Part No.:
- 177913-1
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | PCB Connector | |
| Series | Power Double Lock | |
| Pitch | 3.96mm | |
| Number of Contacts | 12 | |
| Housing Material | Polyamide 66 | |
| Number of Rows | 3 | |
| Shrouded/Unshrouded | Unshrouded | |
| Mount Type | Panel | |
| Connector System | Wire to Panel, Wire-to-Wire | |
| Row Pitch | 3.96mm | |
| Minimum Operating Temperature | 30°C | |
| Termination Type | Crimp | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | UL, UL 1977, UL 94V-0 | |
| Voltage | 30 V | |
| Distrelec Product Id | 304-58-241 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type PCB Connector | ||
Series Power Double Lock | ||
Pitch 3.96mm | ||
Number of Contacts 12 | ||
Housing Material Polyamide 66 | ||
Number of Rows 3 | ||
Shrouded/Unshrouded Unshrouded | ||
Mount Type Panel | ||
Connector System Wire to Panel, Wire-to-Wire | ||
Row Pitch 3.96mm | ||
Minimum Operating Temperature 30°C | ||
Termination Type Crimp | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals UL, UL 1977, UL 94V-0 | ||
Voltage 30 V | ||
Distrelec Product Id 304-58-241 | ||
- COO (Country of Origin):
- CN
The TE Connectivity housing cap is engineered for reliability and versatility, serving a range of applications in panel and wire-to-wire connectivity. Ideal for use in power double lock systems, it is designed to meet stringent UL standards, ensuring safety and performance. The product features a natural nylon 6/6 construction that supports a wide operating temperature range, making it suitable for diverse environments. With its 12-position configuration, this connector system promotes efficient electrical transmission while facilitating easy integration into existing setups. The innovative design combines functionality and durability, perfect for modern electronic applications.
Designed for secure crimp termination to wire and cable
Compact construction allows for efficient space management in panel mounting
Low halogen content enhances environmental compliance
UL listed to ensure adherence to safety standards
Matrix contact layout optimises electrical performance
Compatible with stranded discrete wire types for enhanced versatility
Simple installation with latching features for reliable connection
