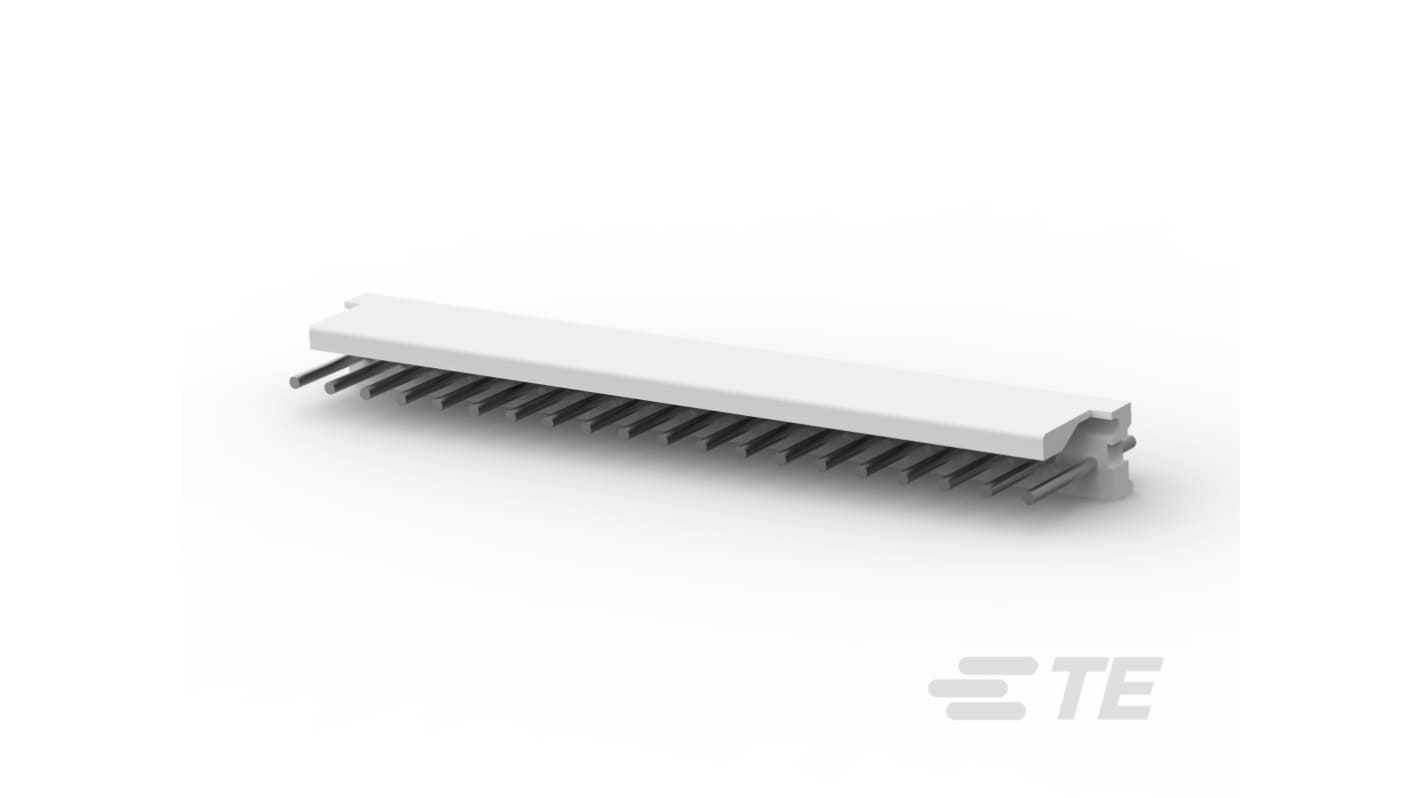

TE Connectivity MTA-156 Series Vertical Board PCB Header, 20 Contact(s), 3.96 mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 470-879
- Mfr. Part No.:
- 2-640388-0
- Brand:
- TE Connectivity
Subtotal (1 pack of 250 units)*
£210.60
(exc. VAT)
£252.72
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 08 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £210.60 | £0.842 |
*price indicative
- RS Stock No.:
- 470-879
- Mfr. Part No.:
- 2-640388-0
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Series | MTA-156 | |
| Product Type | PCB Header | |
| Pitch | 3.96mm | |
| Current | 14.24A | |
| Housing Material | Fibreglass Thermoplastic Polyester | |
| Number of Contacts | 20 | |
| Number of Rows | 1 | |
| Orientation | Vertical | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | Board | |
| Connector System | Wire-to-Board | |
| Contact Material | Copper Alloy | |
| Contact Plating | Tin Plated | |
| Minimum Operating Temperature | -55°C | |
| Row Pitch | 3.96mm | |
| Termination Type | Solder | |
| Maximum Operating Temperature | 105°C | |
| Tail Pin Length | 3.18mm | |
| Mating Pin Length | 10.16mm | |
| Standards/Approvals | CSA, UL, UL E28476 | |
| Voltage | 60 V | |
| Distrelec Product Id | 304-58-362 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Series MTA-156 | ||
Product Type PCB Header | ||
Pitch 3.96mm | ||
Current 14.24A | ||
Housing Material Fibreglass Thermoplastic Polyester | ||
Number of Contacts 20 | ||
Number of Rows 1 | ||
Orientation Vertical | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type Board | ||
Connector System Wire-to-Board | ||
Contact Material Copper Alloy | ||
Contact Plating Tin Plated | ||
Minimum Operating Temperature -55°C | ||
Row Pitch 3.96mm | ||
Termination Type Solder | ||
Maximum Operating Temperature 105°C | ||
Tail Pin Length 3.18mm | ||
Mating Pin Length 10.16mm | ||
Standards/Approvals CSA, UL, UL E28476 | ||
Voltage 60 V | ||
Distrelec Product Id 304-58-362 | ||
- COO (Country of Origin):
- CN
The TE Connectivity PCB Mount Header is designed for vertical installation and facilitates wire-to-board connections with its robust 20-position configuration. Ideal for applications that demand reliability and high performance, this connector features a partially shrouded header constructed for through-hole soldering, ensuring a secure and stable electronic connection. Crafted from high-quality thermoplastic polyester infused with glass fibers, it withstands harsh conditions with an operating temperature range that spans from -55 to 105 °C. The connector’s precision engineering promises optimal performance in power circuit applications, underlining its importance in modern electronic systems. The suitability for wave solder processes and compliance with various industry standards reaffirm its status as a dependable choice for diverse applications.
Designed with a vertical PCB mount orientation for efficient space utilization
Flexible configuration supports a fully loaded condition for maximum functionality
Natural primary product color enhances aesthetic compatibility with various designs
Made from thermoplastic polyester for superior resilience against environmental stress
Provides a robust friction lock mating retention feature for reliable connections
