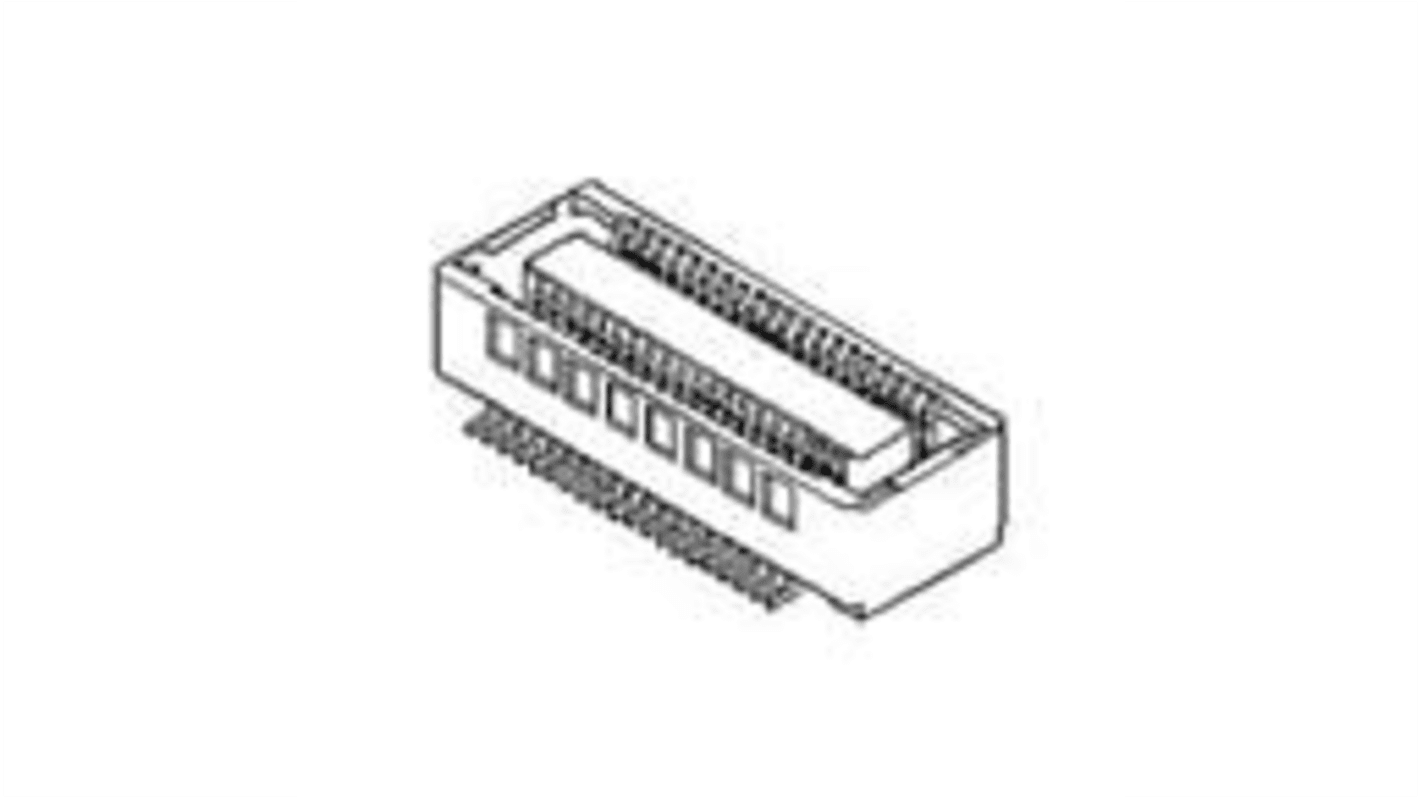

Molex 54684 Series Vertical Surface PCB Header, 60 Contact(s), 0.4 mm Pitch, 2 Row(s), Shrouded
- RS Stock No.:
- 469-713
- Mfr. Part No.:
- 54684-0608
- Brand:
- Molex
Subtotal (1 reel of 1500 units)*
£2,279.48
(exc. VAT)
£2,735.38
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 12 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per unit* |
|---|---|---|
| 1 + | £2,279.48 | £1.52 |
*price indicative
- RS Stock No.:
- 469-713
- Mfr. Part No.:
- 54684-0608
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Series | 54684 | |
| Product Type | PCB Header | |
| Pitch | 0.4mm | |
| Current | 0.3A | |
| Number of Contacts | 60 | |
| Housing Material | High Temperature Thermoplastic | |
| Number of Rows | 2 | |
| Orientation | Vertical | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | Surface | |
| Contact Material | Phosphor Bronze | |
| Contact Plating | Gold | |
| Termination Type | Surface Mount | |
| Minimum Operating Temperature | -25°C | |
| Row Pitch | 0.4mm | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | REACH, RoHS | |
| Voltage | 30 V | |
| Distrelec Product Id | 304-62-701 | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Series 54684 | ||
Product Type PCB Header | ||
Pitch 0.4mm | ||
Current 0.3A | ||
Number of Contacts 60 | ||
Housing Material High Temperature Thermoplastic | ||
Number of Rows 2 | ||
Orientation Vertical | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type Surface | ||
Contact Material Phosphor Bronze | ||
Contact Plating Gold | ||
Termination Type Surface Mount | ||
Minimum Operating Temperature -25°C | ||
Row Pitch 0.4mm | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals REACH, RoHS | ||
Voltage 30 V | ||
Distrelec Product Id 304-62-701 | ||
- COO (Country of Origin):
- CN
The TE Connectivity Board-to-Board Receptacle is engineered for precision and reliability in high-density applications. With a 0.40mm pitch, it’s optimised for vertical stacking and offers a compact solution for circuit connections. Designed for seamless surface mounting, it accommodates dual rows with a stacking height of just 4.00mm, ensuring efficient use of space in your designs. This connector not only stands out with its durable construction of high-temperature thermoplastic and phosphor bronze, but also meets stringent industry standards, including compliance with RoHS regulations. Whether connecting signal lines or facilitating board-to-board communication, this product delivers superior performance while maintaining the highest levels of reliability and functionality.
Offers a compact design ideal for space-constrained applications
Constructed from robust materials to ensure longevity and durability
Supports high-density configuration with its dual-row setup
Ensures reliable connectivity with a secure mating interface
Compatible with surface mount technology for straightforward integration
Designed to operate within a wide temperature range for flexible applications
Exceeds industry standards for environmental compliance and safety
Facilitates easy installation with its embossed tape on reel packaging
