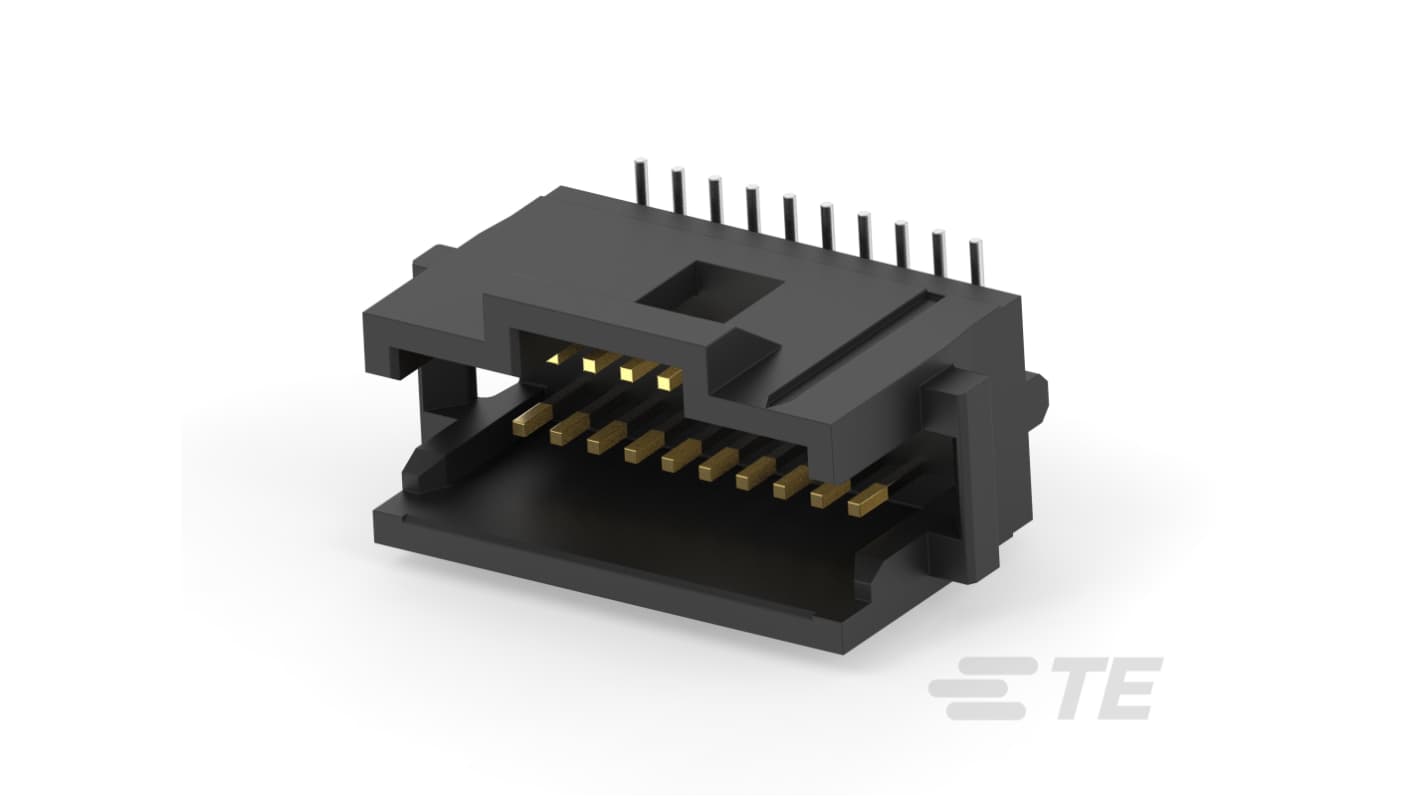

TE Connectivity AMPMODU Series Vertical Board Mount PCB Header, 20 Contact(s), 1.27mm Pitch, 2 Row(s), Shrouded
- RS Stock No.:
- 467-171
- Mfr. Part No.:
- 2-1825601-0
- Brand:
- TE Connectivity
Subtotal (1 reel of 250 units)*
£1,061.28
(exc. VAT)
£1,273.54
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 01 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per unit* |
---|---|---|
1 + | £1,061.28 | £4.245 |
*price indicative
- RS Stock No.:
- 467-171
- Mfr. Part No.:
- 2-1825601-0
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TE Connectivity | |
Series | AMPMODU | |
Pitch | 1.27mm | |
Number of Contacts | 20 | |
Number of Rows | 2 | |
Body Orientation | Vertical | |
Shrouded/Unshrouded | Shrouded | |
Mounting Type | Board Mount | |
Select all | ||
---|---|---|
Brand TE Connectivity | ||
Series AMPMODU | ||
Pitch 1.27mm | ||
Number of Contacts 20 | ||
Number of Rows 2 | ||
Body Orientation Vertical | ||
Shrouded/Unshrouded Shrouded | ||
Mounting Type Board Mount | ||
- COO (Country of Origin):
- MX
The TE Connectivity PCB Mount Header offers a sophisticated solution for board-to-board applications. Designed with a 20-position configuration and a 1.27 mm centreline, it ensures effective signal transmission while maintaining a compact form factor. The fully shrouded design and gold (Au) plating enhance durability and conductivity, making it suitable for demanding environments. Its vertical orientation facilitates straightforward integration into various PCB layouts, contributing to efficient space management. The housing material is LCP, reflecting advanced thermal and mechanical properties, while the product's robust construction supports a temperature range of -65°C to 105°C. Compliant with industry standards, this connector assembly is an excellent choice for reliable performance in projects across diverse sectors.
Optimised for board-to-board connectivity with a fully shrouded header type
Compact design promotes efficient space utilisation in electronic assemblies
Gold plating ensures superior conductivity and enhanced corrosion resistance
Designed for high-reliability applications with polarisation for accurate mating
High-temperature rating supports demanding operational conditions
Conforms to strict environmental regulations for sustainable use
Versatile termination method allows for quick and reliable surface mount processes
Low halogen content aids in compliance with green manufacturing initiatives
Compact design promotes efficient space utilisation in electronic assemblies
Gold plating ensures superior conductivity and enhanced corrosion resistance
Designed for high-reliability applications with polarisation for accurate mating
High-temperature rating supports demanding operational conditions
Conforms to strict environmental regulations for sustainable use
Versatile termination method allows for quick and reliable surface mount processes
Low halogen content aids in compliance with green manufacturing initiatives
