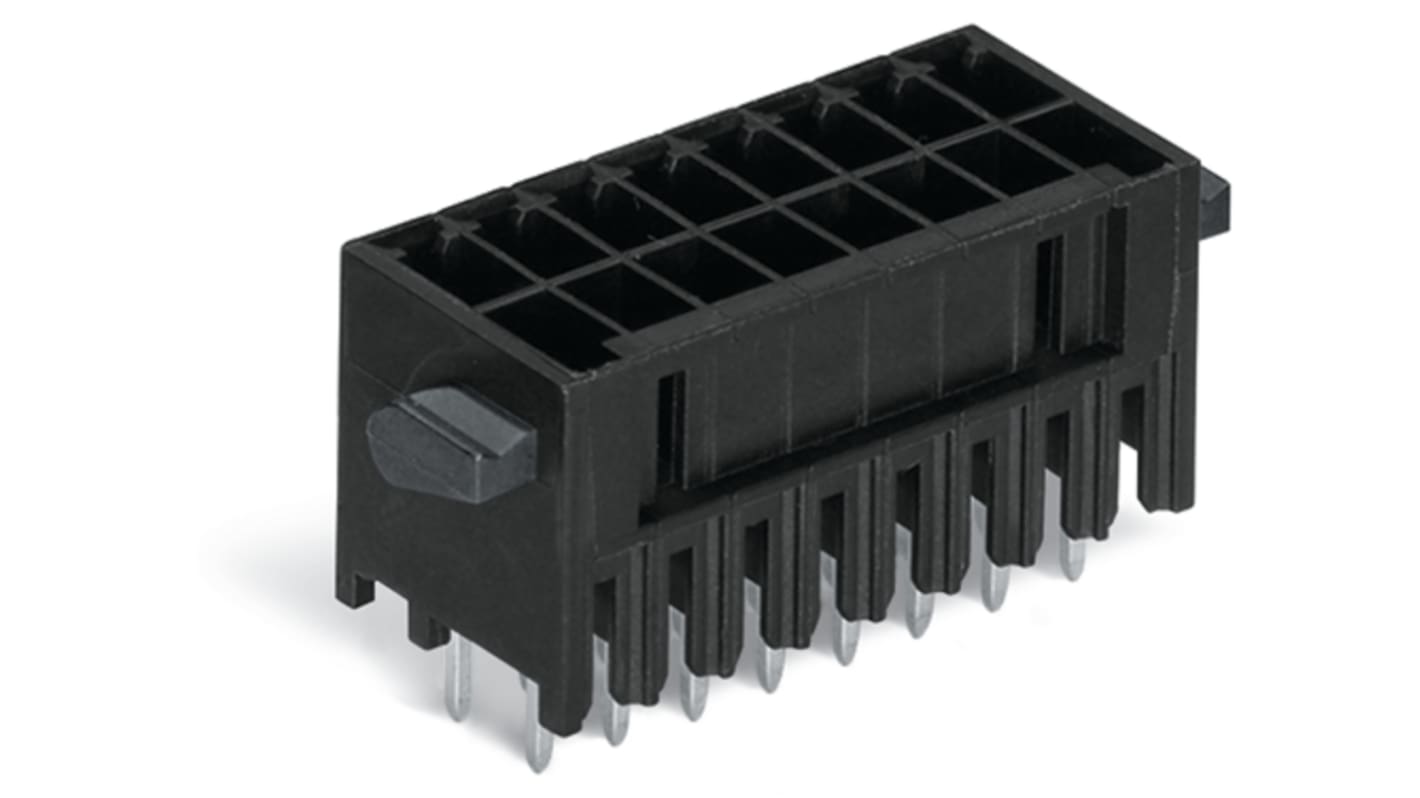

WAGO 713 Series Straight Through Hole Header, 14 Contact(s), 3.5 mm Pitch, 2 Row(s), Shrouded
- RS Stock No.:
- 224-182
- Mfr. Part No.:
- 713-1407/037-000
- Brand:
- WAGO
Subtotal (1 box of 25 units)*
£97.72
(exc. VAT)
£117.26
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 12 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £97.72 | £3.909 |
*price indicative
- RS Stock No.:
- 224-182
- Mfr. Part No.:
- 713-1407/037-000
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Series | 713 | |
| Product Type | Header | |
| Current | 10A | |
| Pitch | 3.5mm | |
| Housing Material | Polyphthalamide | |
| Number of Contacts | 14 | |
| Number of Rows | 2 | |
| Orientation | Straight | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | Through Hole | |
| Connector System | MCS | |
| Contact Plating | Tin | |
| Contact Material | Electrolytic Copper | |
| Row Pitch | 3.5mm | |
| Termination Type | Solder | |
| Minimum Operating Temperature | 60°C | |
| Contact Gender | Male | |
| Maximum Operating Temperature | 100°C | |
| Tail Pin Length | 3.8mm | |
| Standards/Approvals | RoHS | |
| Voltage | 250 V | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Series 713 | ||
Product Type Header | ||
Current 10A | ||
Pitch 3.5mm | ||
Housing Material Polyphthalamide | ||
Number of Contacts 14 | ||
Number of Rows 2 | ||
Orientation Straight | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type Through Hole | ||
Connector System MCS | ||
Contact Plating Tin | ||
Contact Material Electrolytic Copper | ||
Row Pitch 3.5mm | ||
Termination Type Solder | ||
Minimum Operating Temperature 60°C | ||
Contact Gender Male | ||
Maximum Operating Temperature 100°C | ||
Tail Pin Length 3.8mm | ||
Standards/Approvals RoHS | ||
Voltage 250 V | ||
- COO (Country of Origin):
- PL
The Wago THT Male Header is engineered for seamless integration in your electronic projects. Designed with a dual row configuration and robust solder pins, it ensures maximum reliability and protection against mismating. Featuring a high performance insulation material suitable for lead free reflow soldering, this connector meets strict industry standards and is engineered to withstand demanding conditions, including a broad temperature range.
Robust locking mechanism ensures a secure connection
High performance insulation material supports lead free soldering
Available coding options enable customised designs
Versatile mounting options for flexible installation
Designed to withstand extreme temperatures for varied applications
