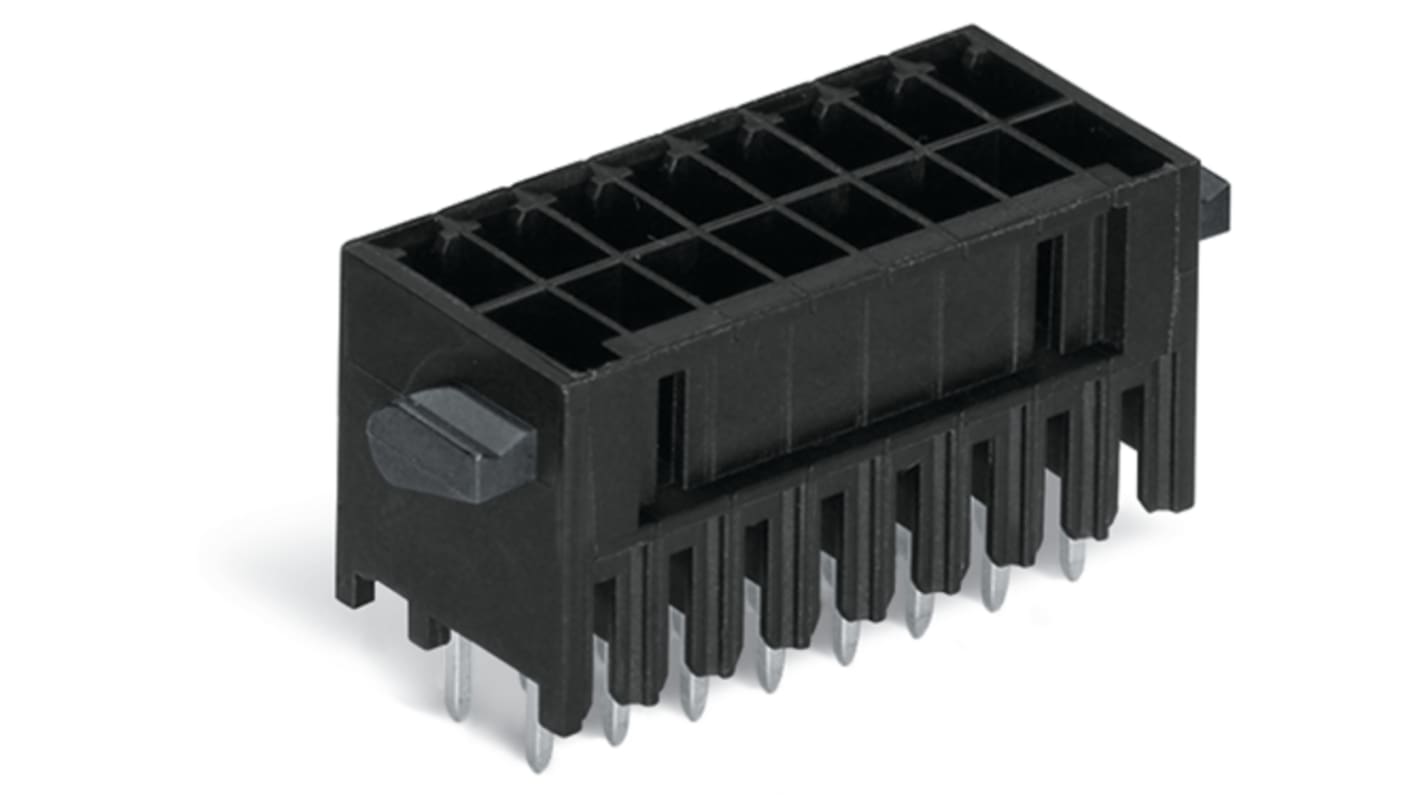

WAGO 713 Series Straight Through Hole Header, 26 Contact(s), 3.5 mm Pitch, 2 Row, Shrouded
- RS Stock No.:
- 224-592
- Mfr. Part No.:
- 713-1413/037-000
- Brand:
- WAGO
Subtotal (1 box of 20 units)*
£144.83
(exc. VAT)
£173.80
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 13 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £144.83 | £7.242 |
*price indicative
- RS Stock No.:
- 224-592
- Mfr. Part No.:
- 713-1413/037-000
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Series | 713 | |
| Product Type | Header | |
| Current | 10A | |
| Pitch | 3.5mm | |
| Housing Material | Polyphthalamide | |
| Number of Contacts | 26 | |
| Number of Rows | 2 | |
| Orientation | Straight | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | Through Hole | |
| Connector System | MCS | |
| Contact Material | Electrolytic Copper | |
| Contact Plating | Tin | |
| Minimum Operating Temperature | 60°C | |
| Termination Type | Solder | |
| Row Pitch | 3.5mm | |
| Maximum Operating Temperature | 100°C | |
| Tail Pin Length | 3.8mm | |
| Contact Gender | Male | |
| Standards/Approvals | RoHS | |
| Voltage | 80 V | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Series 713 | ||
Product Type Header | ||
Current 10A | ||
Pitch 3.5mm | ||
Housing Material Polyphthalamide | ||
Number of Contacts 26 | ||
Number of Rows 2 | ||
Orientation Straight | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type Through Hole | ||
Connector System MCS | ||
Contact Material Electrolytic Copper | ||
Contact Plating Tin | ||
Minimum Operating Temperature 60°C | ||
Termination Type Solder | ||
Row Pitch 3.5mm | ||
Maximum Operating Temperature 100°C | ||
Tail Pin Length 3.8mm | ||
Contact Gender Male | ||
Standards/Approvals RoHS | ||
Voltage 80 V | ||
- COO (Country of Origin):
- PL
The Wago THT Male Header is designed for seamless integration into printed circuit boards, providing robust connectivity options for your electronic projects. With a pin spacing of 3.5 mm, this product ensures a compact footprint while maintaining superior electrical performance and reliability. Manufactured with THT compatible housing, it supports lead free reflow soldering, making it an eco conscious choice for modern engineers. The unique coding options protect against mismating, ensuring user safety during installations.
Integrates seamlessly in both horizontal and vertical mounting configurations
Includes anti rotation protection to maintain secure connections
Complies with stringent environmental regulations ensuring RoHS compliance
Lightweight design optimizes installation and reduces overall assembly costs
Locking mechanism for secure plug in connections
Provides flexibility with multiple variants available for configuration
